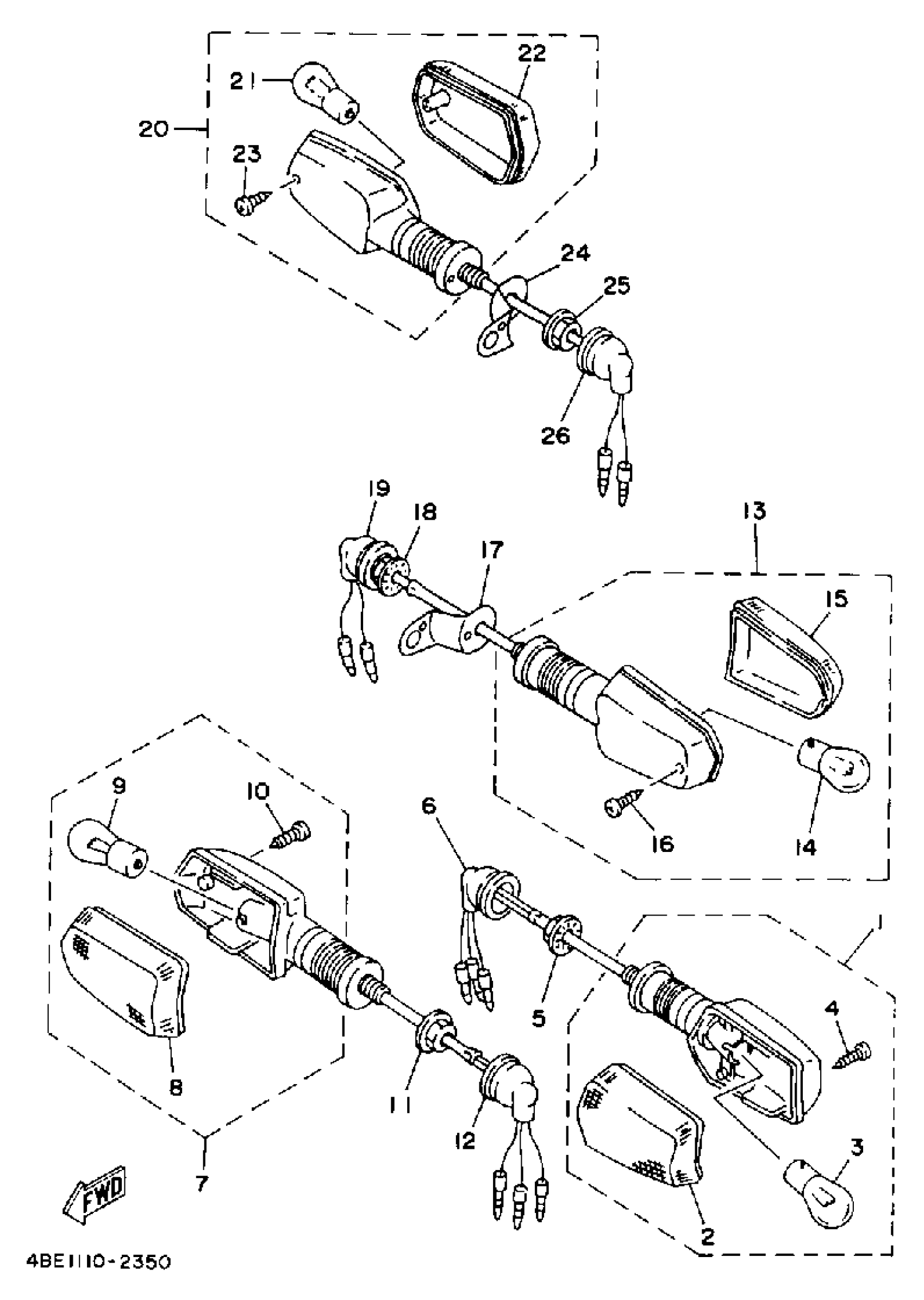

Yamaha XT225DC (SEROW CA) 1992 TURNSIGNAL Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

1UF-83310-00-00

$123.79

2

LENS, FLASHER

51L-83332-01-00

Unavailable

3

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.54

4

SCREW, PAN TAP.2

97707-40520-00

$6.79

5

NUT, HEXAGON SMALL

95317-12700-00

$5.87

6

CAP

18G-83365-00-00

$16.64

7

FRONT FLASHER LIGHT ASSY 2

1UF-83320-00-00

$125.52

8

LENS, FLASHER 2

51L-83342-01-00

$7.38

9

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.54

10

SCREW, PAN TAP.2

97707-40520-00

$6.79

11

NUT, HEXAGON SMALL

95317-12700-00

$5.87

12

CAP

18G-83365-00-00

$16.64

13

REAR FLASHER LIGHT ASSY 1

4BE-83330-00-00

Unavailable

14

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

15

LENS, FLASHER

51L-83332-01-00

Unavailable

16

SCREW, PAN TAP.2

97707-40520-00

$6.79

17

STAY, FLASHER 1

4BE-83368-00-00

Unavailable

18

NUT, HEXAGON SMALL

95317-12700-00

$5.87

19

CAP

10V-83365-01-00

Unavailable

20

REAR FLASHER LIGHT ASSY 2

4BE-83340-00-00

Unavailable

21

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

22

LENS, FLASHER 2

51L-83342-01-00

$7.38

23

SCREW, PAN TAP.2

97707-40520-00

$6.79

24

STAY, FLASHER 2

4BE-83369-00-00

Unavailable

25

NUT, HEXAGON SMALL

95317-12700-00

$5.87

26

CAP

10V-83365-01-00

Unavailable
