1992 Yamaha Serow CA (XT225DC) Handle Switch Lever Diagram

← All diagrams

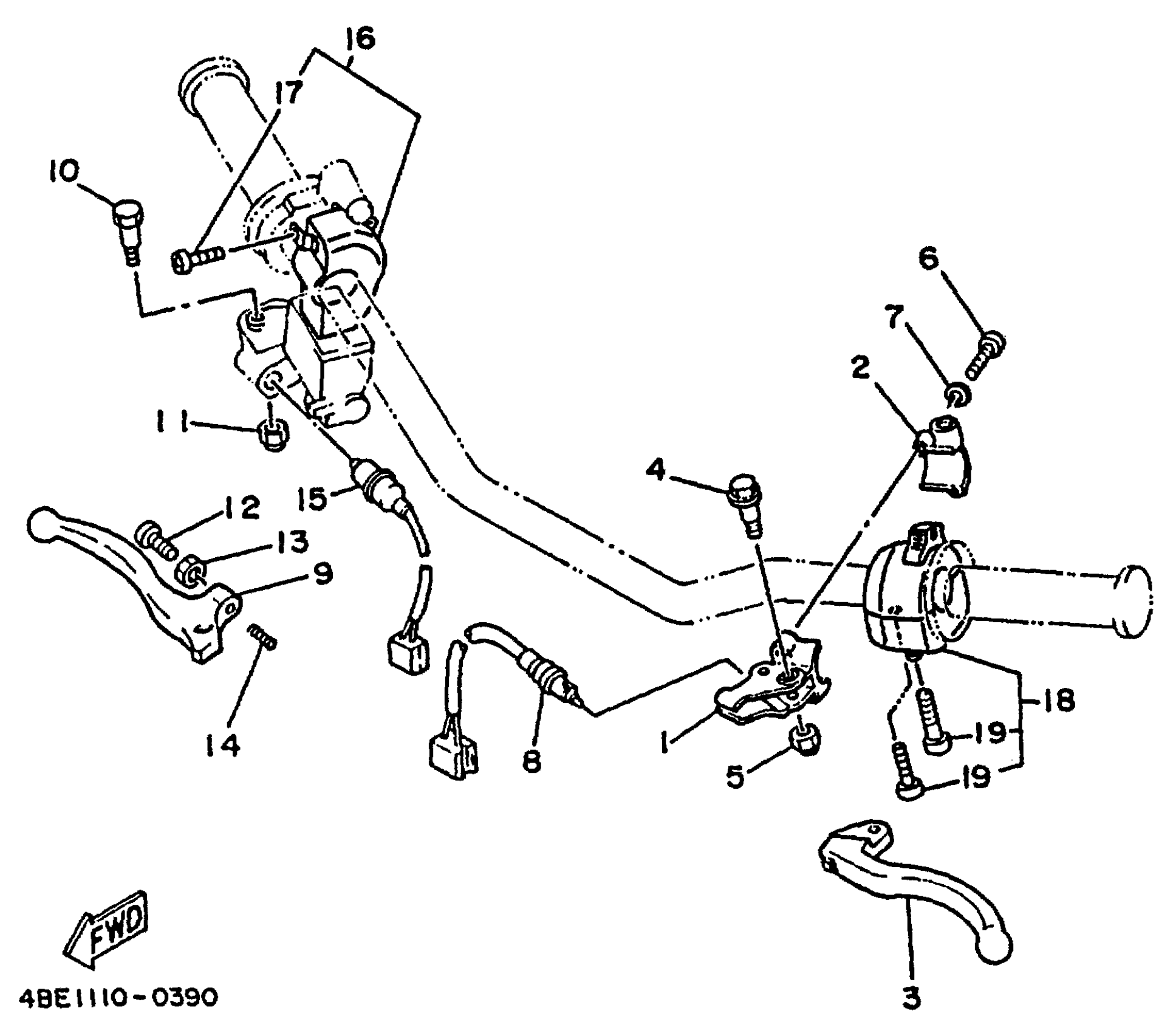

Find the part on the Handle Switch Lever diagram for your 1992 Yamaha Serow CA (XT225DC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha Serow CA (XT225DC) Handle Switch Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOLDER, LEVER 1

1LN-82911-00-00

1

$34.43

In stock

2

HOLDER, LEVER LOWER 1

33G-82913-01-00

1

$16.62

In stock

3

LEVER 1

1NV-83912-02-00

1

$24.94

In stock

4

BOLT (2YK1)

90109-06799-00

1

$4.52

In stock

5

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

6

SCREW, PAN HEAD

98517-05020-00

1

$1.35

In stock

7

WASHER(3SX)

92907-05100-00

1

$6.18

In stock

8

SWITCH

3Y6-82917-00-00

1
Out of stock

9

LEVER 2

3YR-83922-02-00

1

$23.02

In stock

10

BOLT (4L0)

90109-06577-00

1

$5.38

In stock

11

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

12

SCREW (2L0)

90149-06131-00

1

$6.17

In stock

13

NUT HEXAGON 306839270000

90170-06010-00

1

$6.17

In stock

14

1

$6.17

In stock

15

FRONT STOP SWITCH ASSY

3YF-83980-00-00

1

$40.54

In stock

16

SWITCH, HANDLE 2

3LD-83975-11-00

—
Out of stock

17

SCREW, PAN HEAD

98517-05020-00

1

$1.35

In stock

18

SWITCH, HANDLE 3

3RW-83973-11-00

1
Out of stock

19

SCREW, PAN

98517-06030-00

1
Out of stock
