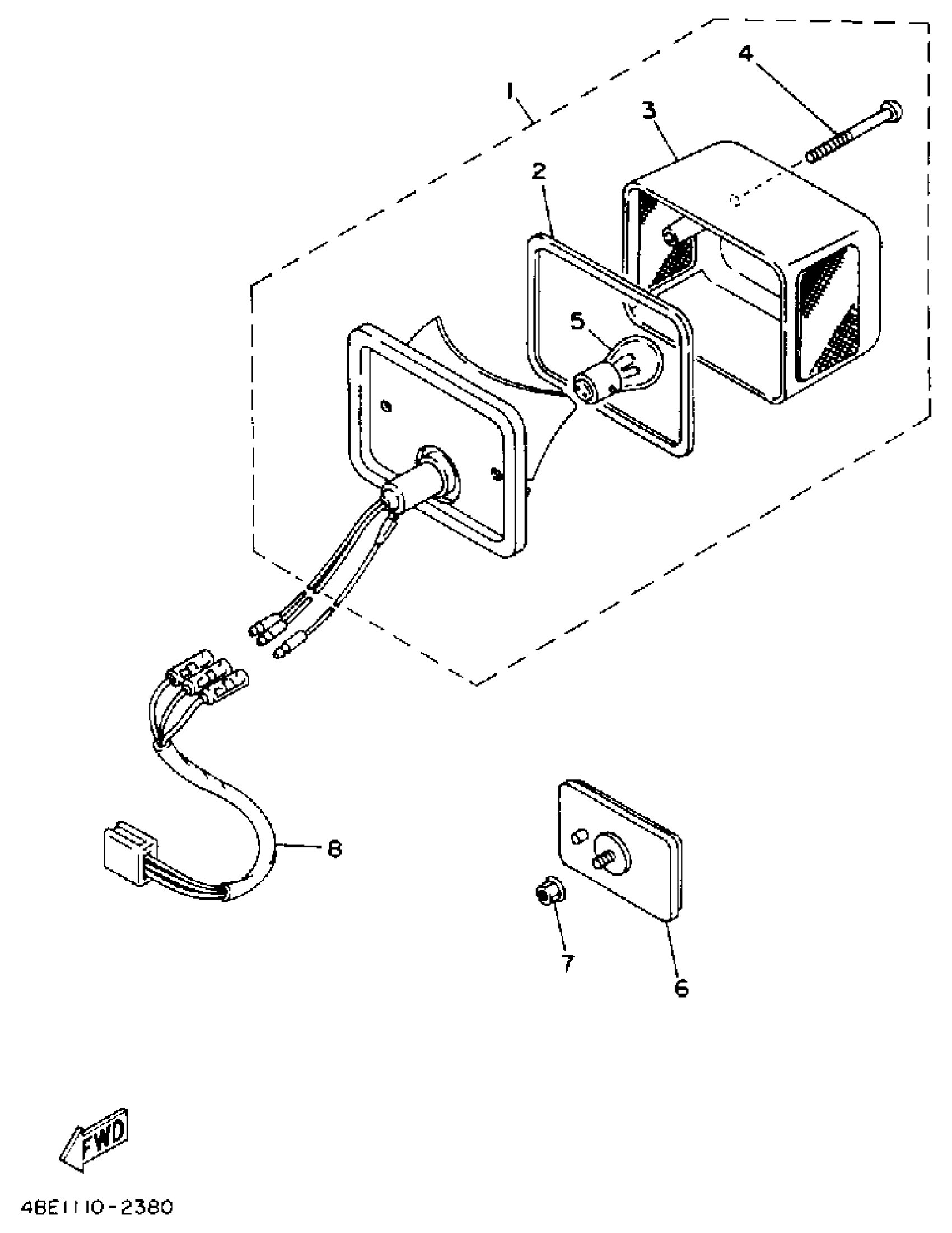

Yamaha XT225DC (SEROW CA) 1992 TAILLIGHT Diagram

#

Description

Price

1

TAILLIGHT UNIT ASSY

1W9-84710-61-00

$92.33

2

GASKET, TAIL LENS

1M1-84523-60-00

$10.29

3

LENS, TAIL LAMP

1M1-84521-60-00

$34.25

4

SCREW, ADJUSTING

5BF-8433E-00-00

$5.70

5

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.34

6

REAR REFLECTOR ASSY

4KM-85130-00-00

$18.99

7

NUT, FLANGE(3GM)

95707-05500-00

$5.76

8

CORD, TAILLIGHT

4BE-84717-00-00

Unavailable
