1982 Yamaha XT200 (XT200J) Stand Footrest Diagram

← All diagrams

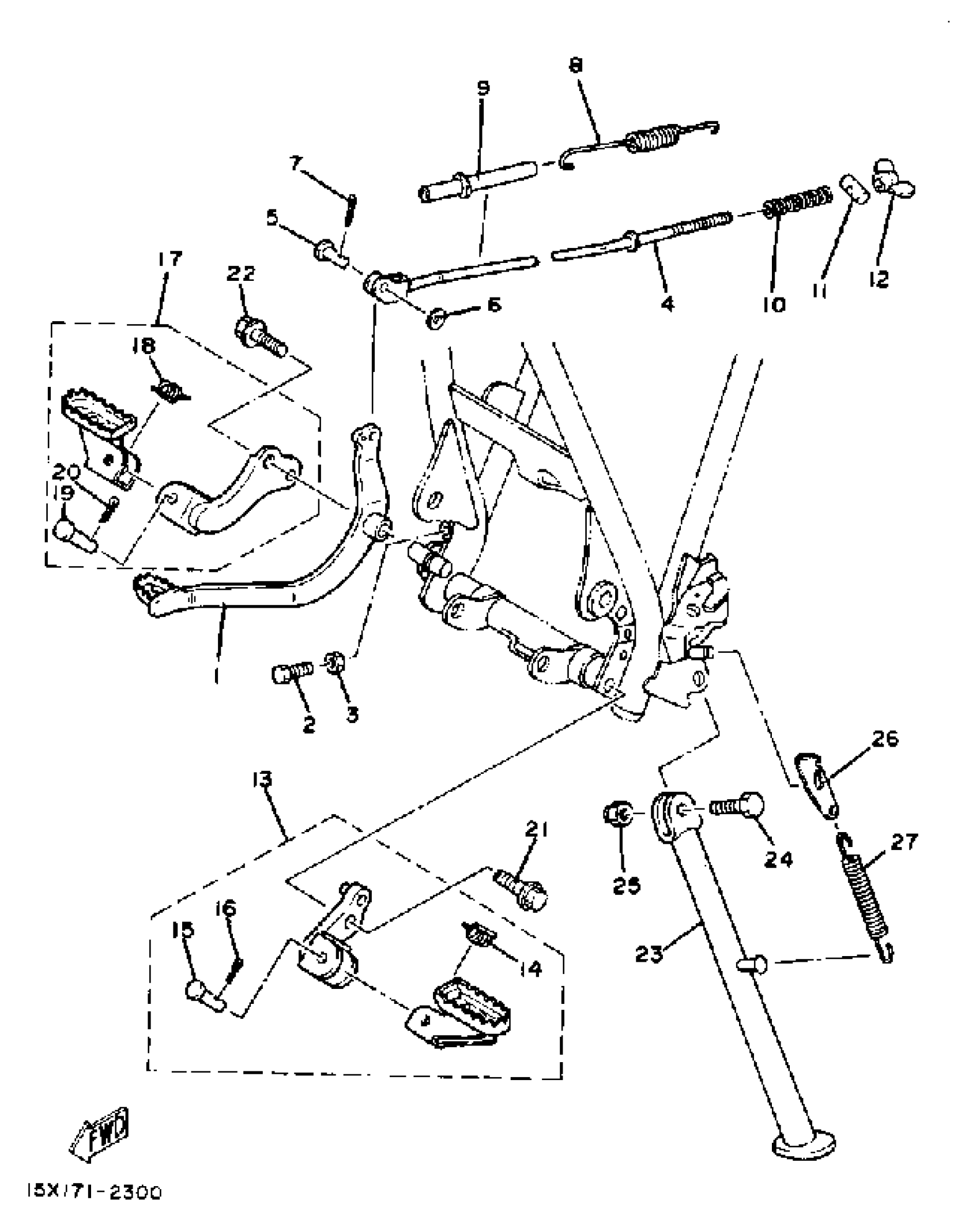

Find the part on the Stand Footrest diagram for your 1982 Yamaha XT200 (XT200J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XT200 (XT200J) Stand Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE

2JX-27211-00-90

1

$60.09

In stock

2

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

3

NUT(650)

95380-06700-00

1

$6.17

In stock

4

ROD, BRAKE

15A-27231-00-00

1
Out of stock

5

PIN, CLEVIS (24X)

90240-06103-00

1

$6.45

In stock

6

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

7

PIN, COTTER

91490-20025-00

1

$1.31

In stock

8

SPRING, TENSION

90506-18289-00

1

$12.03

In stock

9

COVER, SPRING

1M1-27244-00-00

1

$5.93

In stock

10

SPRING, (180-27236-00)

90501-10245-00

1

$6.17

In stock

11

PIN 1562723700

90249-12008-00

1

$4.70

In stock

12

NUT (25K)

90179-06411-00

1

$5.10

In stock

13

FRONT FOOTREST ASSY (RIGHT)

15A-27420-02-90

1

$82.06

In stock

14

1

$3.26

In stock

15

PIN, CLEVIS (2A6)

91701-08038-00

1

$3.91

In stock

16

PIN, COTTER

91490-25020-00

—

$2.94

In stock

17

FRONT FOOTREST ASSY (RIGHT)

15A-27420-02-90

1

$82.06

In stock

18

1

$3.26

In stock

19

PIN, CLEVIS (2A6)

91701-08038-00

1

$3.91

In stock

20

PIN, COTTER

91490-25020-00

—

$2.94

In stock

21

BOLT,FLANGE

95817-12025-00

—

$6.09

In stock

22

BOLT,HEXAGON (447)

90105-10058-00

—
Out of stock

23

STAND SIDE

12V-27311-02-00

1
Out of stock

24

BOLT

90109-10635-00

1
Out of stock

25

NUT, U

90185-10037-00

—

$6.68

In stock

26

LINK, SIDE STAND

15A-27315-00-00

1
Out of stock

27

SPRING, MAIN STAND

4KN-27116-00-00

—

$10.32

In stock
