1982 Yamaha XT200 (XT200J) Side Cover Tool Diagram

← All diagrams

Find the part on the Side Cover Tool diagram for your 1982 Yamaha XT200 (XT200J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

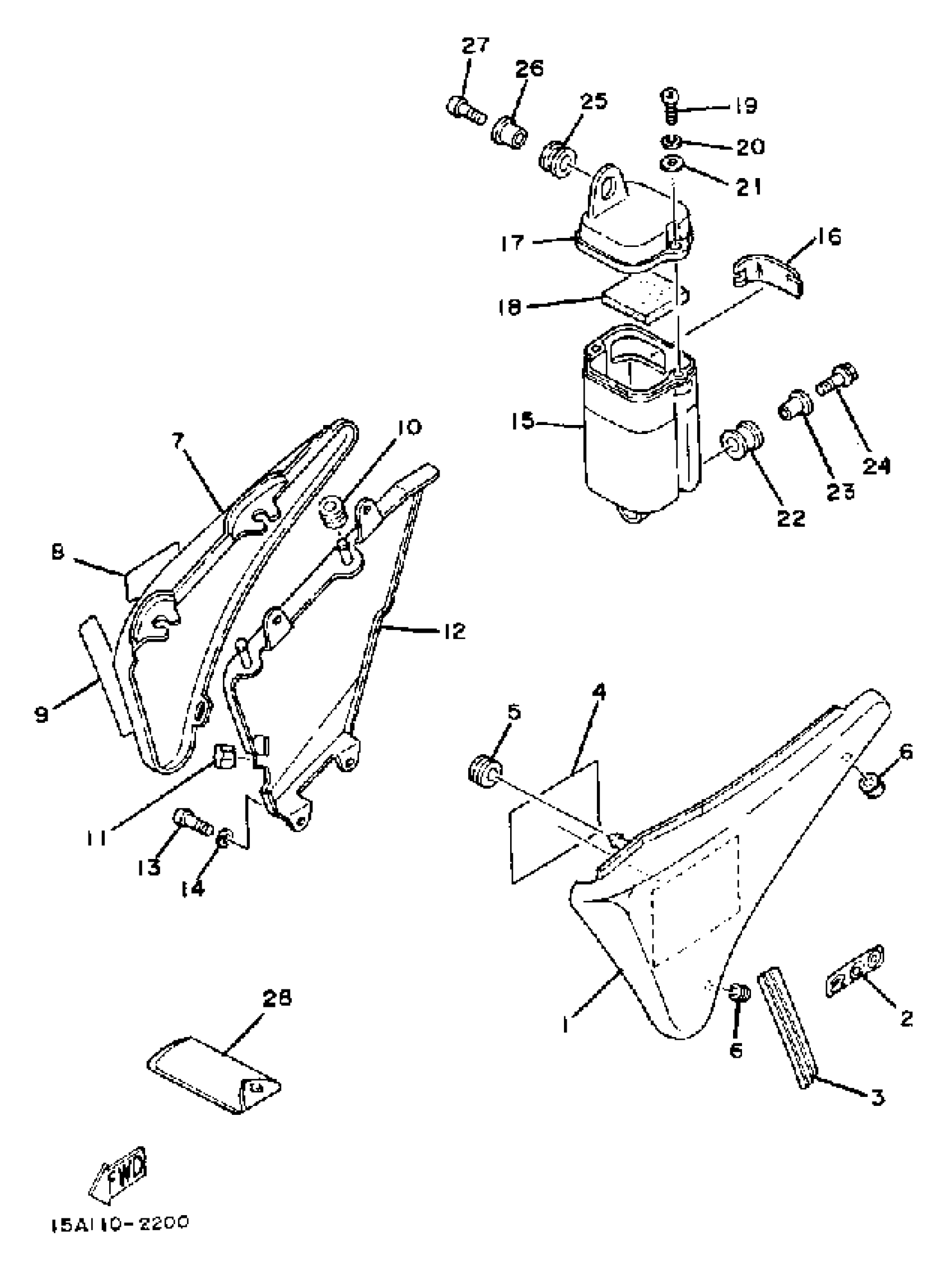

1982 Yamaha XT200 (XT200J) Side Cover Tool Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

15A-21711-00-E1

1
Out of stock

2

EMBLEM 1

15A-21781-00-00

1
Out of stock

3

GRAPHIC

15A-2173E-00-00

1
Out of stock

4

PLATE, SPEC

(15A-21683-01-00)

1
Out of stock

5

GROMMET

90480-13014-00

1

$6.85

In stock

6

GROMMET

90480-12320-00

1

$6.71

In stock

7

COVER, SIDE 2

15A-21721-00-E1

1
Out of stock

8

EMBLEM 1

15A-21781-00-00

1
Out of stock

9

GRAPHIC

15A-2173F-00-00

1
Out of stock

10

DAMPER, SIDE COVER (437)

90480-12053-00

1

$5.78

In stock

11

DAMPER, SIDE COVER

15A-21717-00-00

1
Out of stock

12

PROTECTOR, MUFFLER 1

15A-14718-01-00

1
Out of stock

13

SCREW, PAN

98517-06012-00

1

$3.14

In stock

14

WASHER(6TA)

92907-06600-00

1

$0.78

In stock

15

BOX

15A-2177A-01-00

1
Out of stock

16

LID 2

15A-2177J-00-00

1
Out of stock

17

LID

15A-2177E-00-00

1
Out of stock

18

DAMPER

51L-28371-00-00

1

$7.49

In stock

19

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

20

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

21

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

22

DAMPER

15A-21746-00-00

1
Out of stock

23

COLLAR

90387-06166-00

—
Out of stock

24

BOLT, FLANGE

95817-06030-00

—

$3.91

In stock

25

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock

26

COLLAR

90387-06158-00

—

$6.17

In stock

27

BOLT, FLANGE

95817-06025-00

—

$1.46

In stock

28

TOOL KIT

36X-W2810-00-00

—

$88.60

In stock
