1982 Yamaha XT200 (XT200J) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1982 Yamaha XT200 (XT200J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

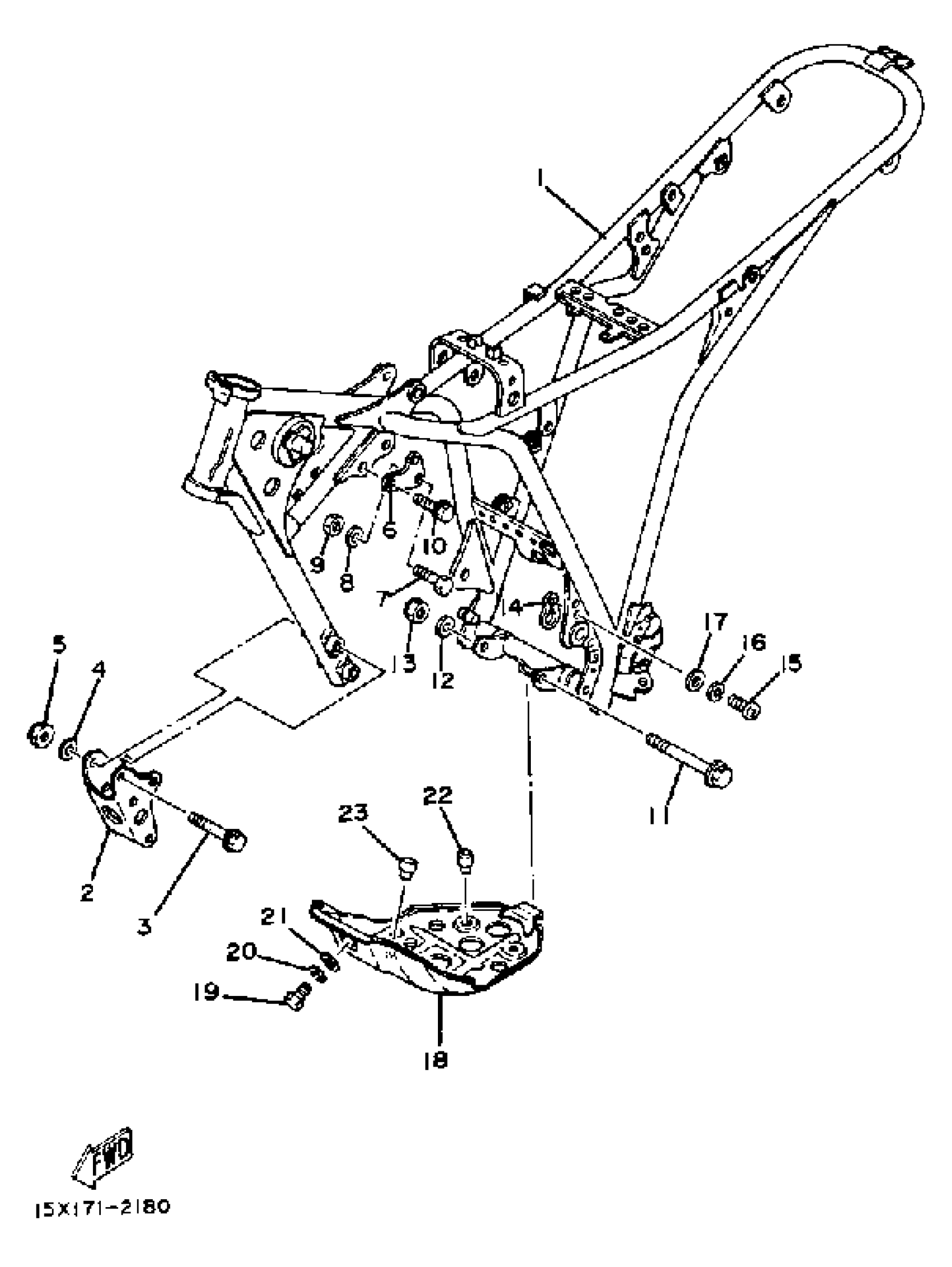

1982 Yamaha XT200 (XT200J) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(21N-21110-00-98)

1
Out of stock

2

STAY, ENGINE 3

15A-21316-00-00

1
Out of stock

3

BOLT, FLANGE

95814-08065-00

1

$3.54

In stock

4

WASHER, PLATE (33N)

90201-094G1-00

1

$6.98

In stock

5

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

6

STAY, ENGINE 2

15A-21315-00-00

1
Out of stock

7

BOLT, FLANGE

95817-08050-00

1

$3.15

In stock

8

WASHER, PLATE (33N)

90201-094G1-00

1

$6.98

In stock

9

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

10

BOLT WASHER BASED (1J7)

90105-08066-00

—

$6.82

In stock

11

BOLT, FLANGE(4EM)

95817-08120-00

1

$3.83

In stock

12

WASHER, PLATE (33N)

90201-094G1-00

1

$6.98

In stock

13

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

14

PLATE

(15A-21329-00-00)

1
Out of stock

15

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

18

PROTECTOR, ENGINE

1RL-21471-00-35

—

$114.45

In stock

19

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

20

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

21

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

22

STOPPER, MAIN STAND

128-27114-00-00

—

$6.62

In stock

23

STOPPER

3Y1-24768-00-00

1
Out of stock
