Partiron

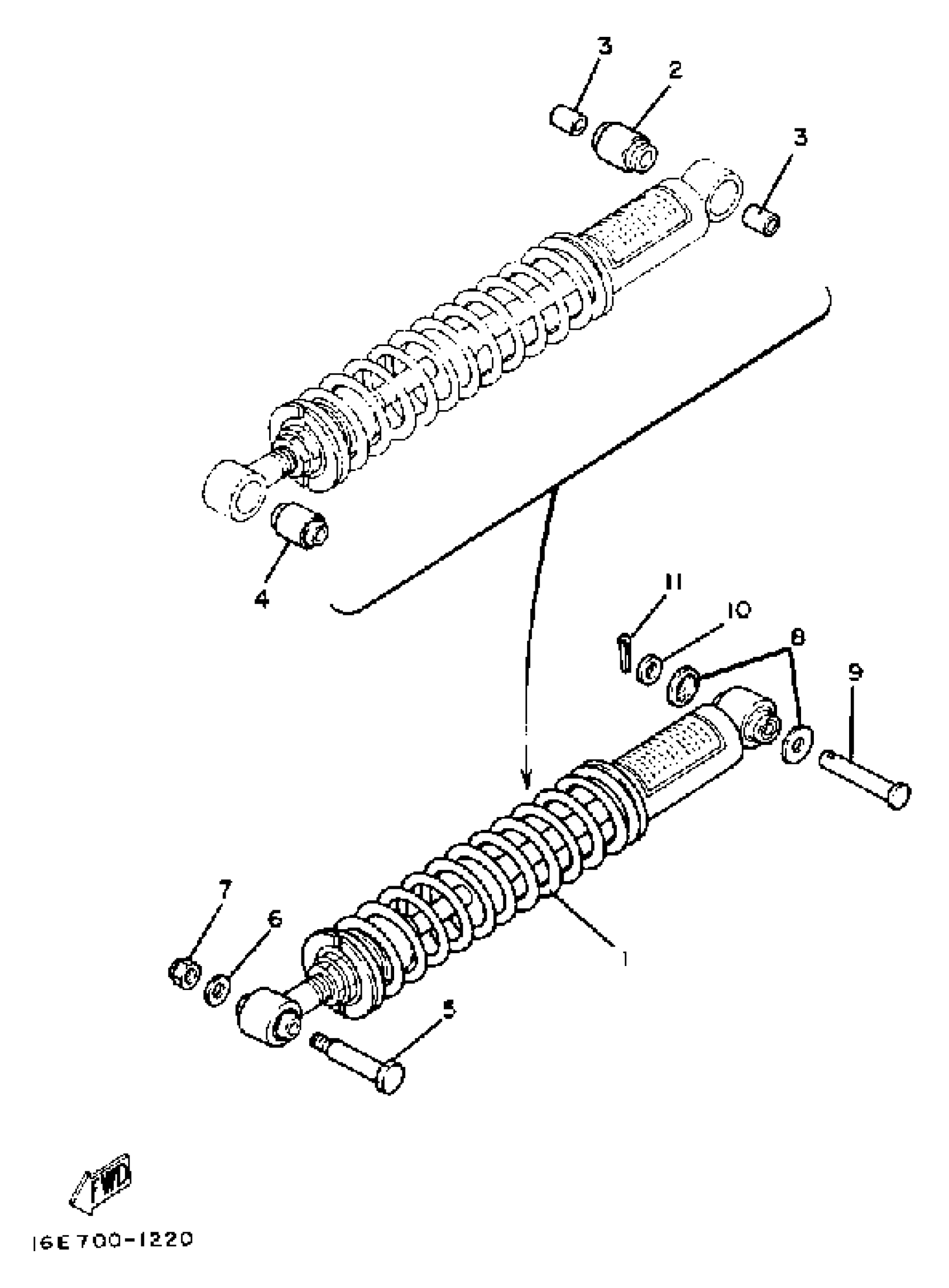

Yamaha XT200J (XT200) 1982 REAR SUSPENSION Diagram

#

Description
Price

1

SHK/ABS ASSEMBLY, REAR

3YU-22210-00-00

Unavailable

2

BUSH, REAR SHOCK ABSORBER

3R4-22226-00-00

Unavailable

3

BUSH, SOLID (1M1)

90380-12051-00

$12.23

4

BUSH, REAR SHOCK ABSORBER

1YW-22216-00-00

Unavailable

5

BOLT (1M1)

90109-10453-00

Unavailable

6

WASHER, PLATE (26H)

90201-102G9-00

$5.96

7

NUT, U

95617-10100-00

$5.76

8

COVER, THRUST

1W1-22128-00-00

$16.83

9

PIN, CLEVIS (10V)

90240-12092-00

$7.32

10

WASHER, PLATE(663)

92990-12600-00

$6.22

11

PIN, COTTER

91490-30030-00

$6.88
