1982 Yamaha XT200 (XT200J) Handlebar Cable Diagram

← All diagrams

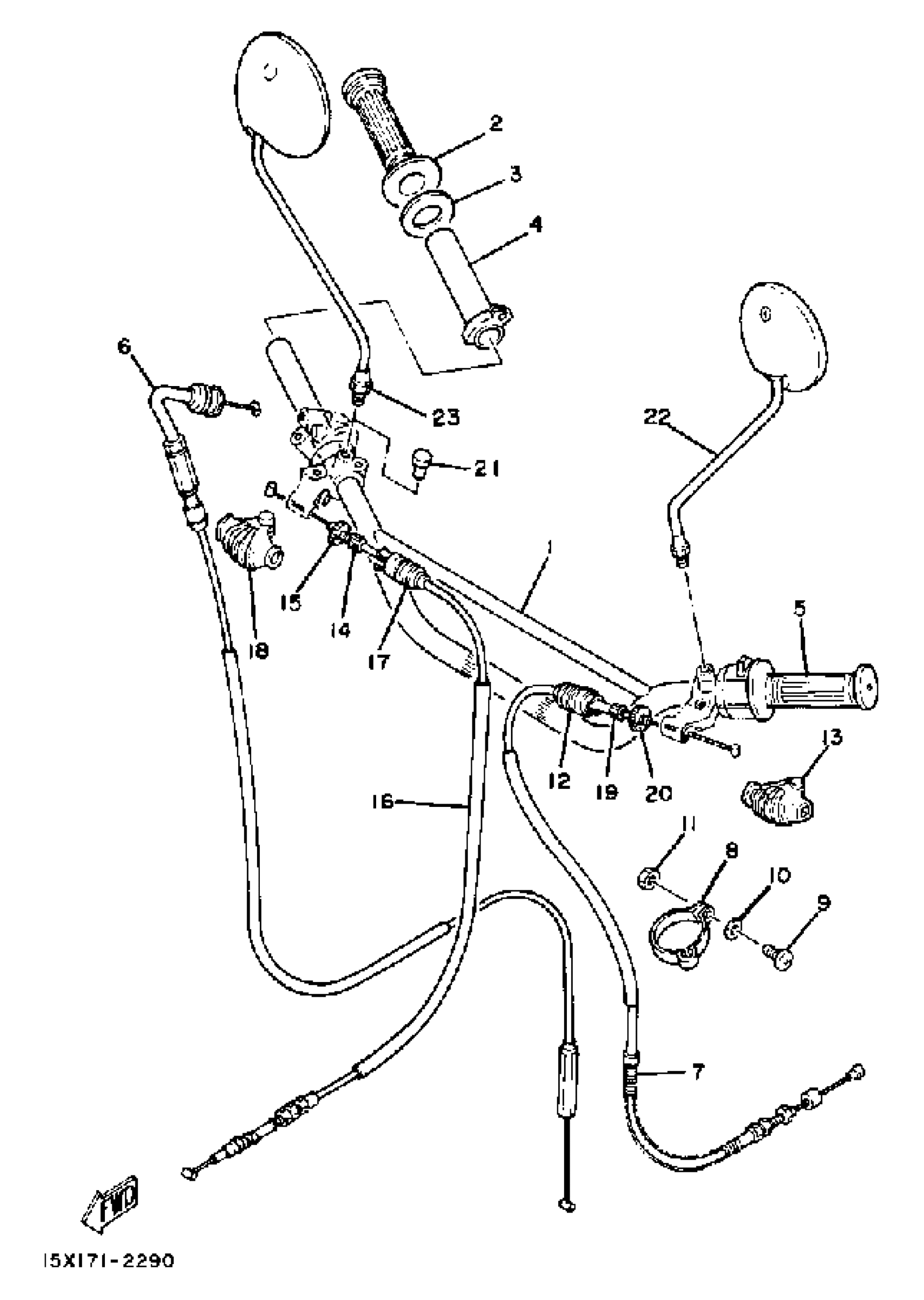

Find the part on the Handlebar Cable diagram for your 1982 Yamaha XT200 (XT200J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XT200 (XT200J) Handlebar Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLE

3G7-26111-00-00

—
Out of stock

2

GRIP (R.H)

1A0-26242-01-00

1
Out of stock

3

RING, LEAF

1M1-26249-01-00

1
Out of stock

4

TUBE, GUIDE.

434-26243-00-00

1
Out of stock

5

GRIP, HANDLE (L.H)

1E6-26241-00-00

1
Out of stock

6

CABLE, THROTTLE 1

15A-26311-00-00

—

$67.03

In stock

7

CABLE, CLUTCH

15A-26335-00-00

1
Out of stock

8

BAND

3Y1-26397-00-00

1
Out of stock

9

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

10

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

11

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

12

BOOT, WIRE

1E6-26342-00-00

1

$26.82

In stock

13

COVER, LEVER

1E6-26372-00-00

1

$19.91

In stock

14

BOLT

90123-08002-00

1

$8.93

In stock

15

NUT

90179-08030-00

1

$3.78

In stock

16

CABLE, BRAKE

15A-26341-00-00

1
Out of stock

17

BOOT, WIRE

1E6-26342-00-00

1

$26.82

In stock

18

COVER, LEVER

1E6-26372-00-00

1

$19.91

In stock

19

BOLT

90123-08002-00

1

$8.93

In stock

20

NUT

90179-08030-00

1

$3.78

In stock

21

PLUG (341-26329-00)

90338-09012-00

—

$7.26

In stock

22

MIRROR ASSY., 2

5Y1-26290-11-00

—
Out of stock

23

—

$45.60

In stock
