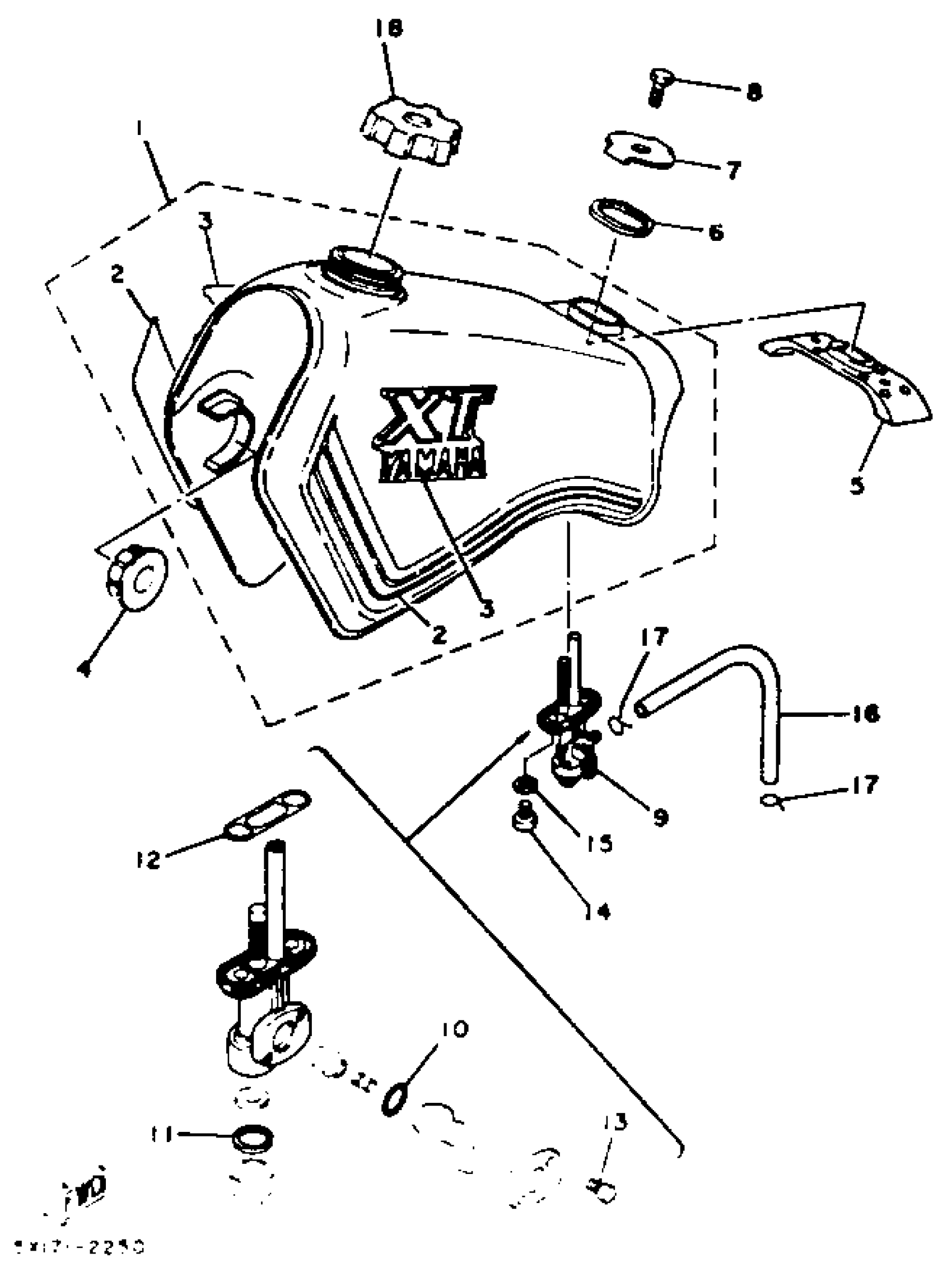

Find the part on the Fuel Tank diagram for your 1982 Yamaha XT125 (XT125J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XT125 (XT125J) Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

15A-24110-00-05

1
Out of stock

2

. GRAPHIC SET

15A-24240-00-00

1
Out of stock

3

. EMBLEM 1

3Y1-24161-20-00

1
Out of stock

4

DAMPER, LOCATING

4H7-24181-00-00

1

$5.49

In stock

5

DAMPER, LOCATING 2

15A-24182-00-00

1
Out of stock

6

DAMPER, LOCATING 3

3Y6-24183-00-00

1
Out of stock

7

WASHER, SPECIAL

11H-24186-00-00

1
Out of stock

8

BOLT, HEXAGON

97017-08025-00

1

$7.46

In stock

9

FUEL COCK ASSY 1

23F-24500-20-00

1

$35.96

In stock

10

O-RING

4X8-24534-00-00

1

$12.28

In stock

11

GASKET

4X8-24565-10-00

1
Out of stock

12

O-RING

4X8-24512-00-00

1
Out of stock

13

SCREW

4X8-24535-00-00

1
Out of stock

14

SCREW 256241430000

90149-06011-00

1

$1.58

In stock

15

WASHER, PLATE(3MB)

90202-05187-00

1

$1.32

In stock

16

HOSE (L200)

90445-10752-00

—

$3.88

In stock

17

CLIP

90467-090A2-00

—

$2.51

In stock

18

CAP ASSY

3Y1-24610-01-00

—
Out of stock
