1982 Yamaha XT125 (XT125J) Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1982 Yamaha XT125 (XT125J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

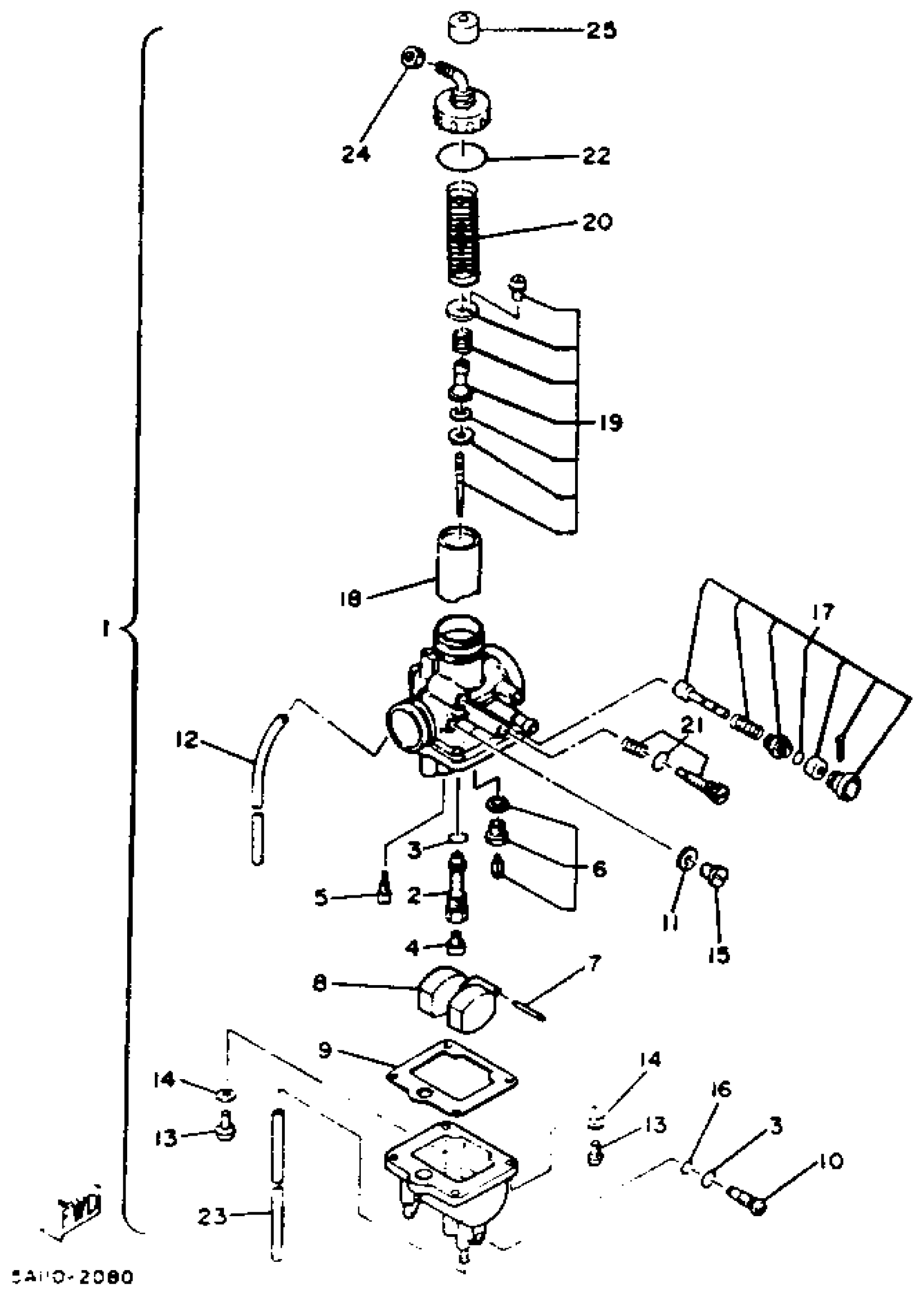

1982 Yamaha XT125 (XT125J) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1 (15E-14301-00)

15E-14301-01-00

1
Out of stock

2

. NOZZLE, MAIN

15E-14341-00-00

1
Out of stock

3

GASKET

360-24512-00-00

1

$8.52

In stock

4

JET, MAIN (# 118)

288-14343-59-00

1

$10.06

In stock

5

. JET, PILOT #40 (#040)

5H0-14342-20-00

1
Out of stock

6

VALVE SEAT SET

12T-W1496-00-00

1

$82.54

In stock

7

. PIN, FLOAT

647-14386-10-00

1
Out of stock

8

. FLOAT

54G-14385-00-00

1
Out of stock

9

GASKET, FLOAT CHAMBER

5H0-14384-00-00

—
Out of stock

10

. PLUG, SCREW

5H0-14115-00-00

1
Out of stock

11

GASKET

5H0-14126-00-00

1
Out of stock

12

. PIPE 1

5H0-14348-00-00

1
Out of stock

13

SCREW, PAN HEAD(GA5)

98580-04014-00

1

$2.78

In stock

14

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

15

SCREW

5H0-14991-00-00

1
Out of stock

16

O-RING

5H0-14397-00-00

—
Out of stock

17

PLUNGER, STARTER

15A-14371-01-00

1
Out of stock

18

. VALVE, THROTTLE 1

15E-14312-22-00

1
Out of stock

19

NEEDLE SET

(15E-1490J-00-00)

1
Out of stock

20

SPRING,THRTL VALVE

15E-14331-00-00

1
Out of stock

21

THROTTLE SCREW SET

4WP-14103-00-00

1
Out of stock

22

. O-RING

1J2-14147-00-00

1
Out of stock

23

. PIPE

36F-14396-00-00

1
Out of stock

24

NUT, CABLE ADJUSTING

85L-14161-00-00

1
Out of stock

25

. CAP

15A-14118-00-00

1
Out of stock
