1982 Yamaha XT125 (XT125J) Clutch Diagram

← All diagrams

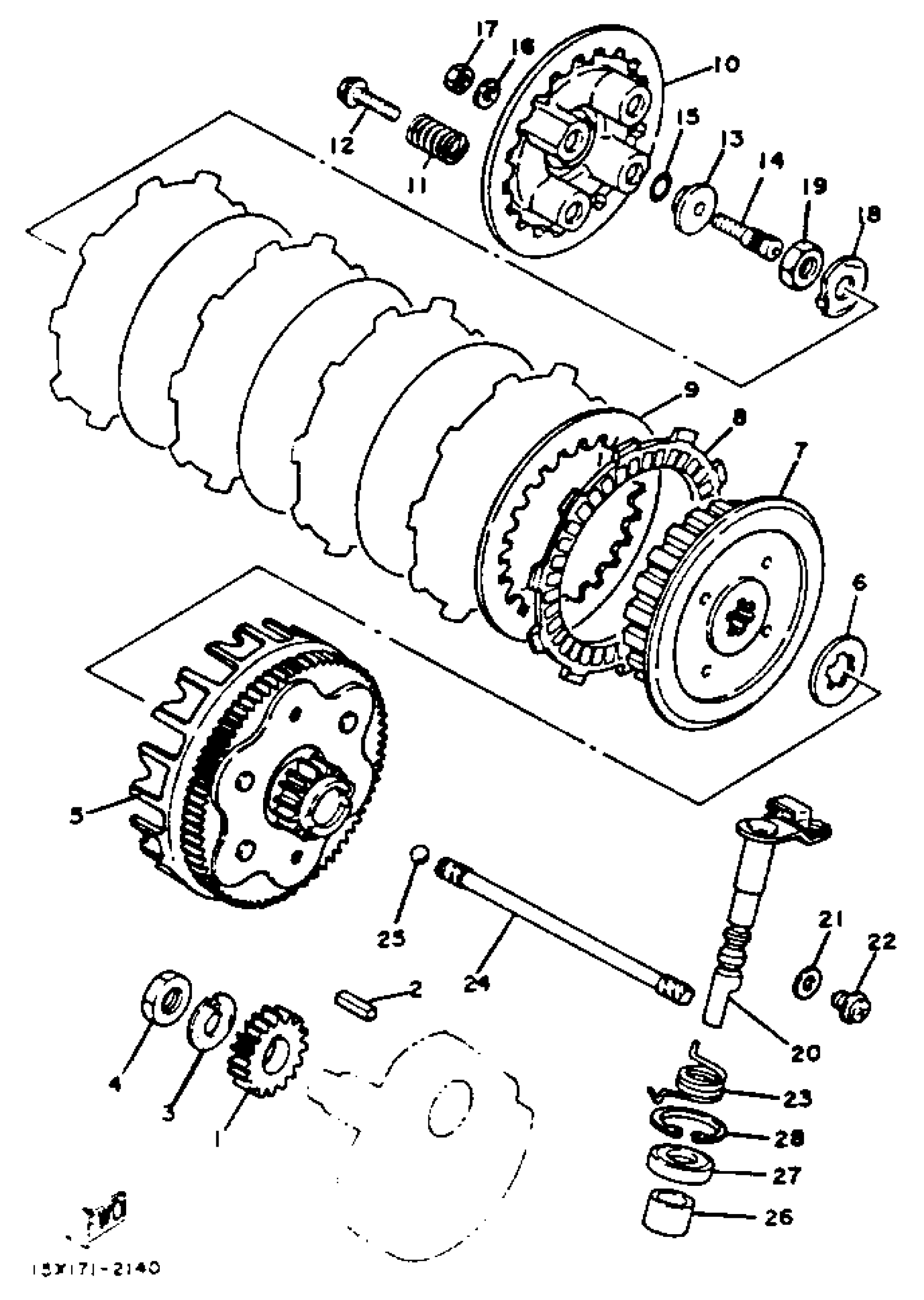

Find the part on the Clutch diagram for your 1982 Yamaha XT125 (XT125J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XT125 (XT125J) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, PRIMARY DRIVE

5H0-16111-00-00

—

$38.65

In stock

2

KEY, STRAIGHT (5H0)

90282-05043-00

1

$8.26

In stock

3

WASHER, LOCK (15Y)

90215-14205-00

1

$4.70

In stock

4

NUT (5H0)

90170-14284-00

1

$7.92

In stock

5

PRIMARY DRIVEN GEAR COMP. 73/17 (15A-16150-00-00)

3NS-16150-00-00

1
Out of stock

6

PLATE, THRUST 1

5H0-16154-00-00

—
Out of stock

7

BOSS, CLUTCH

36X-16371-00-00

—
Out of stock

8

PLATE, FRICTION

537-16321-00-00

1

$15.04

In stock

9

PLATE, CLUTCH 1

336-16324-10-00

1

$17.51

In stock

10

PLATE, PRESSURE 1

5N0-16351-00-00

1
Out of stock

11

SPRING, COMPRESSION (5H0)

90501-23630-00

1

$4.29

In stock

12

SCREW, WITH WASHER (537)

90159-05011-00

1

$2.45

In stock

13

PLATE, PUSH

1W1-16358-01-00

1

$20.06

In stock

14

ROD, PUSH 1

2JX-16356-00-00

—

$33.31

In stock

15

O-RING (2H7)

93210-48364-00

1

$6.17

In stock

16

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

17

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

18

WASHER, LOCK (25G)

90215-14186-00

—

$7.83

In stock

19

NUT (5H0)

90170-14284-00

1

$7.92

In stock

20

PUSH LEVER ASSEMBLY

1KH-16380-01-00

1
Out of stock

21

WASHER, PLATE 3411117500

90201-08087-00

—

$3.13

In stock

22

SCREW 425163430000

90149-08067-00

—

$4.54

In stock

23

SPRING, TORSION (15A)

90508-18537-00

—

$6.08

In stock

24

ROD, PUSH 2

5H0-16357-00-00

—

$31.57

In stock

25

BALL

93505-16006-00

—

$2.22

In stock

26

BUSH (5H0)

90386-14103-00

—

$9.29

In stock

27

OIL SEAL (3Y1)

93102-14209-00

—

$9.77

In stock

28

CIRCLIP (3Y1)

93420-28055-00

—

$6.89

In stock
