1982 Yamaha XT125 (XT125J) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1982 Yamaha XT125 (XT125J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

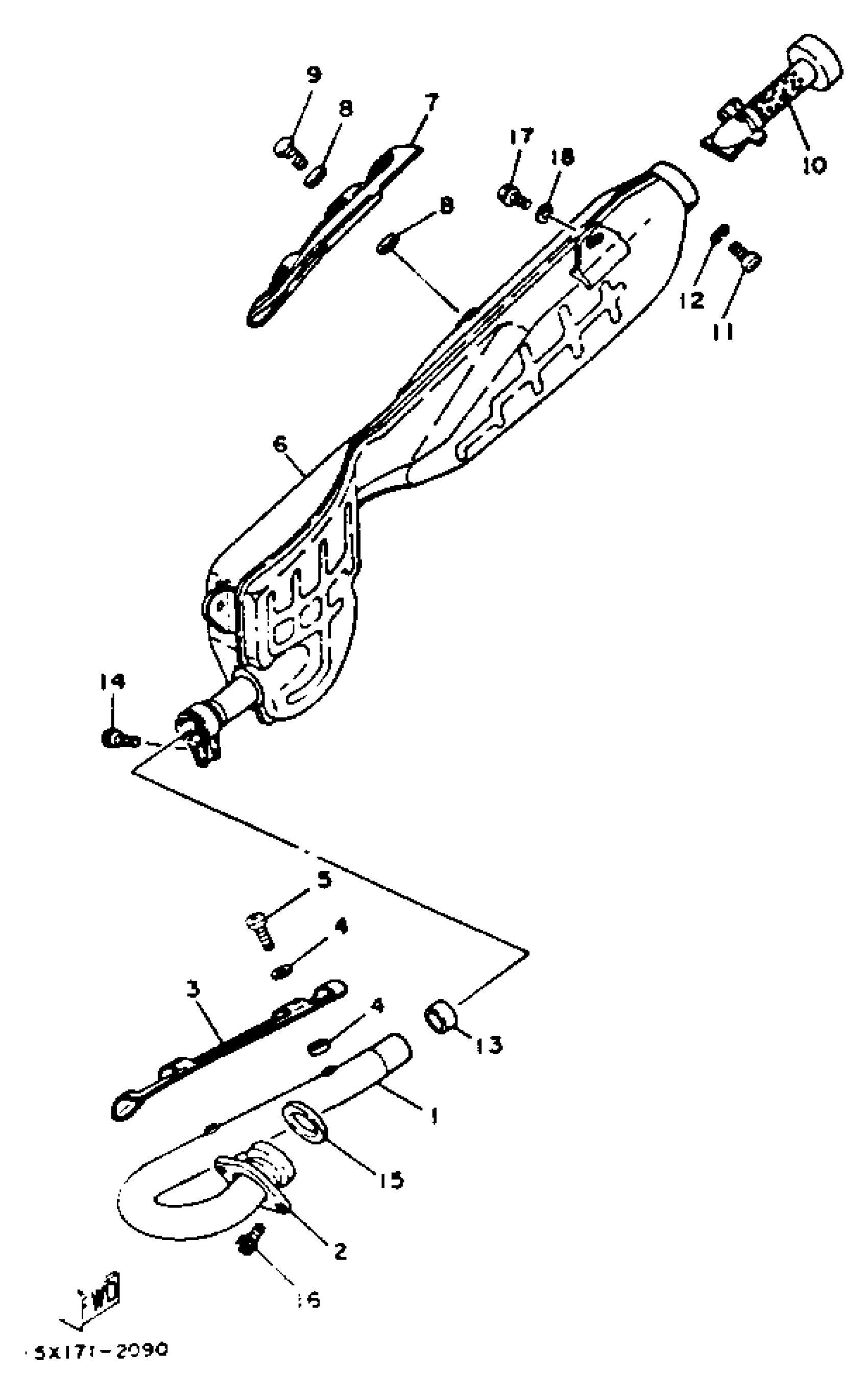

1982 Yamaha XT125 (XT125J) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE, EXHAUST L

15A-14611-60-00

1
Out of stock

2

NUT, RING

5H0-14612-01-00

1

$13.98

In stock

3

PROTECTOR, EXHAUST PIPE

15A-14628-00-00

1
Out of stock

4

WASHER, PLATE(3MB)

90202-05187-00

1

$1.32

In stock

5

SCREW, BINDING

98907-06008-00

1

$6.68

In stock

6

MUFFLER L

15A-14711-00-00

1
Out of stock

7

PROTECTER, MUFFLER 2

15A-14728-00-00

1
Out of stock

8

WASHER, PLATE(3MB)

90202-05187-00

1

$1.32

In stock

9

SCREW, BINDING

98907-06008-00

1

$6.68

In stock

10

PIPE, OUTLET

15E-14752-00-00

1
Out of stock

11

SCREW, PAN HEAD(6A3)

97885-06008-00

1

$1.07

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

GASKET, MUFFLER

4DN-14714-01-00

1

$60.45

In stock

14

BOLT, SOCKET

91317-08020-00

1

$2.34

In stock

15

GASKET, EXHAUST PIPE

4BE-14613-00-00

1

$9.28

In stock

16

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

17

BOLT, FLANGE(JN5)

95817-08016-00

—

$4.12

In stock

18

WASHER (853)

90201-08326-00

—

$6.17

In stock
