1982 Yamaha XT125 (XT125J) Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 1982 Yamaha XT125 (XT125J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

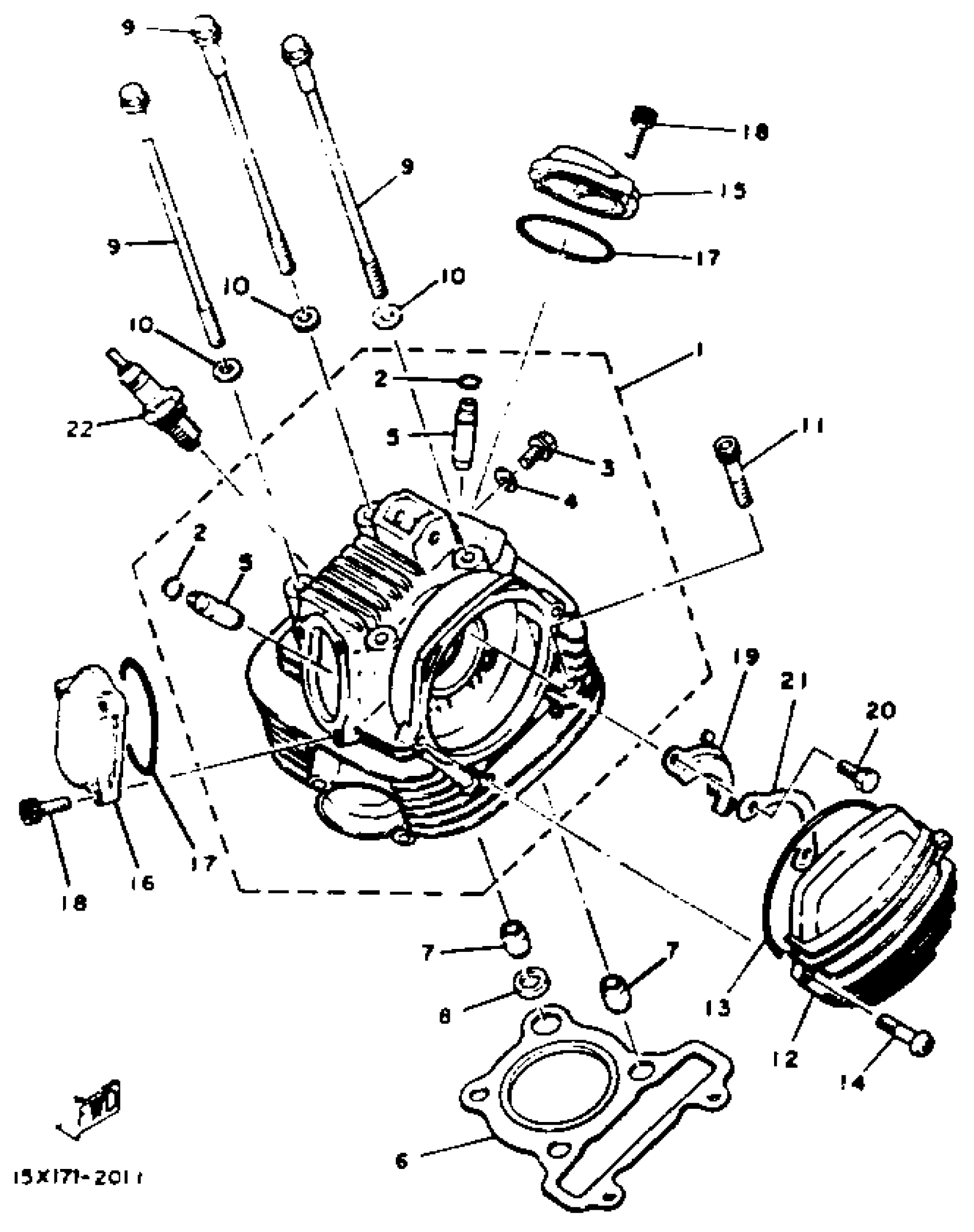

1982 Yamaha XT125 (XT125J) Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER HEAD ASY

15E-11102-03-00

1
Out of stock

2

CIRCLIP (4G0)

93440-10085-00

1

$6.17

In stock

3

SCREW

90153-06029-00

1

$8.06

In stock

4

GASKET 256113960000

90430-06014-00

—

$7.23

In stock

5

GUIDE, INTAKE VALVE

5H0-11133-11-00

1

$61.46

In stock

6

GASKET, CYLINDER HEAD 1

3NS-11181-00-00

—

$34.25

In stock

7

PIN, DOWEL

99530-14016-00

1

$3.20

In stock

8

GASKET (1L9)

90430-14131-00

1

$5.32

In stock

9

BOLT, FLANGE

90105-08160-00

1

$6.38

In stock

10

WASHER, PLATE

90201-080L7-00

1

$3.42

In stock

11

BOLT, SOCKET

91317-08045-00

—

$6.82

In stock

12

COVER, CYLINDER HEAD SIDE 1

15A-11185-00-00

1

$62.37

In stock

13

O-RING (5H0)

93211-05471-00

1

$11.63

In stock

14

SCREW, PAN

98517-06020-00

1
Out of stock

15

COVER, CYLINDER HEAD SIDE 2

15A-11186-00-00

—

$33.25

In stock

16

COVER, CYLINDER HEAD SIDE 3

15A-11187-00-00

—

$22.15

In stock

17

O-RING

93210-57634-00

—

$12.58

In stock

18

BOLT,SOCKET

91317-06018-00

—

$6.17

In stock

19

PLATE

5H0-1111F-00-00

—
Out of stock

20

BOLT (661)

97013-06012-00

—

$4.71

In stock

21

WASHER, LOCK (5H0)

90215-06184-00

—
Out of stock

22

D8EA NGK SPLUG 10PK

D8E-A0000-00-00

1

$3.92

In stock
