1982 Yamaha XT125 (XT125J) Crankshaft - Piston Diagram

← All diagrams

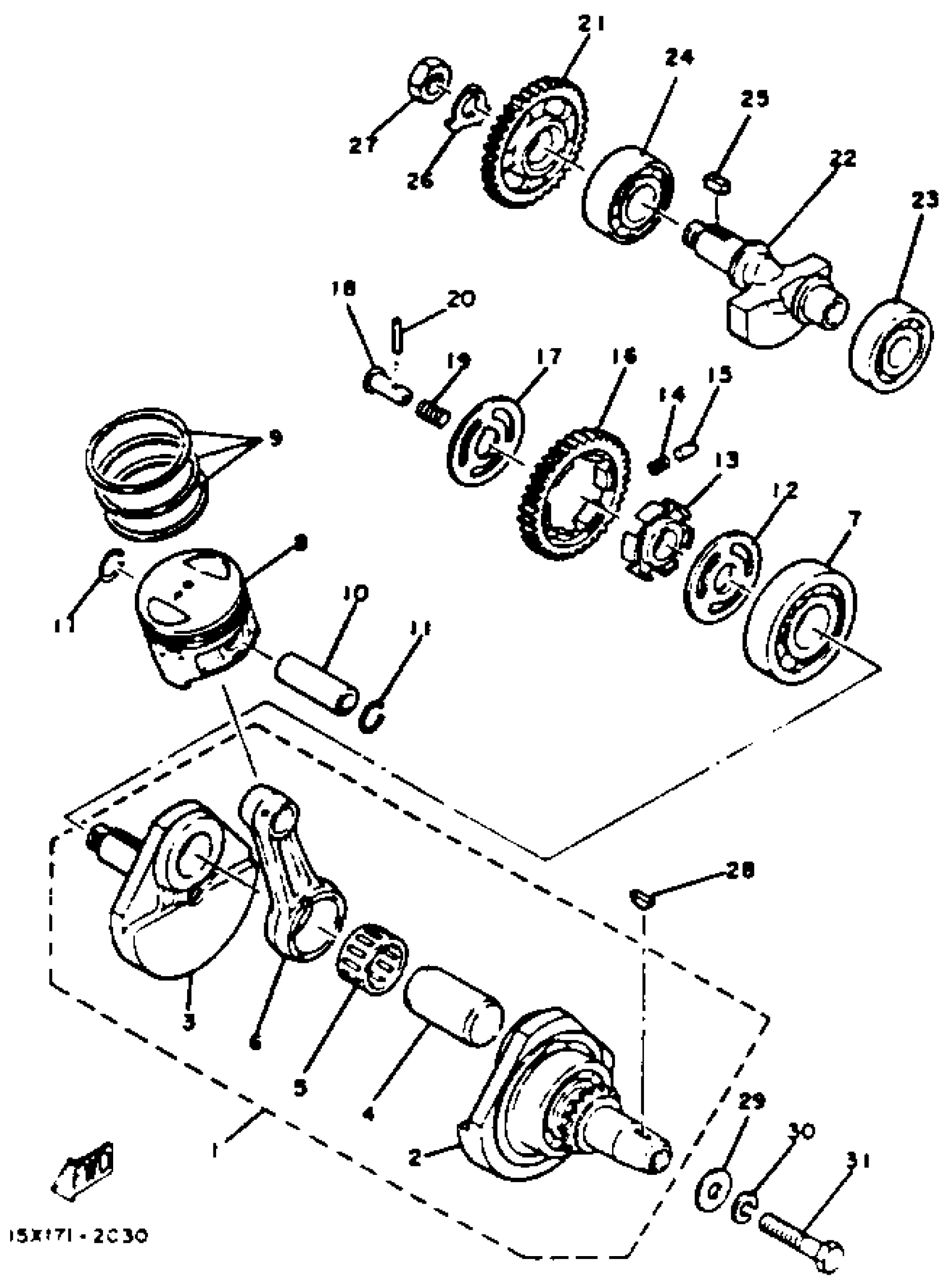

Find the part on the Crankshaft - Piston diagram for your 1982 Yamaha XT125 (XT125J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XT125 (XT125J) Crankshaft - Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNAVAILABLE IN PRICE BOOK

15-E1140-00-00

1
Out of stock

2

. UNAVAILABLE IN PRICE BOOK

15-E1141-20-90

1
Out of stock

3

. CRANK 2

5N0-11422-00-00

1
Out of stock

4

PIN, CRANK 1

5H0-11681-00-00

—
Out of stock

5

1

$57.35

In stock

6

ROD, CONNECTING

(5N0-11651-00-00)

1
Out of stock

7

BRG,R-B 6306 72MM 351G KY

93306-30615-00

1

$72.96

In stock

8

PISTON (STD)

25A-11631-00-Y0

—

$77.80

In stock

8

PISTON (2ND O/S)

25A-11636-00-00

—

$60.83

In stock

8

PISTON 4 O/S 1.00

25A-11638-00-00

1
Out of stock

9

PISTON RING SET (STD)

4GA-11603-00-00

1
Out of stock

9

—

$36.71

In stock

9

PISTON RING SET (1.00MM O/S)

4GA-11607-00-00

—
Out of stock

10

PIN, PISTON

5N0-11633-00-00

1

$17.25

In stock

11

CIRCLIP (4G0)

93450-16068-00

1

$6.00

In stock

12

WASHER, PLATE (5H0)

90201-201E4-00

—

$10.17

In stock

13

BOSS, BUFFER

5H0-11496-00-00

—

$107.09

In stock

14

—

$7.25

In stock

15

PIN, DOWEL

93605-10090-00

—

$5.41

In stock

16

GEAR, DRIVE

5H0-11536-00-00

—

$111.60

In stock

17

WASHER, CLAW (5H0)

90214-20023-00

—

$5.65

In stock

18

PIN, CLEVIS (5H0)

90240-07083-00

—

$12.95

In stock

19

SPRING, COMPRESSION (5H0)

90501-07629-00

—

$6.86

In stock

20

PIN, DOWEL (5H0)

93602-13177-00

—

$2.13

In stock

21

GEAR, BALANCE WT

5H0-11531-00-00

—
Out of stock

22

WEIGHT 1

15E-11454-00-00

1
Out of stock

23

BEARING

93306-30443-00

—

$56.87

In stock

24

BEARING

93306-30443-00

—

$56.87

In stock

25

KEY, STRAIGHT(34K)

90282-05065-00

—

$8.80

In stock

26

WASHER, LOCK (15Y)

90215-14205-00

—

$4.70

In stock

27

NUT (5H0)

90170-14284-00

—

$7.92

In stock

28

KEY, WOODRUFF

90280-05001-00

—

$10.68

In stock

29

WASHER, PLATE(52H)

90201-102J5-00

—

$13.94

In stock

30

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

31

BOLT (341)

90101-10188-00

—

$7.72

In stock
