2022 Yamaha XSR700 (XSR700NB) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2022 Yamaha XSR700 (XSR700NB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

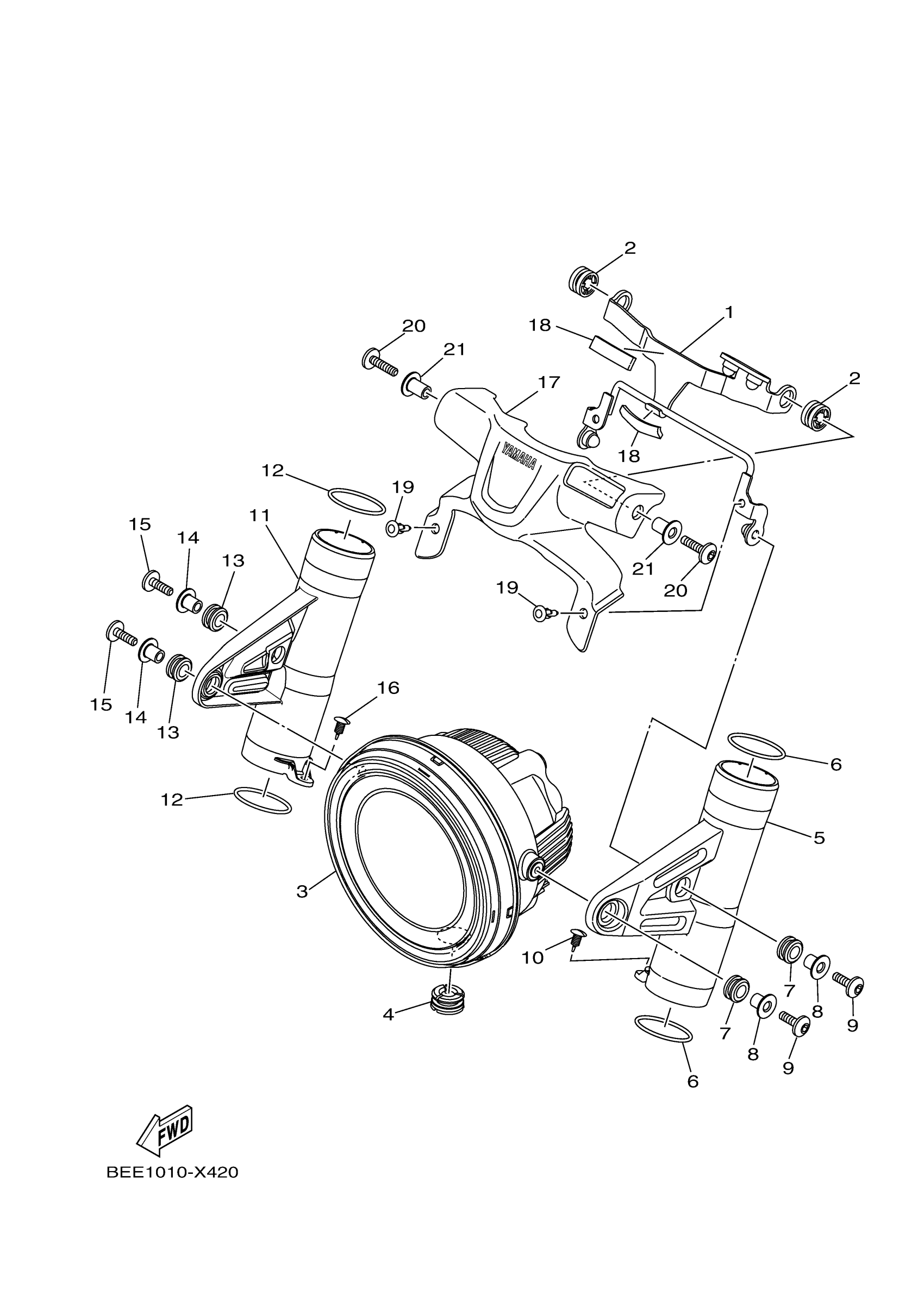

2022 Yamaha XSR700 (XSR700NB) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAY, HEADLIGHT

BEE-F3174-00-00

—

$143.15

In stock

2

DAMPER

4XV-83513-00-00

1

$6.42

In stock

3

HEADLIGHT ASSY

BEA-84300-00-00

1

$600.99

In stock

4

GROMMET

B34-H4354-00-00

1

$20.29

In stock

5

STAY, HEADLIGHT 1

BEE-H4118-00-00

—

$272.20

In stock

6

O-RING

93210-40001-00

1

$4.92

In stock

7

GROMMET

90480-14003-00

1

$6.25

In stock

8

COLLAR

90387-06311-00

—

$4.11

In stock

9

SCREW

90149-06104-00

1

$3.83

In stock

10

RIVET(81E)

90269-05055-00

1

$7.02

In stock

11

STAY, HEADLIGHT 2

BEE-H4119-00-00

—

$213.08

In stock

12

O-RING

93210-40001-00

1

$4.92

In stock

13

GROMMET

90480-14003-00

1

$6.25

In stock

14

COLLAR

90387-06311-00

—

$4.11

In stock

15

SCREW

90149-06104-00

1

$3.83

In stock

16

RIVET(81E)

90269-05055-00

1

$7.02

In stock

17

COVER

BEE-H4396-00-00

—

$157.60

In stock

18

DAMPER, PLATE 2

5VY-2414J-00-00

1

$0.78

In stock

19

RIVET

90269-06008-00

—

$7.40

In stock

20

BOLT,HEX. SOCKET BUTTON

90111-06156-00

—

$1.58

In stock

21

COLLAR

90387-06352-00

1
Out of stock
