2022 Yamaha XSR700 (XSR700NB) Electrical 1 Diagram

← All diagrams

Find the part on the Electrical 1 diagram for your 2022 Yamaha XSR700 (XSR700NB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

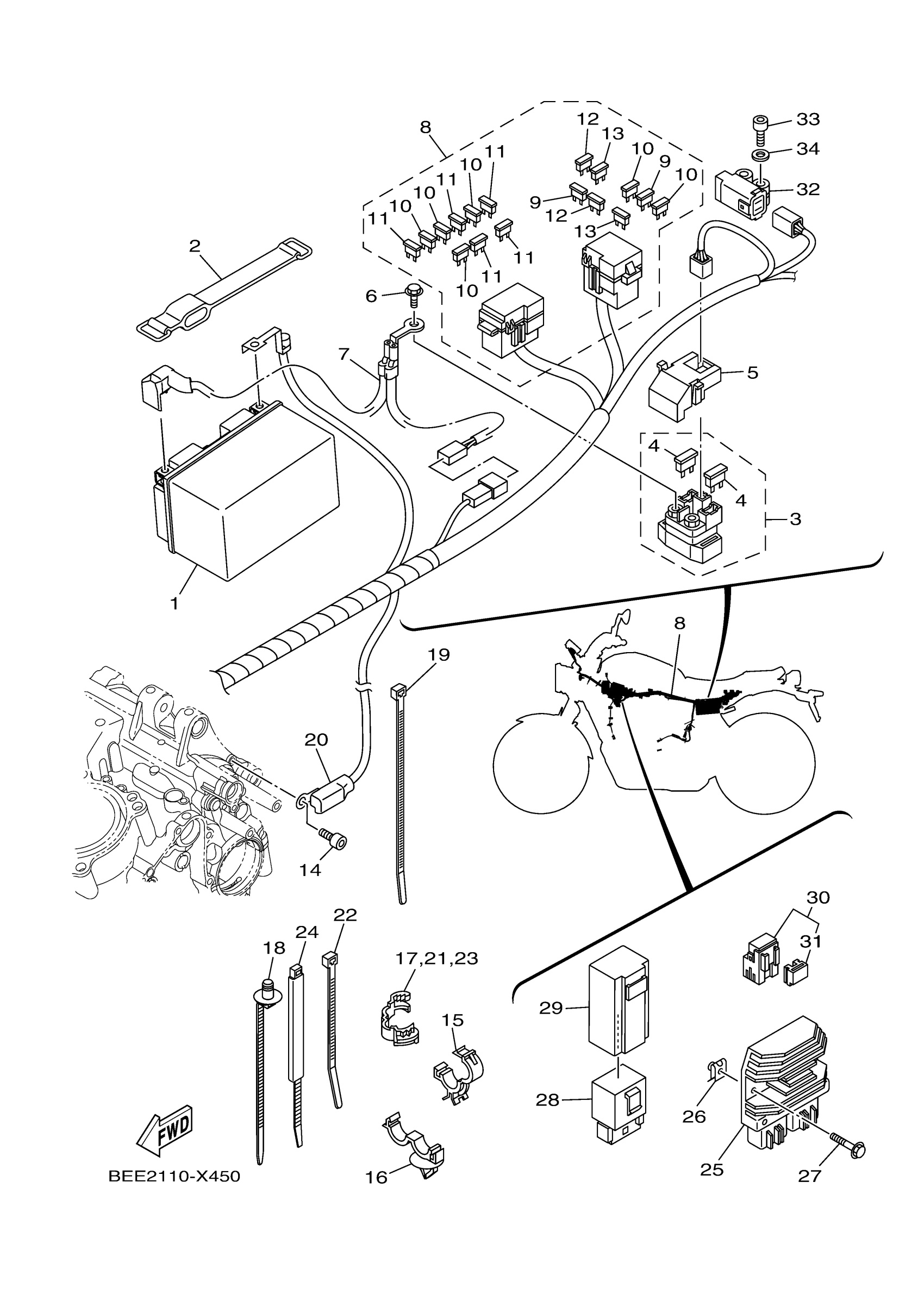

2022 Yamaha XSR700 (XSR700NB) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BATTERY YTZ10S

YTZ-10S00-00-00

1

$192.05

In stock

2

BAND, BATTERY

1WS-82131-00-00

1
Out of stock

3

STARTER RELAY ASSY

1XC-81940-00-00

1

$56.89

In stock

4

FUSE (12V 30A)

1AE-82151-00-00

1
Out of stock

5

COVER, LEAD WIRE

5SL-82119-10-00

1

$4.06

In stock

6

BOLT, FLANGE

95022-06008-00

1

$6.26

In stock

7

WIRE, PLUS LEAD

1XB-82115-01-00

1

$21.37

In stock

8

WIRE HARNESS ASSY

BEE-82590-10-00

1

$1,026.99

In stock

9

. FUSE (3A)

67F-82151-30-00

1

$4.89

In stock

10

FUSE (7.5A-BL)

5JJ-82151-00-00

1

$5.93

In stock

11

. FUSE (10A)

67F-82151-40-00

1

$6.67

In stock

12

FUSE

5JJ-82151-20-00

1

$6.42

In stock

13

FUSE

5JJ-82151-60-00

1

$6.42

In stock

14

BOLT

91380-06012-00

1

$1.77

In stock

15

CLAMP(4GY)

90464-20191-00

1

$7.35

In stock

16

CLAMP

90464-17003-00

—

$3.34

In stock

17

CLAMP

90464-14010-00

—

$3.11

In stock

18

CLAMP

90464-30010-00

—

$1.54

In stock

19

BAND

1UA-82591-00-00

—
Out of stock

20

COVER, TERMINAL

1WS-81916-00-00

—

$4.23

In stock

21

CLAMP

90464-14010-00

—

$3.11

In stock

22

CLAMP

90464-36005-00

1

$0.88

In stock

23

CLAMP

90464-14010-00

—

$3.11

In stock

24

BAND

BAT-21646-00-00

—

$2.83

In stock

25

RECTIFIER & REGULATOR ASSY

1D7-81960-10-00

—

$212.25

In stock

26

NUT, SPRING(4ES)

90183-06069-00

1

$5.93

In stock

27

. BOLT, FLANGE

95027-06020-00

1

$1.00

In stock

28

RELAY ASSY

5VK-81950-52-00

—

$51.94

In stock

29

COVER 1

1WS-8246B-00-00

—

$7.91

In stock

30

RELAY ASSY

1TP-81950-00-00

—
Out of stock

31

HOLDER,RELAY

5EA-81952-00-00

—

$6.72

In stock

32

SENSOR, LEAN ANGLE

5PS-82576-02-00

—
Out of stock

33

BOLT

91312-04025-00

—
Out of stock

34

WASHER, PLATE

90201-04030-00

—
Out of stock
