1981 Yamaha XS850S (XS850SH) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1981 Yamaha XS850S (XS850SH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

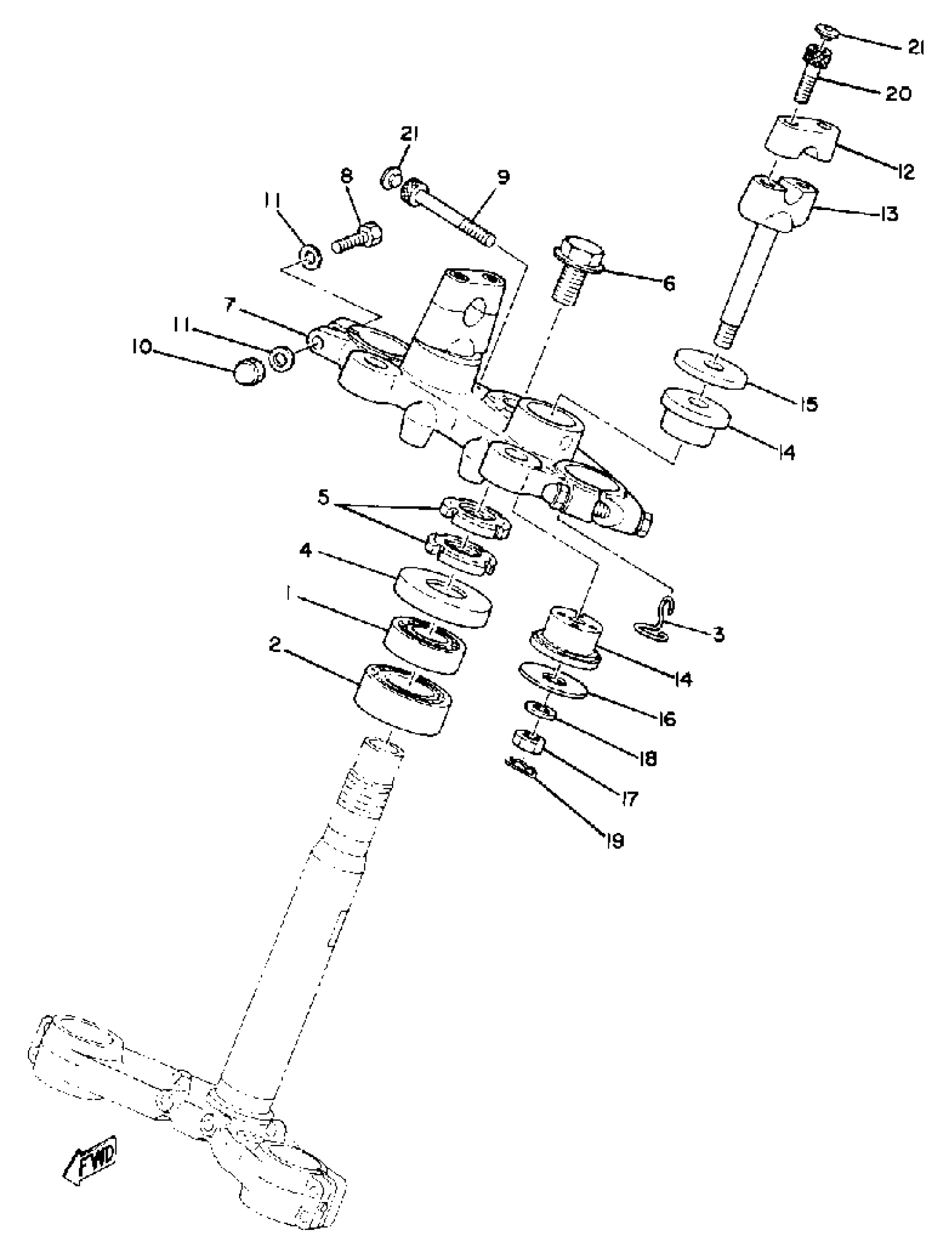

1981 Yamaha XS850S (XS850SH) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRG, TAPERED ROLLER (409)

93332-00001-00

1
Out of stock

2

BRG,CYL-CAL ROLLER 131G KY

93332-00008-00

1
Out of stock

3

HOLDER, CABLE

4H7-23317-00-00

1
Out of stock

4

COVER, BALL RACE 1

1J7-23415-00-00

1
Out of stock

5

NUT

90179-25004-00

1
Out of stock

6

BOLT, WASHER BASED(1AR)

90105-14365-00

1
Out of stock

7

CROWN, HANDLE

3J9-23435-00-00

1
Out of stock

8

BOLT, HEXAGON

97017-08055-00

1
Out of stock

9

BOLT,SOCKET

91317-08040-00

1
Out of stock

10

NUT, CAP

95307-08800-00

1
Out of stock

11

WASHER(6TA)

92907-08600-00

1
Out of stock

12

HOLDER, HANDLE UPR

360-23441-01-98

1
Out of stock

13

HOLDER, HANDLE LOWER

4AA-23442-01-98

1
Out of stock

14

BUSHING, RUBBER

1T4-23434-00-00

1
Out of stock

15

WASHER (1J7)

90209-12151-00

—
Out of stock

16

WASHER, PLATE

(90201-106A4-00)

1
Out of stock

17

NUT (3WP1)

95317-10700-00

—
Out of stock

18

WASHER(6TA)

92907-10100-00

—
Out of stock

19

CLIP 136253750000

90468-12006-00

—
Out of stock

20

BOLT, SOCKET

91317-08025-00

—
Out of stock

21

CAP, BOLT (371,447)

341-23469-00-00

—
Out of stock
