1981 Yamaha XS850S (XS850SH) Front Fork Diagram

← All diagrams

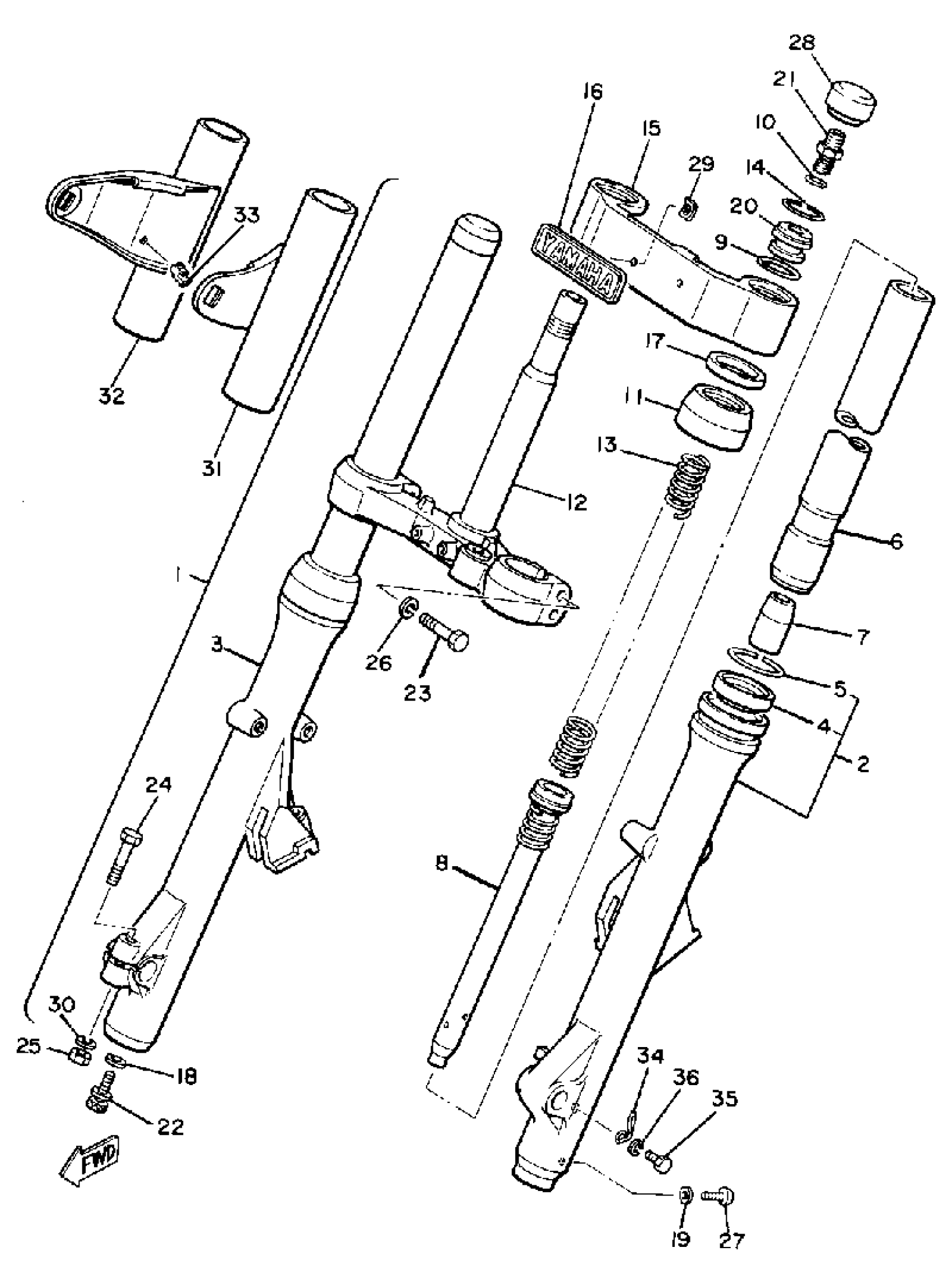

Find the part on the Front Fork diagram for your 1981 Yamaha XS850S (XS850SH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XS850S (XS850SH) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(4H1-23101-00-00)

1
Out of stock

2

TUBE, OUTER 1

(3J2-23126-00-00)

1
Out of stock

3

TUBE, OUTER 2

(3J2-23136-00-00)

1
Out of stock

4

OIL SEAL

4ES-23145-00-00

1

$18.57

In stock

5

RING, SNAP

4A1-23156-00-00

1

$4.74

In stock

6

. INNER TUBE 1

3J2-23110-00-00

1
Out of stock

7

TAPER SPINDLE

1W1-23173-L0-00

1

$15.98

In stock

8

CYLINDER, FRTFRK

(3J2-23170-00-00)

1
Out of stock

9

O-RING

3J2-23114-00-00

1

$7.51

In stock

10

O-RING

3J2-23147-00-00

1
Out of stock

11

SEAL, DUST

3J2-23144-00-00

—

$29.23

In stock

12

UNDER BRACKET

3J2-23340-00-00

1
Out of stock

13

SPRING, FRONT FORK

(3J2-23141-00-00)

1
Out of stock

14

RING, SNAP

3J2-23183-00-00

1

$4.20

In stock

15

. COVER, OUTER 1

3J2-23122-00-00

1
Out of stock

16

. EMBLEM

2M0-23395-00-00

1
Out of stock

17

WASHER

2H7-23163-00-00

—

$4.35

In stock

18

GASKET

509-23158-L0-00

—

$14.34

In stock

19

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

20

. BOLT, CAP

3J2-23111-00-00

1
Out of stock

21

AIR VALVE COMP.

4V4-23190-L0-00

—

$52.77

In stock

22

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

23

BOLT

(90101-08262-00)

1
Out of stock

24

BOLT

97013-08045-00

—
Out of stock

25

BOLT, FLANGE

95817-08060-00

—

$3.28

In stock

26

WASHER(JN5)

92907-08100-00

—

$5.98

In stock

27

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

28

. CAP, FRONT FORK

4X7-23168-00-00

1
Out of stock

29

NUT, SPRING (1L9)

90183-04012-00

—
Out of stock

30

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

31

COVER, UPPER 1

3J2-23121-00-93

1
Out of stock

32

COVER, UPPER 2

3J2-23131-00-93

1
Out of stock

33

CLAMP (1J7)

90464-16025-00

—
Out of stock

34

HOLDER, CABLE 1

4H3-23318-00-00

1
Out of stock

35

BOLT (661)

97013-06012-00

—

$4.71

In stock

36

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
