Front Fork

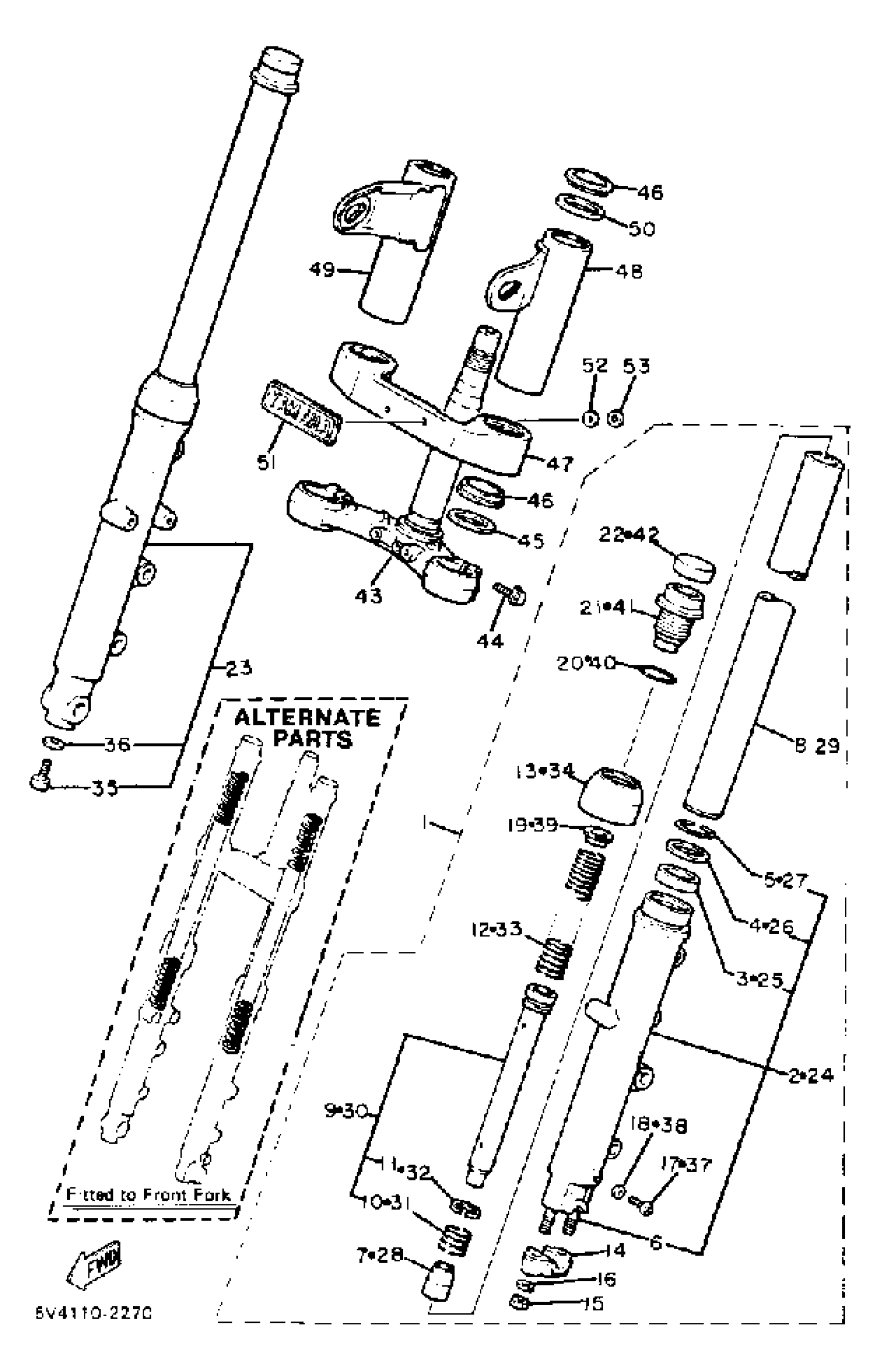

1982 Yamaha XS650S (XS650SJ) Front Fork Diagram
Find the part on the Front Fork diagram for your 1982 Yamaha XS650S (XS650SJ), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRONT FORK ASSEMBLY L
(5V4-23102-00-00)
2
. TUBE, OUTER 1
5V4-23126-00-00
6
BOLT, STUD (278)
90116-08261-00
8
TUBE, INNER
2F0-23110-00-00
9
. CYLINDER, FRTFRK
2F0-23170-00-00
10
SPRING, REBOUND
(2F0-23151-00-00)
12
. SPRING, FRONT FORK
2F0-23141-00-00
12
SPRING, FRONT FORK
(2F0-23141-10-00)
14
HOLDER,AXLE
341-23167-50-00
19
. WASHER, SPRING UPR
2F0-23149-00-00
20
RING, CAP BOLT
2F0-23114-00-00
21
. BOLT, CAP
2F0-23111-00-00
22
. CAP, FRONT FORK
2F0-23168-00-00
23
FRONT FORK ASSEMBLY R
(5V4-23103-00-00)
24
. TUBE, OUTER 2
5V4-23136-00-00
29
TUBE, INNER
2F0-23110-00-00
30
. CYLINDER, FRTFRK
2F0-23170-00-00
31
SPRING, REBOUND
(2F0-23151-00-00)
33
. SPRING, FRONT FORK
2F0-23141-00-00
33
SPRING, FRONT FORK
(2F0-23141-10-00)
39
. WASHER, SPRING UPR
2F0-23149-00-00
40
RING, CAP BOLT
2F0-23114-00-00
41
. BOLT, CAP
2F0-23111-00-00
42
. CAP, FRONT FORK
2F0-23168-00-00
43
. UNDER BRACKET
1U3-23340-30-33
45
WASHER, OIL SEAL
(1T3-23146-50-00)
46
. GASKET
1T3-23163-51-00
47
. COVER, OUTER 1
4E4-23122-00-00
49
COVER, UPPER 2
5V4-23131-00-00
50
. GUIDE, COVER LOWER
1T3-23116-51-00
51
. EMBLEM
2M0-23395-00-00
