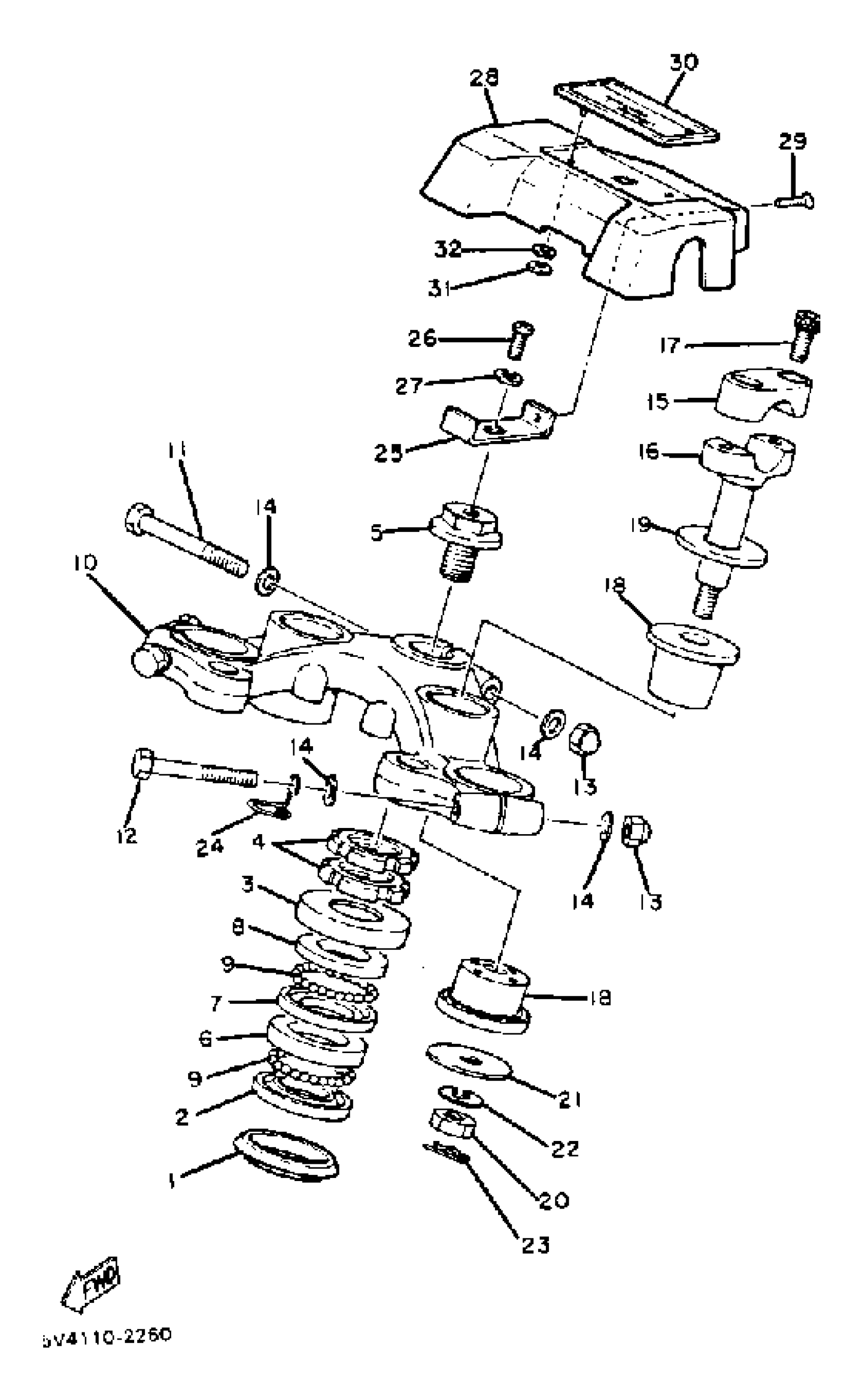

Find the part on the Steering diagram for your 1982 Yamaha XS650S (XS650SJ), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XS650S (XS650SJ) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAL, DUST

164-23462-00-00

1
Out of stock

2

RACE, BALL 1

256-23411-00-00

1
Out of stock

3

COVER, BALL RACE

136-23415-00-00

1
Out of stock

4

NUT

90179-25004-00

1
Out of stock

5

BOLT

90109-14602-00

1
Out of stock

6

RACE, BALL2

256-23412-00-00

—
Out of stock

7

RACE, BALL3

256-23413-00-00

—
Out of stock

8

RACE, BALL4

256-23414-00-00

—
Out of stock

9

BALL

93501-04011-00

1
Out of stock

10

CROWN, HANDLE

2M0-23435-00-98

1
Out of stock

11

BOLT

97021-08065-00

1
Out of stock

12

BOLT, HEXAGON

97017-08055-00

1
Out of stock

13

NUT, CAP

95307-08800-00

1
Out of stock

14

WASHER(6TA)

92907-08600-00

1
Out of stock

15

HOLDER, HANDLE UPR

360-23441-01-98

1
Out of stock

16

HOLDER, HANDLE LOWER

4AA-23442-01-98

1
Out of stock

17

BOLT, SOCKET

91317-08025-00

—
Out of stock

18

BUSHING, RUBBER

1T4-23434-00-00

—
Out of stock

19

WASHER (1J7)

90209-12151-00

—
Out of stock

20

NUT (682)

95380-10700-00

1
Out of stock

21

WASHER PLATE 256234440000

90201-10149-00

—
Out of stock

22

YBS67-10 WASHER, SPRING

92990-10100-00

—
Out of stock

23

CLIP 136253750000

90468-12006-00

—
Out of stock

24

HOLDER, CABLE

4H7-23317-00-00

1
Out of stock

25

BRACKET, HNDL CVR 1

5V4-26226-00-00

1
Out of stock

26

SCREW, PAN

98507-06014-00

—
Out of stock

27

WASHER, SPRING

92995-06100-00

1
Out of stock

28

COVER, UPPER

5V4-26213-00-00

1
Out of stock

29

SCREW, FLAT

98707-05010-00

—
Out of stock

30

EMBLEM 7

5V4-21787-00-00

1
Out of stock

31

NUT SPRING 116283170100

90183-04005-00

—
Out of stock

32

WASHER PLATE 174283160000

90202-04003-00

—
Out of stock
