1981 Yamaha XS650 (XS650H) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1981 Yamaha XS650 (XS650H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

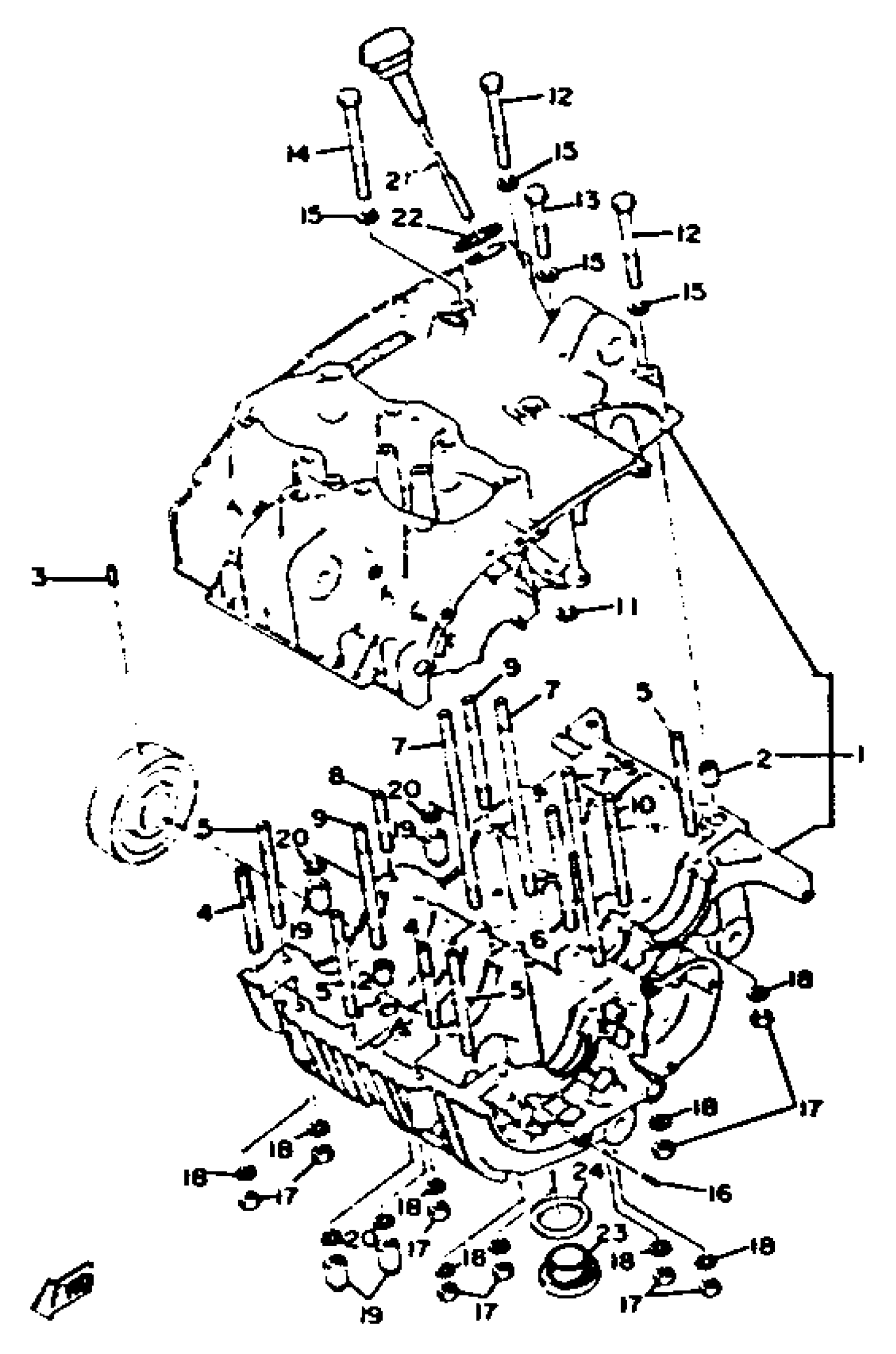

1981 Yamaha XS650 (XS650H) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSEMBLY

(306-15100-03-00)

1
Out of stock

2

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

3

PIN, DOWEL

93605-12069-00

1
Out of stock

4

BOLT,STUD

90116-08371-00

1
Out of stock

5

BOLT (248-11361-00)

90116-08064-00

1
Out of stock

6

BOLT, STUD (1A1)

90116-08232-00

1
Out of stock

7

BOLT, STUD

(90116-08199-00)

1
Out of stock

8

BOLT, STUD (306-15192-00)

90116-08047-00

1
Out of stock

9

BOLT, STUD

90116-08066-00

1
Out of stock

10

BOLT, STUD (19U)

90116-08393-00

1

$3.78

In stock

11

GASKET, OIL SEALING

256-15395-00-00

1
Out of stock

12

BOLT (6K8)

97013-08075-00

1

$5.66

In stock

13

BOLT, HEXAGON

97013-08055-00

1

$3.25

In stock

14

BOLT (97321-08090)

97023-08090-00

1
Out of stock

15

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

16

PIN, DOWEL

93603-14026-00

—
Out of stock

17

NUT(6L2)

95333-08600-00

—

$3.20

In stock

18

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

19

NUT, CROWN

90176-08019-00

1
Out of stock

20

. GASKET

90430-08143-00

1

$2.90

In stock

21

PLUG, OIL LEVEL

256-15362-02-00

1
Out of stock

22

GASKET 214217720000

90430-29114-00

—

$6.20

In stock

23

PLUG, DRAIN

256-15351-00-00

1
Out of stock

24

GASKET, DRAIN PLUG

256-15353-00-00

—

$13.06

In stock
