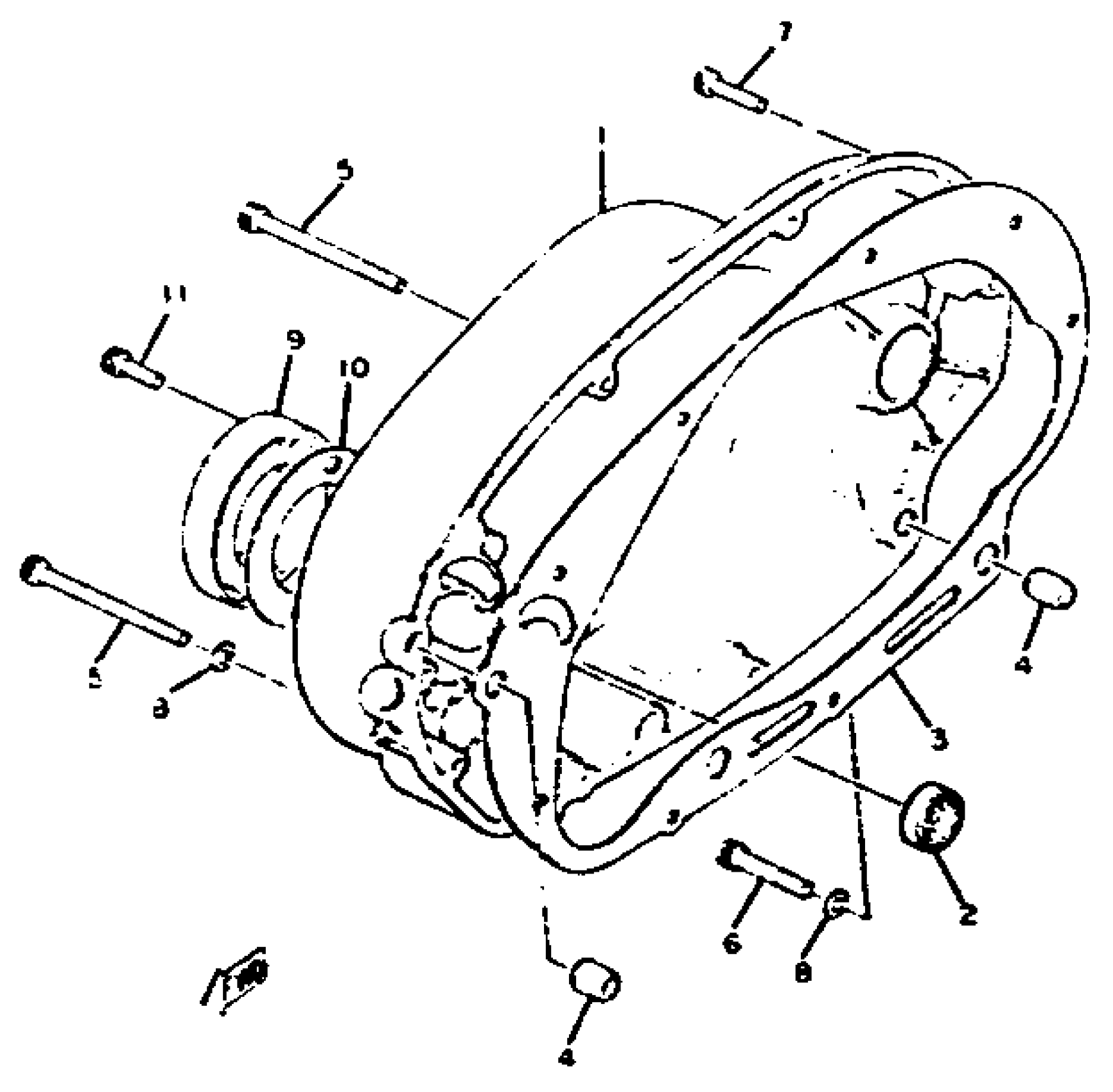

Yamaha XS650H (XS650) 1981 CRANKCASE COVER 2 Diagram

#

Description
Price

1

COVER, CRANKCASE R

4E3-15421-00-00

Unavailable

2

GAUGE, LEVEL

2H7-15361-00-00

$80.55

3

GASKET, CRANK CASE COVER (R.H)

256-15451-10-00

$35.52

4

PIN, DOWEL

99530-12016-00

$3.85

5

BOLT,SOCKET

91314-06075-00

$3.59

6

BOLT, SOCKET

91314-06040-00

$5.75

7

BOLT,SOCKET HEAD

91314-06025-00

$6.22

8

GASKET 256113960000

90430-06014-00

Unavailable

9

COVER, OIL PUMP

256-15416-02-00

Unavailable

10

GASKET

256-15456-10-00

$12.11

11

BOLT,SOCKET HEAD

91314-06025-00

$6.22
