1981 Yamaha XS650 (XS650H) Kick Starter Diagram

← All diagrams

Find the part on the Kick Starter diagram for your 1981 Yamaha XS650 (XS650H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

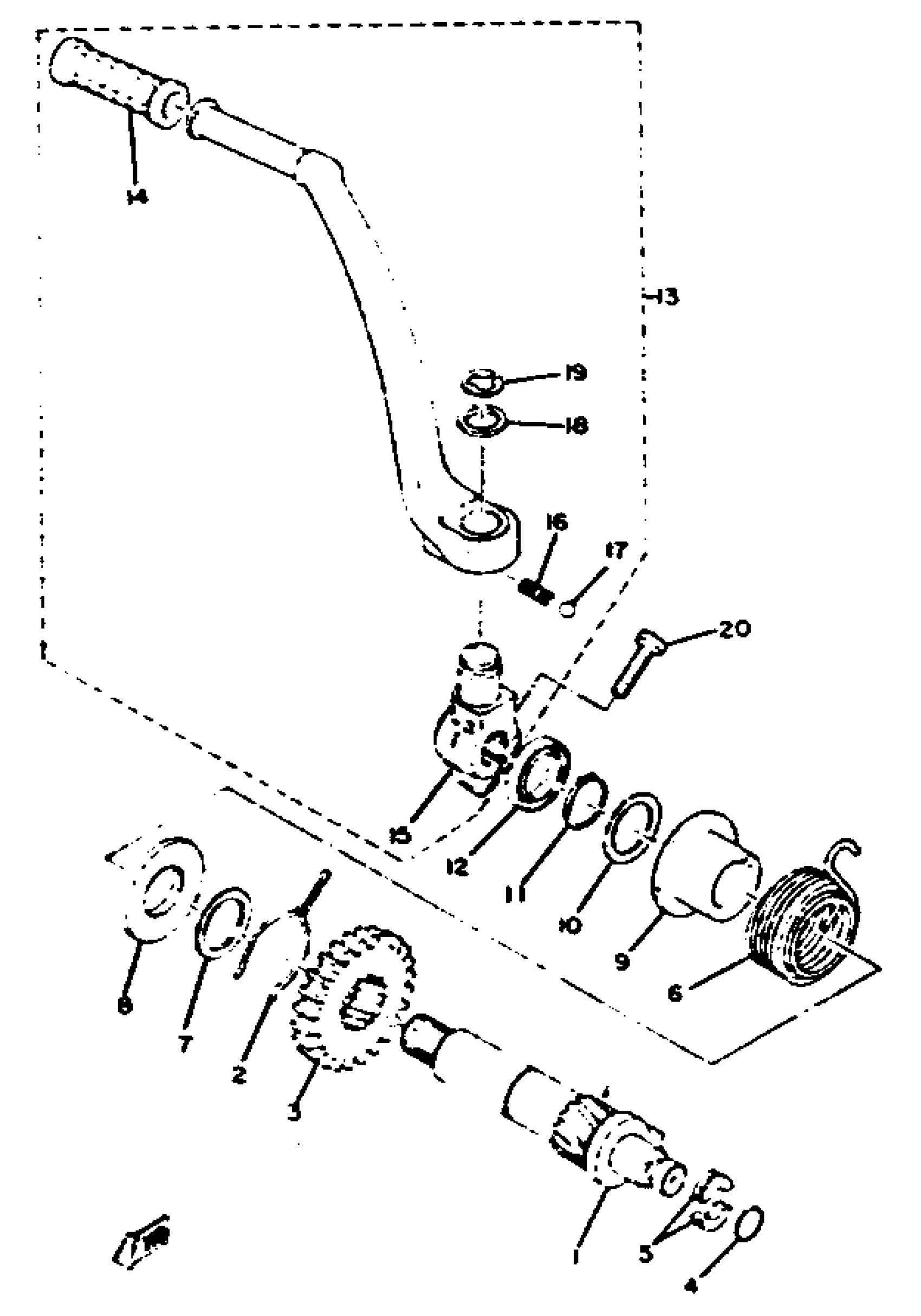

1981 Yamaha XS650 (XS650H) Kick Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK AXLE ASSEMBLY

(256-15660-02-00)

1
Out of stock

2

CLIP

(90468-26044-00)

1
Out of stock

3

GEAR, KICK

306-15641-01-00

1
Out of stock

4

CLIP

(256-15673-00-00)

1
Out of stock

5

HOLDER, KICK GEAR

(256-15654-00-00)

1
Out of stock

6

SPRING, TORSION

90508-32062-00

1
Out of stock

7

SHIM (0.1MM)

611-45567-00-01

1
Out of stock

7

SHIM

(611-45567-00-03)

1
Out of stock

7

SHIM (0.5MM)

611-45567-00-05

1
Out of stock

8

SPACER (856-23858-00)

90560-25048-00

1
Out of stock

9

GUIDE, SPRING

256-15664-01-00

1
Out of stock

10

WASHER, PLATE(1FK)

90201-256K6-00

—

$3.49

In stock

11

CIRCLIP (256)

93410-25017-00

1
Out of stock

12

OIL SEAL (25X35X7-256)

93102-25064-00

1
Out of stock

13

KICK CRANK ASSY

1JN-15610-00-00

—

$233.95

In stock

14

COVER, KICK LEVER

156-15618-01-00

—

$6.43

In stock

15

BOSS, KICK CRANK

(2M0-15621-00-00)

1
Out of stock

16

SPRING COMPRESSION278156220000

90501-12081-00

—
Out of stock

17

BALL (12R)

93507-32031-00

—
Out of stock

18

WASHER PLATE 278156130000

90201-15234-00

—

$6.78

In stock

19

CIRCLIP

99006-10600-00

—

$6.91

In stock

20

BOLT, HEXAGON

97013-08030-00

—

$3.20

In stock
