1979 Yamaha XS400 (XS400F) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1979 Yamaha XS400 (XS400F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

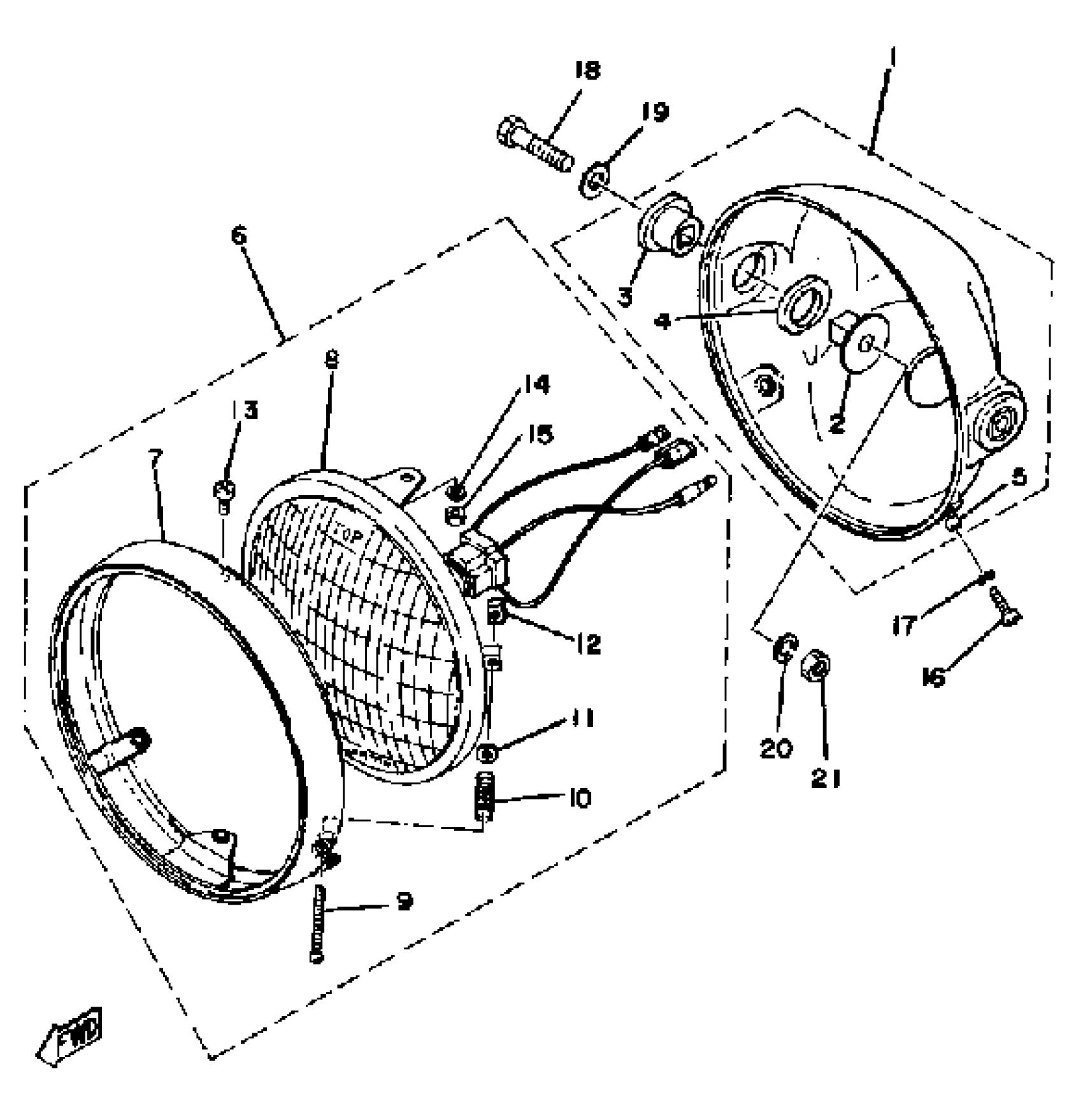

1979 Yamaha XS400 (XS400F) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD LAMP BODY ASSEMBLY

1L9-84330-61-33

1
Out of stock

2

. COLLAR, BODY FTNG

1L9-84338-60-00

1
Out of stock

3

. DAMPER, HEADLIGHT 1

1L9-84366-61-00

1
Out of stock

4

. DAMPER, HEADLIGHT 2

1L9-84367-61-00

1
Out of stock

5

. SPACER

1L9-84327-60-00

1
Out of stock

6

UNAVAILABLE IN PRICE BOOK

(1L9-84310-60-00)

1
Out of stock

7

RIM, HEAD LAMP

1L9-84315-60-00

—

$56.32

In stock

8

. LENS ASSEMBLY

1L9-84320-61-00

1
Out of stock

9

SCREW, RIM ADJUSTING

4KG-84331-00-00

1
Out of stock

10

SPRING,SCREW

3AA-84332-00-00

1
Out of stock

11

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

12

NUT, ADJUSTING

5PX-84334-00-00

1

$6.38

In stock

13

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

14

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

15

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

16

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

17

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

18

BOLT

97013-08035-00

—

$4.80

In stock

19

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

20

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

21

NUT(6L2)

95333-08600-00

—

$3.20

In stock
