Find the part on the Handle - Wire diagram for your 1979 Yamaha XS400 (XS400F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

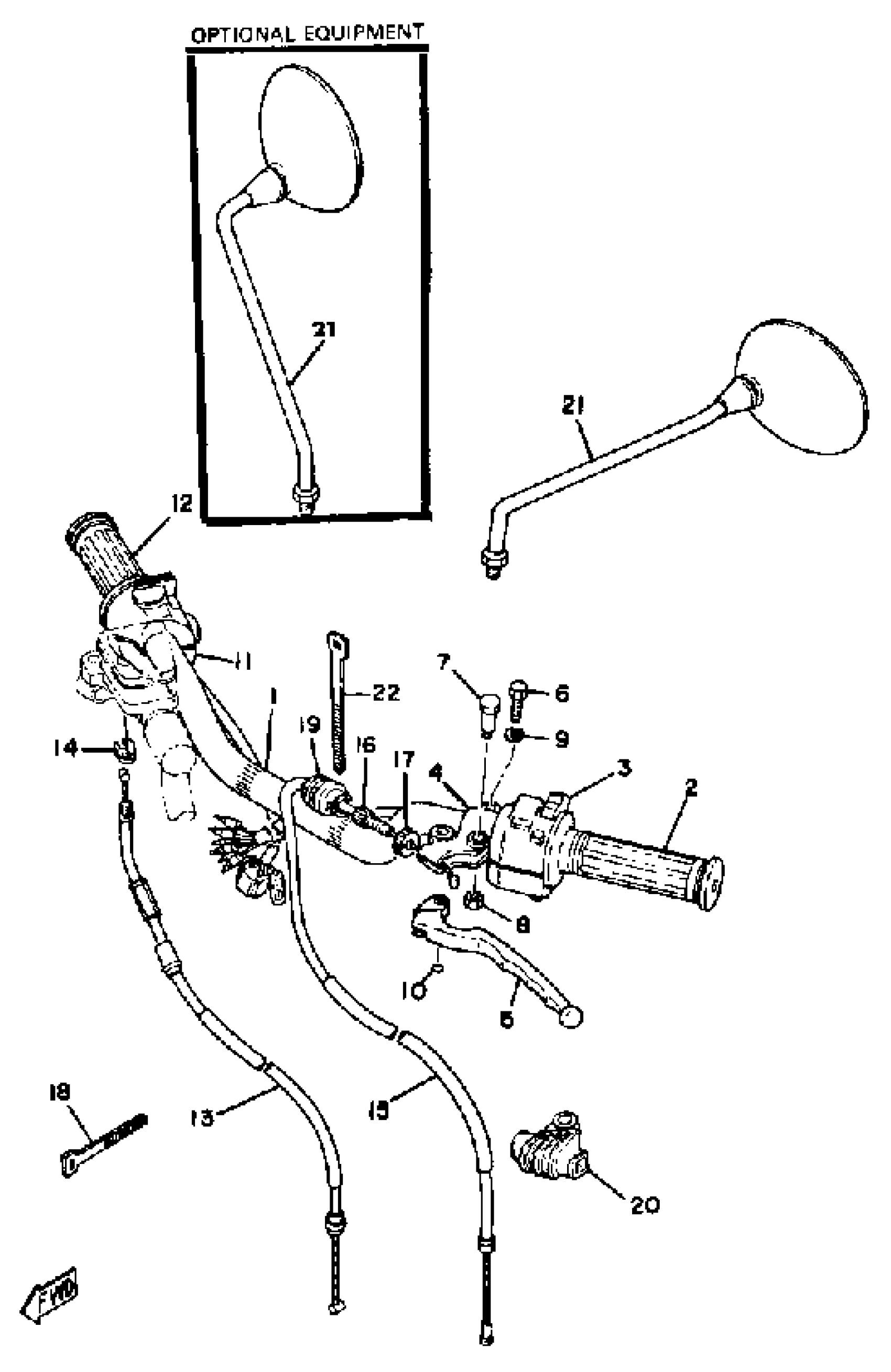

1979 Yamaha XS400 (XS400F) Handle - Wire Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

2L0-26111-00-00

1
Out of stock

2

GRIP LH

2H7-26241-01-00

1
Out of stock

3

SWITCH, HANDLE 3

3F9-83973-00-00

1
Out of stock

4

—

$24.57

In stock

5

LEVER L

2H0-83912-31-00

1

$26.37

In stock

6

BOLT, HEXAGON

97013-06022-00

1

$1.20

In stock

7

BOLT(1FG)

90109-06798-00

1
Out of stock

8

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

O-RING (2H7)

93210-11368-00

1

$4.80

In stock

11

SWITCH, HANDLE 2LR

2L0-83975-01-98

1
Out of stock

12

GRIP ASSY

2H7-26240-01-00

1
Out of stock

13

CABLE, THROTTLE 1 (780 MM)

1L9-26311-00-00

1
Out of stock

14

HOLDER,

584-26393-02-00

—

$6.02

In stock

15

CABLE, CLUTCH

2L0-26335-00-00

1
Out of stock

16

BOLT

90123-08002-00

—

$8.93

In stock

17

NUT

90179-08030-00

—

$3.78

In stock

18

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

19

BOOT, WIRE

1E6-26342-00-00

—

$26.82

In stock

20

COVER, LEVER

1E6-26372-00-00

—

$19.91

In stock

21

MIRROR ASSEMBLY RH

2H7-26290-00-00

1
Out of stock

21

MIRROR ASSEMBLY LH

4G0-26290-10-00

1
Out of stock

22

BAND

341-26397-01-00

1
Out of stock
