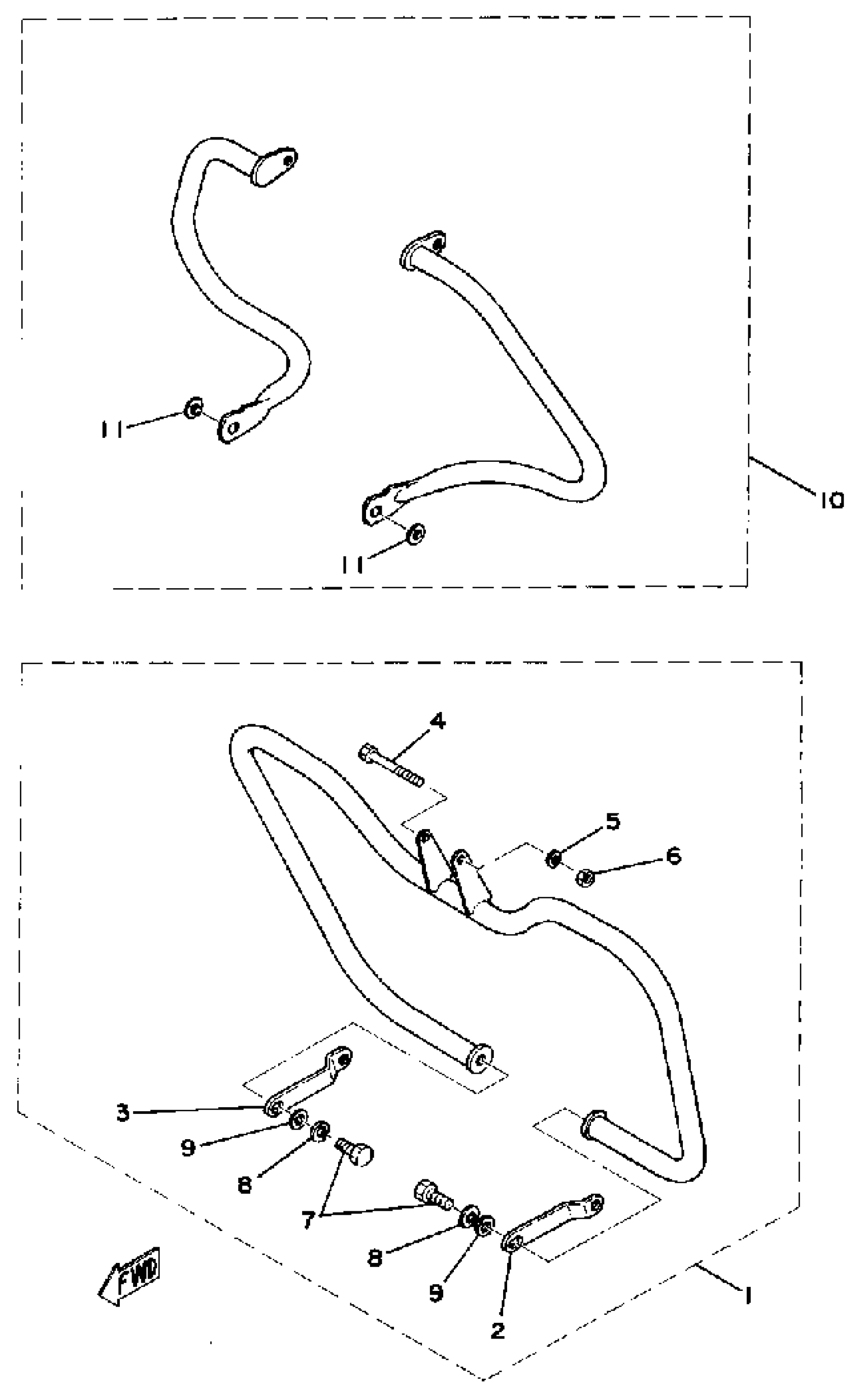

Find the part on the Bumper diagram for your 1977 Yamaha XS400 (XS400D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha XS400 (XS400D) Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ERROR

(1L9-W0031-00-00)

1
Out of stock

2

. UNAVAILABLE IN PRICE BOOK

1L9-24872-00-00

1
Out of stock

3

. UNAVAILABLE IN PRICE BOOK

1L9-24873-00-00

1
Out of stock

4

BOLT, FLANGE(JN5)

95817-08070-00

1
Out of stock

5

YBS67-8 WASHER, SPRING

92990-08100-00

1
Out of stock

6

NUT(6L2)

95333-08600-00

1
Out of stock

7

. UNAVAILABLE IN PRICE BOOK

95801-10025-00

1
Out of stock

8

YBS67-10 WASHER, SPRING

92990-10100-00

1
Out of stock

9

958-69527-00 WASHER, PLAIN

92990-10200-00

1
Out of stock

10

ERROR

(1L9-W0032-00-00)

1
Out of stock

11

WASHER PLATE 341222430000

90201-10142-00

1
Out of stock
