1977 Yamaha XS360 (XS360_2D) Electrical 2 Diagram

← All diagrams

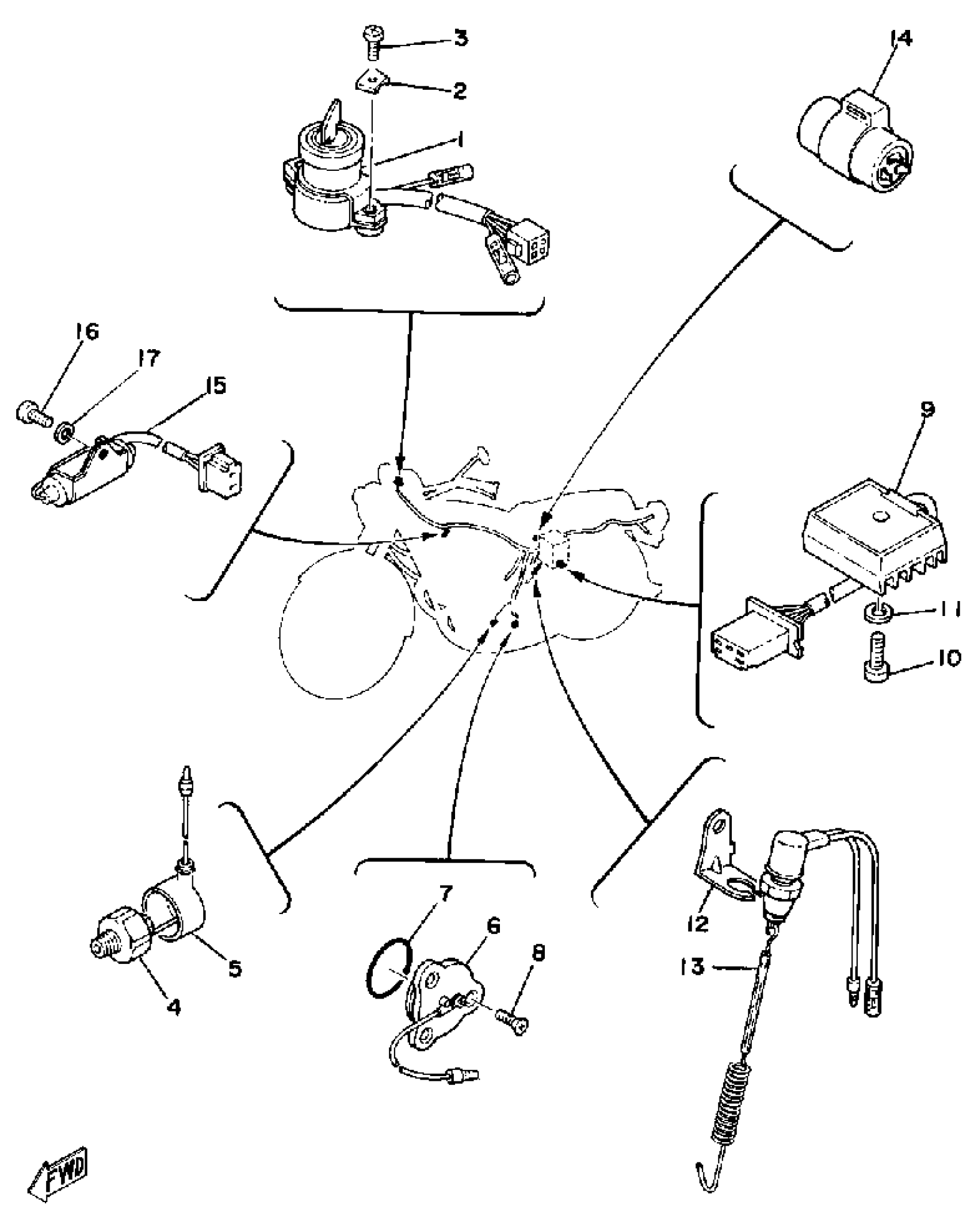

Find the part on the Electrical 2 diagram for your 1977 Yamaha XS360 (XS360_2D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha XS360 (XS360_2D) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MAIN SWITCH ASSEMBLY

1L9-82508-41-00

1
Out of stock

2

WASHER, SPECIAL

533-82517-00-00

1
Out of stock

3

SCREW, PAN HEAD(4MY)

98507-05018-00

1

$2.48

In stock

4

OIL PRESSURE SWITCH ASSEMBLY

341-82504-02-00

1
Out of stock

5

WIRE, LEAD

(1L9-82507-00-00)

1
Out of stock

6

NEUTRAL SWITCH ASSY

1L9-82540-00-00

1
Out of stock

7

O-RING (371)

93210-29196-00

1

$6.45

In stock

8

SCREW, FLAT

98707-05012-00

1
Out of stock

9

RECTIFIER ASSEMBLY

1L9-81970-60-00

1
Out of stock

10

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

11

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

12

STARTER SWITCH ASSEMBLY

1J7-81940-10-00

1
Out of stock

13

STAY, STOP SWITCH

(1L9-82539-01-00)

1
Out of stock

14

STOP SWITCH ASSEMBLY

1L9-82530-02-00

1
Out of stock

15

FLASHER RELAY ASSY

2NV-83350-00-00

1
Out of stock

16

FLASHER CANCELING UNIT

1A0-83395-03-00

1
Out of stock

17

CONDENSER 1

1L9-81625-50-00

1
Out of stock

18

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
