1972 Yamaha XS2 (XS2) Side Cover - BOX Comp - Diagram

← All diagrams

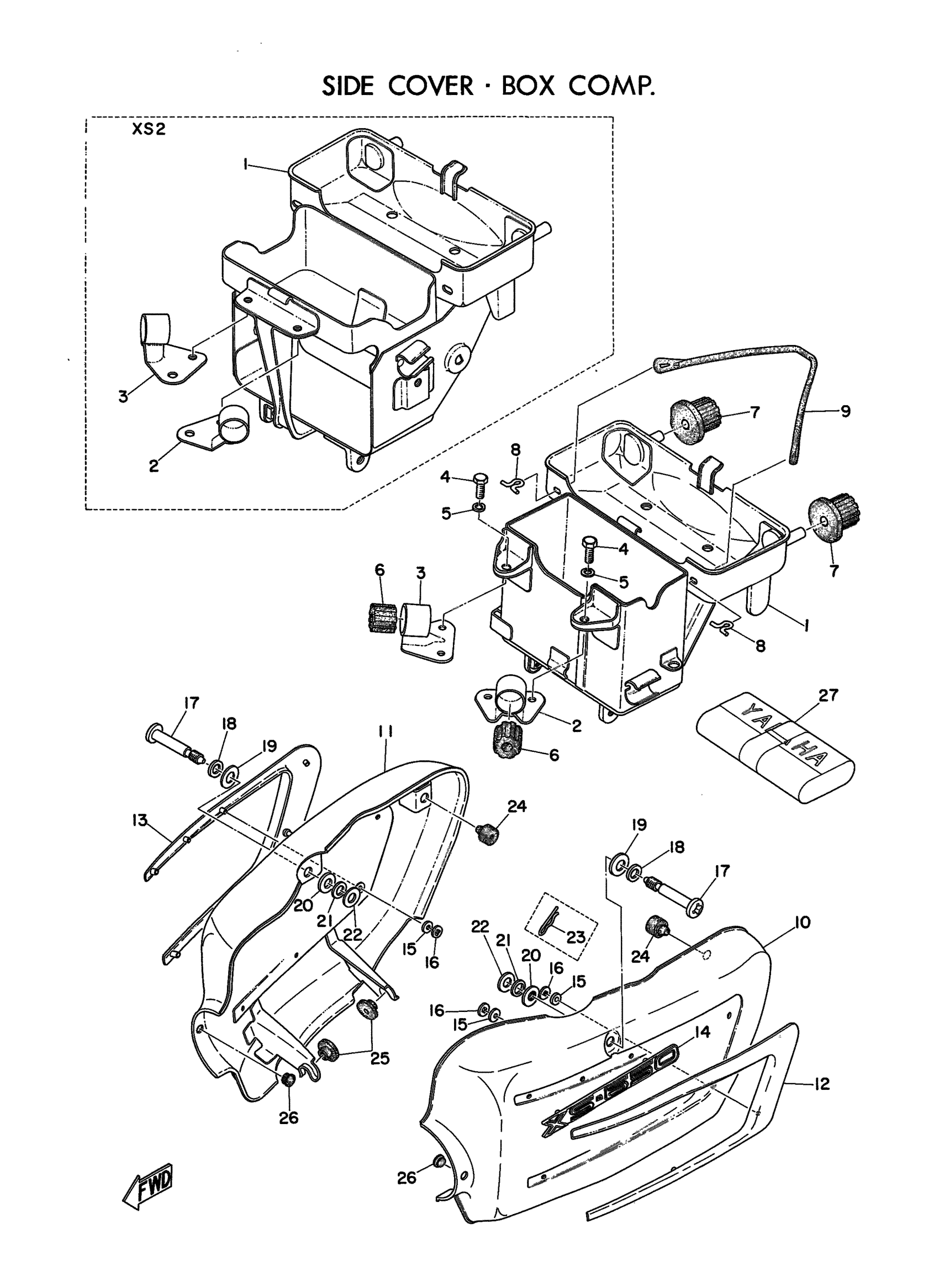

Find the part on the Side Cover - BOX Comp - diagram for your 1972 Yamaha XS2 (XS2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha XS2 (XS2) Side Cover - BOX Comp - Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOX

(256-21170-00-33)

1
Out of stock

1

BOX, BATT.

(306-21170-01-33)

1
Out of stock

2

BRACKET, BATT BOX

(256-21149-00-00)

1
Out of stock

2

BRACKET, BATT BOX

(306-21149-00-00)

1
Out of stock

3

BRACKET, BATT BOX

(256-21344-00-00)

1
Out of stock

3

BRACKET, BATT BOX

(306-21344-00-00)

1
Out of stock

4

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

5

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

DAMPER, SIDE COVER

2J2-21729-00-00

1

$4.68

In stock

7

DAMPER

256-21747-00-00

1
Out of stock

8

HOOK, TOOL BAND

256-21366-00-00

1
Out of stock

9

BAND, TOOL

256-21376-00-00

—
Out of stock

10

COVER, SIDE 1

(256-21711-01-52)

1
Out of stock

10

COVER, SIDE 1

256-21711-01-63

1
Out of stock

10

COVER, SIDE 1 (256-21711-01-64)

256-21711-01-K9

1
Out of stock

10

COVER, SIDE 1

(366-21711-00-F5)

1
Out of stock

11

COVER, SIDE 2

(256-21721-01-52)

1
Out of stock

11

COVER, SIDE 2

(256-21721-01-63)

1
Out of stock

11

COVER, SIDE 2

(256-21721-01-K9)

1
Out of stock

11

COVER, SIDE 2

(366-21721-00-F5)

1
Out of stock

12

MOLD 1

256-21781-00-00

1
Out of stock

13

MOLD 2

256-21782-00-00

1
Out of stock

14

EMBLEM 6

306-21786-00-00

1
Out of stock

14

EMBLEM 6

306-21786-00-00

1
Out of stock

14

EMBLEM 6

306-21786-00-00

1
Out of stock

15

WASHER PLATE 174283160000

90202-04003-00

—

$6.69

In stock

16

NUT SPRING 116283170100

90183-04005-00

—

$0.74

In stock

17

BOLT (256-21712-02) 002

90109-08189-00

1
Out of stock

18

WASHER, PLAIN 2562171501

90201-10123-00

—

$5.62

In stock

18

WASHER, PLATE

(90202-08020-00)

1
Out of stock

18

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

19

WASHER, PLATE (10-18-1.5) (256-21725-00) 002

90202-10023-00

1
Out of stock

20

WASHER, PLATE 2562171800

90201-08088-00

1

$1.07

In stock

21

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

22

NUT, SPEC''L SHAPE

90179-08035-00

1
Out of stock

23

CLIP (156-83525-00)

90468-10050-00

—

$2.31

In stock

24

DAMPER, LOCATING 1

(137-21778-00-00)

1
Out of stock

25

DAMPER

256-21746-00-00

1
Out of stock

26

DAMPER, SIDE COVER

256-21717-00-00

—

$9.46

In stock

27

TOOL KIT

3J3-W2810-00-00

1
Out of stock

28

EMBLEM 7

(366-21787-00-00)

1
Out of stock

29

EMBLEM 5

341-21785-00-00

1
Out of stock
