1978 Yamaha XS1100 (XS1100E) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1978 Yamaha XS1100 (XS1100E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

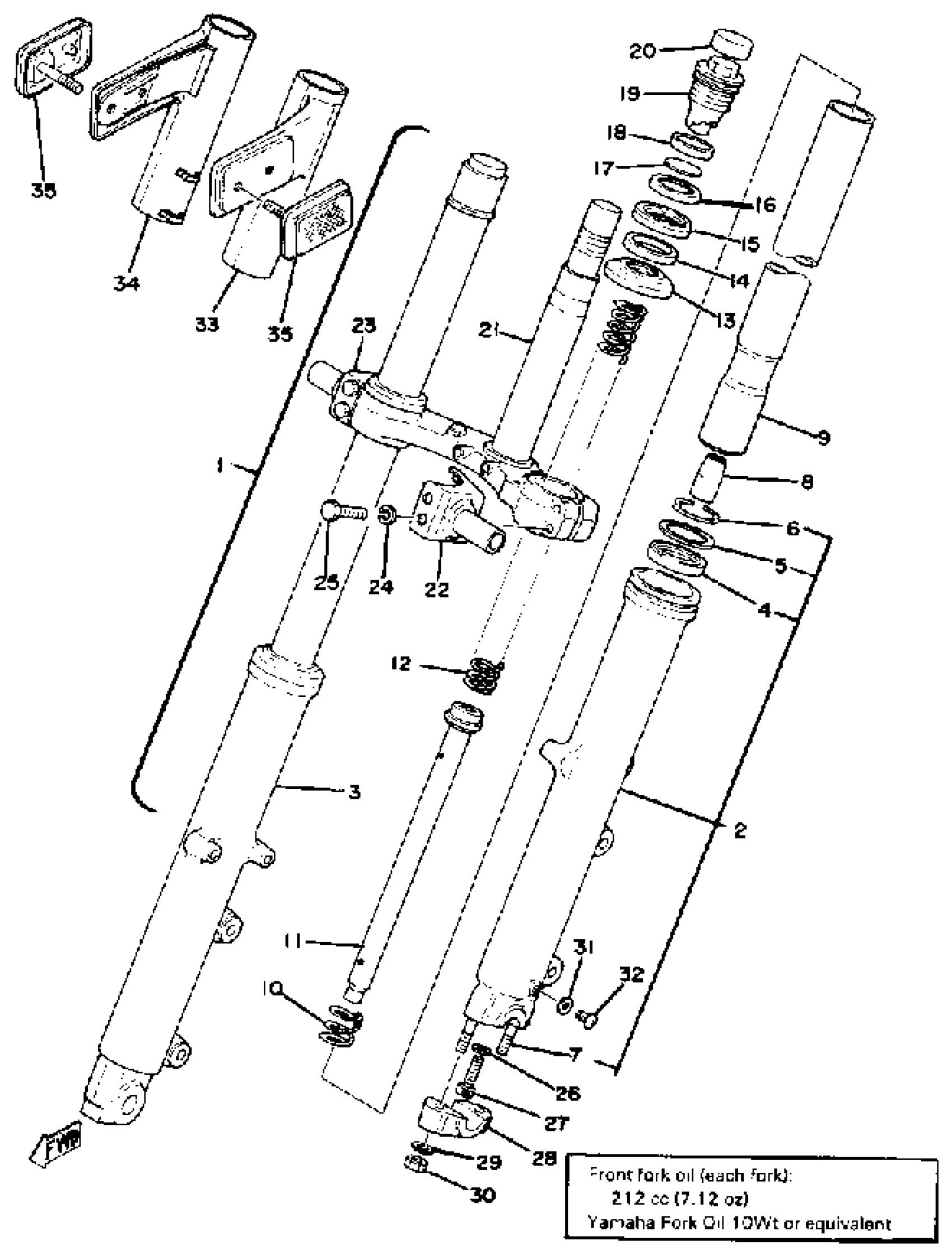

1978 Yamaha XS1100 (XS1100E) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(2H7-23101-00-00)

1
Out of stock

2

TUBE, OUTER 1

(3H5-23126-00-00)

1
Out of stock

3

TUBE, OUTER 2

(3H5-23136-00-00)

1
Out of stock

4

OIL SEAL

41Y-23145-00-00

1

$28.27

In stock

5

WASHER, OIL SEAL

(2H7-23146-00-00)

1
Out of stock

6

CLIP, OIL SEAL

(2H7-23156-00-00)

1
Out of stock

7

BOLT, STUD (278)

90116-08261-00

1
Out of stock

8

TAPER SPINDLE

1W1-23173-L0-00

1

$15.98

In stock

9

. INNER TUBE 1

2H7-23110-00-00

1
Out of stock

10

.. SPRING, REBOUND

509-23151-L0-00

1
Out of stock

11

CYLINDER, FRTFRK

(2H7-23170-00-00)

1
Out of stock

12

SPRING, FRONT FORK

(2H7-23141-00-00)

1
Out of stock

13

SEAL, DUST

3H5-23144-00-00

1
Out of stock

14

WASHER

2H7-23163-00-00

—

$4.35

In stock

15

. GUIDE, COVER LOWER

2H7-23116-00-00

1
Out of stock

16

GUIDE, COVER UPPER

2H7-23115-00-00

1
Out of stock

17

. WASHER, SPRING UPR

2H7-23149-00-00

1
Out of stock

18

GASKET

240-23114-00-00

—

$12.27

In stock

19

. BOLT, CAP

2H7-23111-00-00

1
Out of stock

20

. CAP, FRONT FORK

2F0-23168-00-00

1
Out of stock

21

. UNDER BRACKET

2H9-23340-H0-33

1
Out of stock

22

. COVER, OUTER 1

2H7-23122-00-00

1
Out of stock

23

. COVER, OUTER 2

2H7-23132-00-00

1
Out of stock

24

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

25

BOLT

97014-08040-00

—

$5.26

In stock

26

GASKET

509-23158-L0-00

—

$14.34

In stock

27

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

28

HOLDER,AXLE

341-23167-50-00

—
Out of stock

29

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

30

NUT, SELF-LOCKING (3Y2)

90185-08089-00

—

$7.31

In stock

31

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

32

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

32

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

33

COVER, UPPER 1

2H7-23121-00-93

1
Out of stock

34

COVER, UPPER 2

2H7-23131-00-93

1
Out of stock

35

FRONT REFLECTOR ASSEMBLY

2H7-85110-00-00

1
Out of stock
