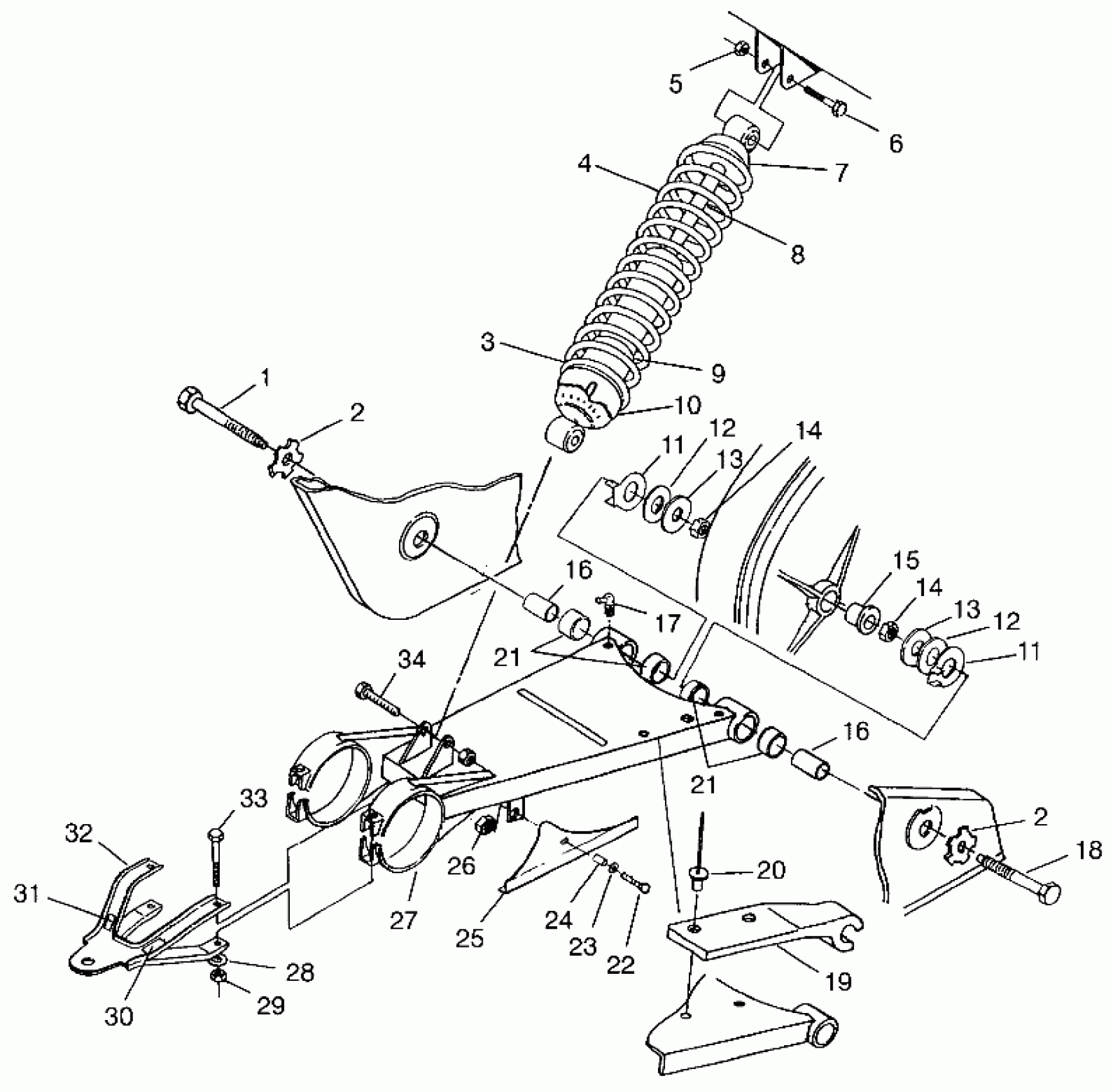

Polaris XPLORER - W959140 SWING ARM/SHOCK MOUNTING XPLORER 4X4 W959140 (4930223022C002) Diagram

#

Description
Price

1

BOLT, SHOULDER

7512701

$23.99

2

PLATE,BOLT LOCK

5220958

$35.99

2

PLATE,BOLT LOCK

5220958

$35.99

3

ADAPTER,SPRING,SEAT

5630351

Unavailable

4

SPRING,COMP,REAR

7041204-067

$64.99

5

NUT-LOCK(10)

7542439

$1.49

6

BOLT(10)

7515415

$1.49

7

RETAINER, SHOCK

5222118

Unavailable

8

SHOCK,REAR

7041448

$151.99

9

SLEEVE,SPRING PROTECTOR

5431032

$31.99

10

CAM,ADJUSTING SPRING

5630334

$32.37

11

BUSHING

5240952

$34.99

11

BUSHING

5240952

$34.99

12

BUSHING Substituted by 5433414

5431977

Unavailable

12

BUSHING Substituted by 5433414

5431977

Unavailable

13

WASHER(10)

7555911

$4.79

13

WASHER(10)

7555911

$4.79

14

NUT, LOCK(10)

7542602

Unavailable

14

NUT, LOCK(10)

7542602

Unavailable

15

Bushing, Pivot

-------

Unavailable

16

BUSHING,SWINGARM EXTENDED Substituted by 5020793

5210793

$8.48

16

BUSHING,SWINGARM EXTENDED Substituted by 5020793

5210793

$8.48

17

FITTING, LUBE. (45

7080438

$10.39

18

BOLT, SHOULDER

7512702

Unavailable

19

GUIDE, CHAIN

5431310

$32.37

20

RIVET(50)

7621433

$1.49

21

BUSHING,SWING ARM Substituted by 5433417

5431972

Unavailable

21

BUSHING,SWING ARM Substituted by 5433417

5431972

Unavailable

22

SCREW-FLANGED(10)

7515304

$5.59

23

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

24

Bushing

5332828

$9.59

25

GUIDE,CHAIN GUARD Substituted by 5430776

5431968

$34.74

26

NUT LOCK(10)

7542321

$1.49

27

ARM ASM,SWING

1580090

Unavailable

28

WASHER(10)

7555883

$3.99

29

NUT, LOCK,(10)

7542503

$10.39

30

DECAL,CHAIN FREE PLAY

7074752

Unavailable

31

DECAL, HITCH Substituted by 7078261

7072533

Unavailable

32

KIT, ATV HITCH Substituted by 2873036

2200472

Unavailable

33

BOLT(10)

7512576

$7.99

34

BOLT(10)

7515438

$4.79
