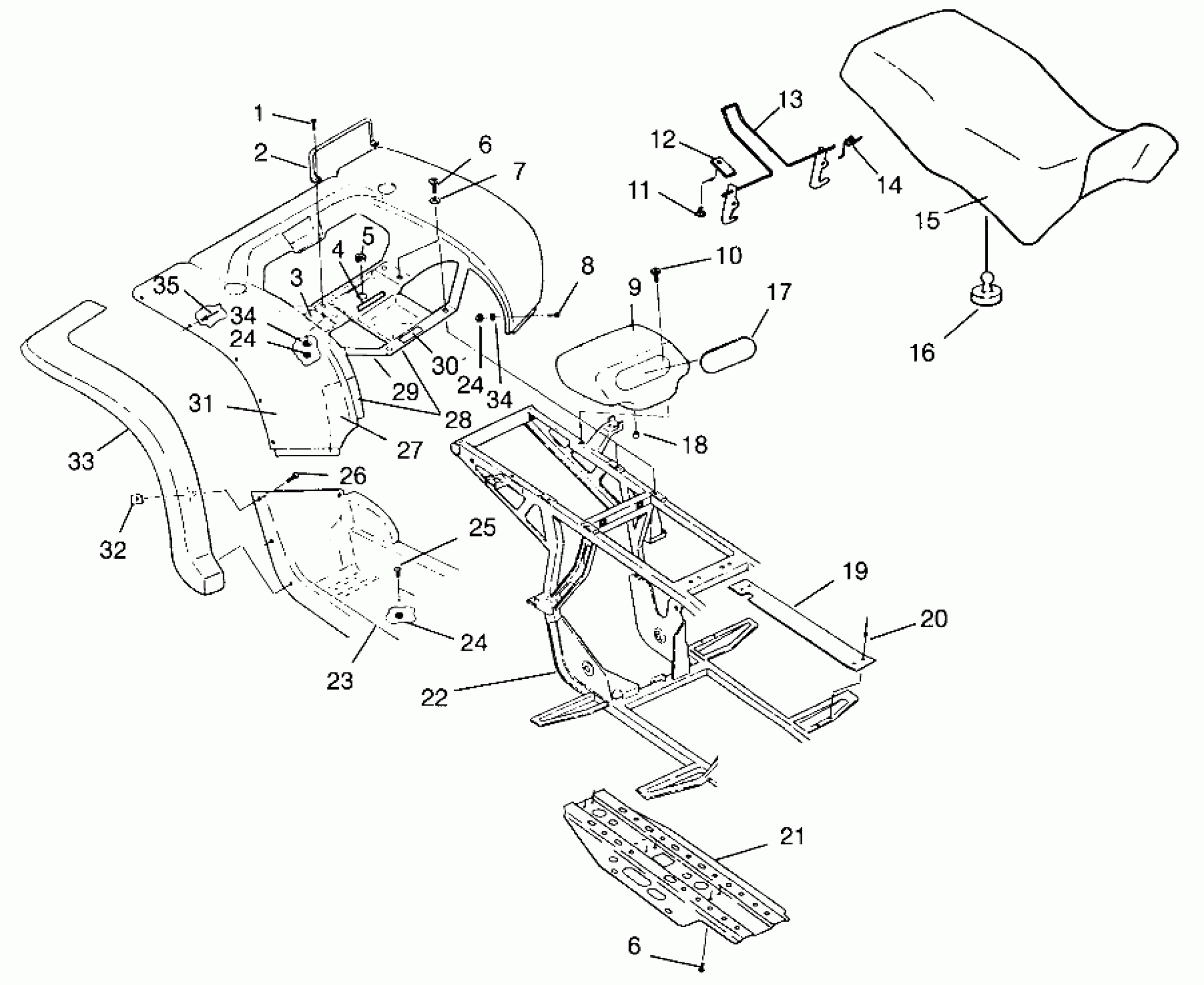

Polaris XPLORER - W959140 REAR CAB and SEAT ASSEMBLY XPLORER 4X4 W959140 (4930223022A006) Diagram

#

Description
Price

1

SCREW(10)

7511930

$2.38

2

RETAINER,SEAT LATCH

5224592

Unavailable

3

FOIL,REAR CAB,REAR

5811107

Unavailable

4

DECAL,CARB.INFO.

7073761

Unavailable

5

Grommet

5411042

$6.35

6

BOLT(10)

7512232

$1.19

6

BOLT(10)

7512232

$1.19

7

WASHER, FLAT(10)

7555859

$1.19

8

SCREW(10) Substituted by 7511989

7512085

Unavailable

9

TOOLBOX

5431786

$53.17

10

BOLT(10)

7512246

Unavailable

11

BLIND RIVET(50)

7621403

$1.19

12

BRACKET,LEVER RETAINER

5211033

$34.99

13

LATCH,SEAT

1040387

$48.56

14

SPRING, LATCH

7041370

$9.52

15

COVER,SEAT,BLK.

2681747-070

$149.75

15

FOIL,SEATBASE,LG.

5811104

Unavailable

15

FOIL,SEATBASE,SM.

5811105

$9.84

15

SEAT ASM,BLK. Substituted by 2682201-070 (Incl. 11-16)

2681746-070

$445.22

16

Bumper, Rubber

5410414

$3.17

17

COVER, TOOLBOX

5431787

Unavailable

18

CAP,DRAIN

5410896

$5.65

19

GUARD,CLUTCH,OUTER

5222860-067

$7.06

20

RIVET-3/16-.090-.290

7661637

$1.19

21

GUARD,ROCK,BLK.

5240560-067

$87.99

22

FRAME,MAIN,BLK. Substituted by 1040505-067

1040372-067

Unavailable

23

FOOTWELL,LH,NY,BLK.

5432056-070

$230.70

23

FOOTWELL,RH,NY,BLK. Substituted by 5432374-070

5432057-070

Unavailable

24

NUT(10)

7541925

$0.79

24

NUT(10)

7541925

$0.79

24

NUT(10)

7541925

$0.79

25

SCREW(10)

7512080

Unavailable

26

BOLT(10)

7512240

$3.97

27

FOIL FOAM

5811111

Unavailable

28

FOIL,FR,REAR CAB

5811106

Unavailable

29

FOIL-FOAM,(6X1)

5811087

Unavailable

30

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

31

CAB,REAR,P.RED Substituted by 5432117-136

5431795-136

Unavailable

32

NUT, SPEED(10)

7670057

$1.19

33

MUDGUARD,LH,R.BLK. Substituted by 5431796-070

5431796

Unavailable

33

MUDGUARD,RH,R.BLK. Substituted by 5431797-070

5431797

Unavailable

34

WASHER(10)

7555792

$4.76

34

WASHER(10)

7555792

$4.76

35

RIVET(50)

7661645

Unavailable
