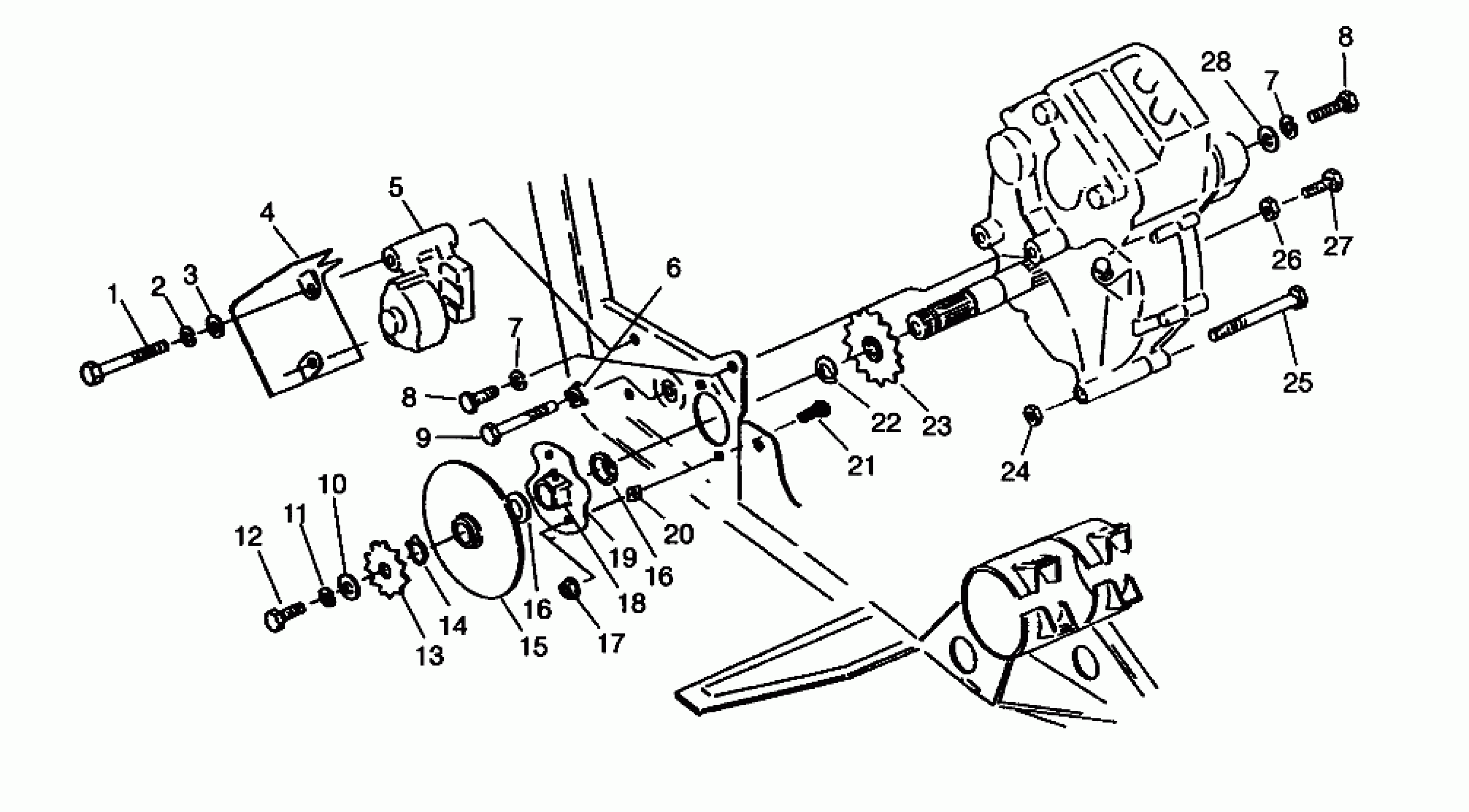

Polaris XPLORER - W959140 GEARCASE/BRAKE and CHAIN COVER MOUNTING XPLORER 4X4 W959140 (4930223022C006) Diagram

#

Description
Price

1

BOLT(10)

7515345

$5.59

2

LOCK WASHER(10)

7552901

$1.49

3

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

4

SHIELD,R.CALIPER,BLK.

5240149-067

Unavailable

5

CALIPER ASM,R.BRAKE Substituted by 1910224

1910180

Unavailable

6

Plate, Bolt Lock (See Pg., Ref.)

-------

Unavailable

7

WASHER(10)

7552603

$1.49

7

WASHER(10)

7552603

$1.49

8

BOLT(10)

7515522

$3.99

8

BOLT(10)

7515522

$3.99

9

Bolt, Shoulder (See Pg., Ref.)

-------

Unavailable

10

Washer (See Pg., Ref.)

-------

Unavailable

11

Washer, Spring Lock (See Pg., Ref.)

-------

Unavailable

12

Bolt (See Pg., Ref.)

-------

Unavailable

13

Sprocket, 11T (See Pg., Ref.)

-------

Unavailable

14

Ring, Retaining (See Pg., Ref.)

-------

Unavailable

15

Weld., Brake Disc (See Pg., Ref.)

-------

Unavailable

16

SEAL, BRAKE

3610026

$7.99

16

SEAL, BRAKE

3610026

$7.99

17

NUT,FLANGE LOCK(10)

7542449

$3.99

18

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

19

BRG.ASM,O/P SHAFT

1590237

$84.99

20

SPACER,(10)

5210764

Unavailable

20

SHIM,(.030)

5211517

Unavailable

20

SHIM,(.010) Substituted by 5211065

5211518

Unavailable

21

BOLT,CARRIAGE(10)

7515484

Unavailable

23

Sprocket, 13T (See Pg., Ref.)

-------

Unavailable

24

NUT LOCK(10)

7542403

$3.99

25

BOLT(10)

7515472

$2.39

26

NUT(10)

7542404

$1.59

27

BOLT(10)

7515485

$3.03

28

WASHER Substituted by 7555720

7555784

Unavailable
