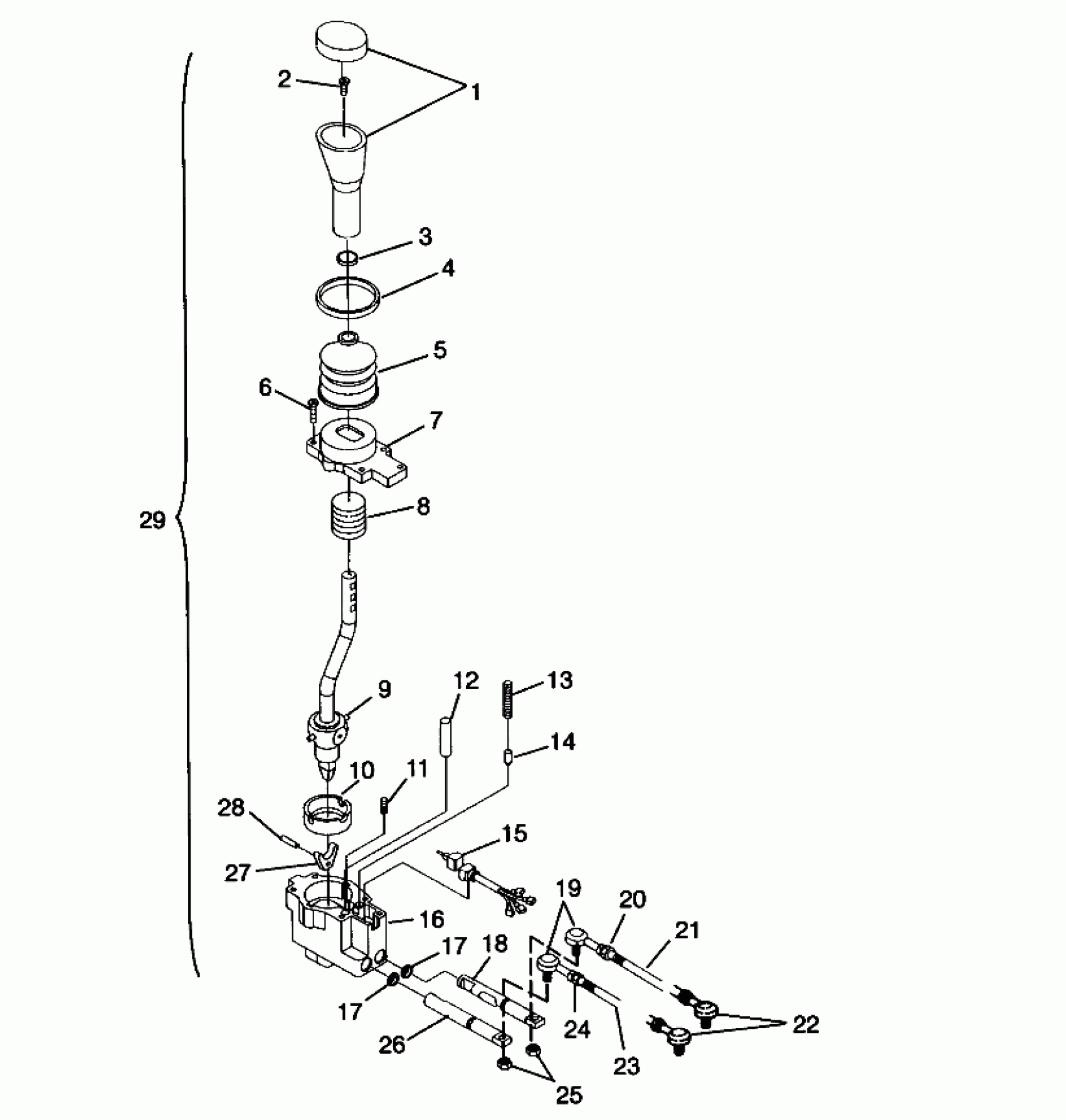

Polaris XPLORER - W959140 GEAR SELECTOR XPLORER 4X4 W959140 (4930223022C010) Diagram

#

Description
Price

1

KNOB ASM,HI/LO/REV. Substituted by 3233195-070

3233195

$49.99

2

SCREW,(10)

7512024

$4.79

3

Strap, Wire

3233131

$9.70

4

CLAMP

3233132

Unavailable

5

BOOT,GEAR SELECTOR Substituted by 3233368

3233133

$74.04

6

SCREW Substituted by 3233498

3233085

Unavailable

7

COVER,GEARSELECT,5-BOLT

3233204

Unavailable

8

SPRING,HOLDING

3233158

Unavailable

9

HANDLE SUBASM,(GS GEN IV)

3233197

Unavailable

10

CUP,BEARING

3233063

$15.99

11

SPRING,CENTERING

3233083

Unavailable

12

PIN, STOP

3233062

Unavailable

13

SPRING,DETENT

3233069

Unavailable

14

BULLET,DETENT

3233060

$64.99

15

SWITCH,GEAR SELECTOR Substituted by 3233371

3233138

$309.99

16

BODY,GEARSELECT,5-BOLT Substituted by 3233343

3233205

Unavailable

17

O-RING

3233076

$6.39

17

O-RING

3233076

$6.39

18

SLIDE,HIGH/REV.

3233088

Unavailable

19

ROD END, RH Substituted by 7061014

7060142

$65.33

20

NUT(10)

7546702

$1.49

21

ROD,HI-RA.SHIFTLINK

5020729

Unavailable

22

ROD END, LH Substituted by 7061013

7060141

$65.33

23

ROD,LOW-RA.SHIFTLINK

5020730

Unavailable

24

NUT(10)

7546701

$3.99

25

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

26

SLIDE,LOW

3233089

Unavailable

27

INTERLOCK,BUTTERFLY

3233084

Unavailable

28

PIN,INTERLOCK

3233070

Unavailable

29

SELECTOR ASM,GEAR,GEN IV Substituted by 1341182 (Incl. 1-18, 26-28)

1341168

Unavailable
