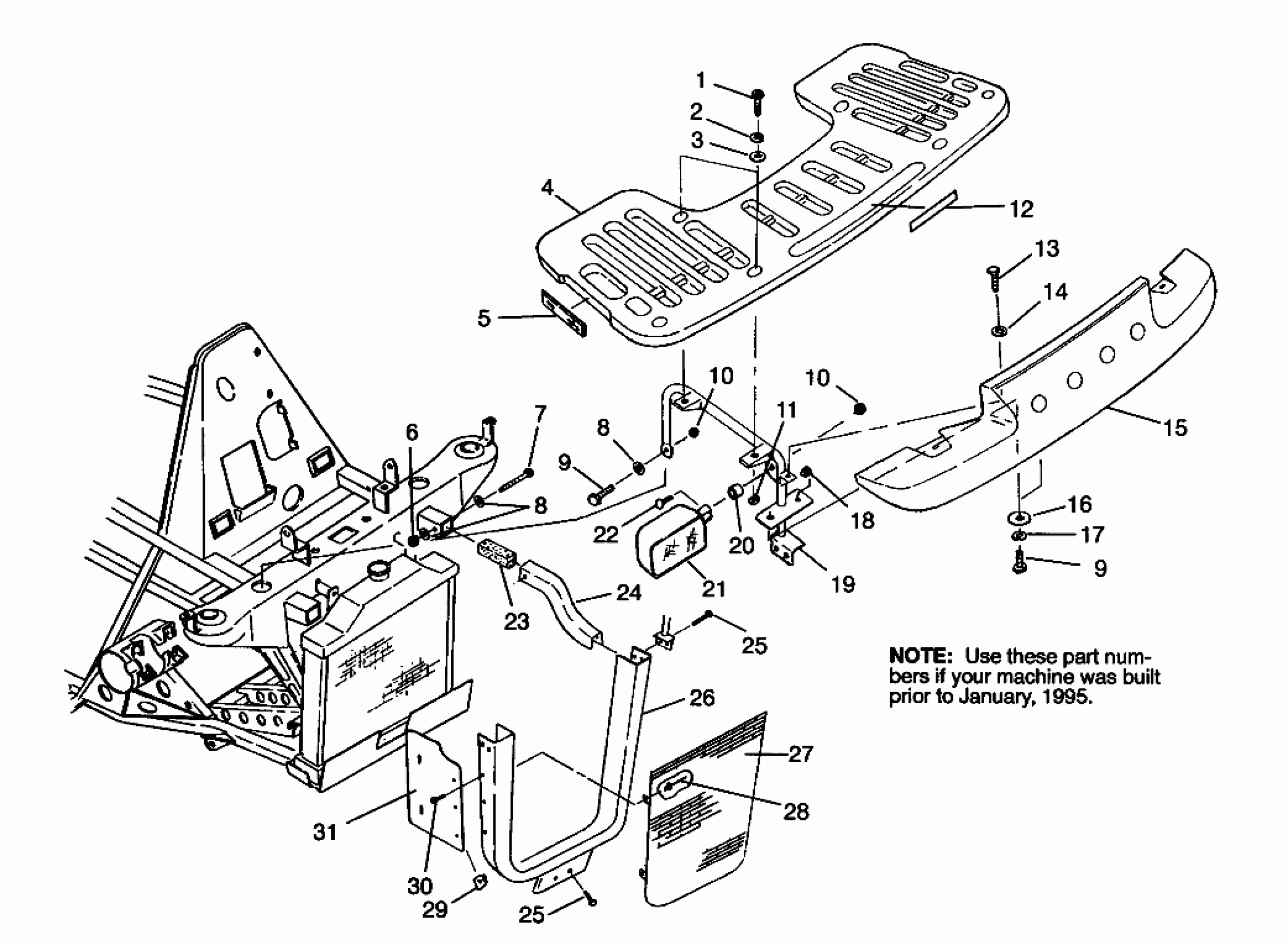

Polaris XPLORER - W959140 FRONT RACK and BUMPER MOUNTING XPLORER 4X4 W959140 (4930223022A009) Diagram

#

Description
Price

1

SCREW(10)

7512279

$1.49

2

WASHER(10)

7552605

$5.27

3

WASHER(10) Substituted by 7558301

7555776

Unavailable

4

RACK ASM,FRONT Substituted by 2670180-070 (Incl. 4, 5, 12)

2670180

Unavailable

5

REFLECTOR AMBER

2670071

Unavailable

6

NUT-5/16-18 NYLOK-Y

7542324

$1.49

7

BOLT(10)

7512329

$3.99

8

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

8

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

9

SCREW(10)

7512310

$2.39

9

SCREW(10)

7512310

$2.39

10

NUT, NYLOK(10)

7542327

$4.79

10

NUT, NYLOK(10)

7542327

$4.79

11

NUT, RETAINER(10)

7542141

Unavailable

12

DECAL,REAR DECK

7074954

Unavailable

13

SCREW(10) Substituted by 7515399

7515386

Unavailable

14

WASHER WROUGHT(10)

7558403

$4.79

15

BUMPER,FRT,BLK. Substituted by 5432155-070

5431773-070

$142.86

16

WASHER FLAT(10)

7555701

$3.99

17

LOCK WASHER(10)

7552901

$1.49

18

NUT,RETAINER(10)

7542339

Unavailable

19

SUPPORT,LH,FR.RACK,BLK.

1040378-067

$147.60

19

SUPPORT,RH,FR.RACK,BLK.

1040379-067

$138.08

20

SPACER,H/L,BLK.

5020809

Unavailable

21

BULB,HI-BEAM

4030048

$29.03

21

H/L.ASM,RH(37.5 WATT)

4032074

Unavailable

21

H/L.ASM,LH(37.5 WATT)

4032082

Unavailable

22

BOLT(10)

7515333

Unavailable

23

PLUG, FRAME

5810467

Unavailable

24

EXTENSION,RH FRAME Substituted by 5241399-067

5240593-067

Unavailable

24

EXTENSION,LH FRAME Substituted by 5241398-067

5240592-067

$91.27

25

SCREW(10)

7512253

$3.99

25

SCREW(10)

7512253

$3.99

26

GUARD, BRUSH Substituted by 5241583-067

5240590-067

Unavailable

27

GRILL,BRUSHGUARD,BLK.

5240591-067

$62.99

28

RIVET, POP(50)

7621330

$1.49

29

NUT,U-TYPE(10)

7670089

$5.59

30

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

31

SHIELD,LH RADIATOR NOTE: Use these part numbers if your machine was built prior to January, 1995.

5431814

Unavailable

31

SHIELD,RH RADIATOR

5431815

Unavailable
