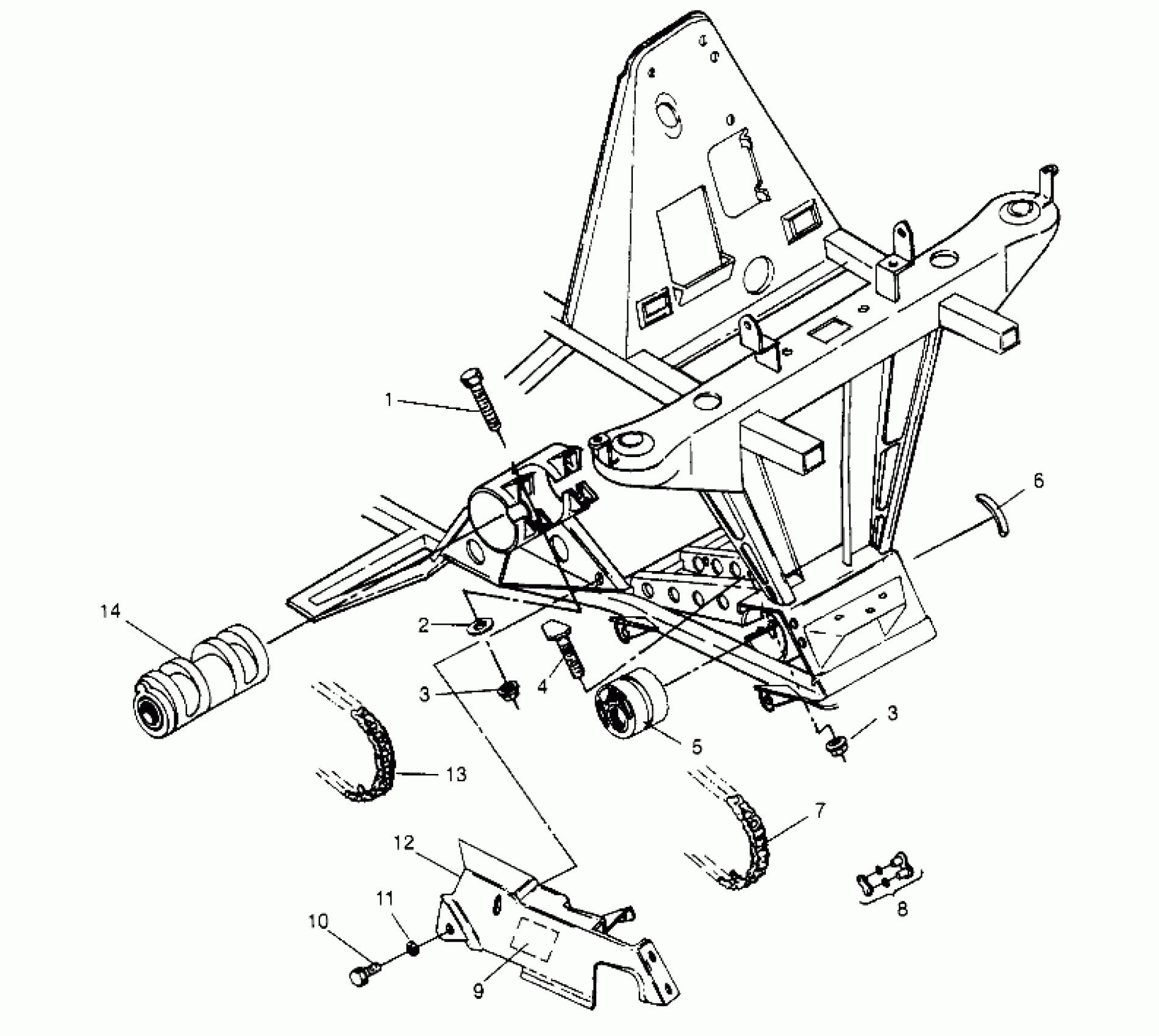

Polaris XPLORER - W959140 FRONT DRIVE ASSEMBLY XPLORER 4X4 W959140 (4930223022B003) Diagram

#

Description

Price

1

BOLT(10)

7512583

Unavailable

2

WASHER(10)

7555883

$3.97

3

NUT, LOCK,(10)

7542503

$10.32

3

NUT, LOCK,(10)

7542503

$10.32

4

BOLT, FLAG(10)

7512577

Unavailable

5

Asm., Front Tightener (See Pg., Ref.)

----

Unavailable

6

SPACER,F.ECCENTRIC Substituted by 5811519

5431095

Unavailable

7

CHAIN, DRIVE Substituted by 3224056-064

3224041

$105.22

8

CONNECTOR LINK

3225024

$24.27

9

BOLT(10)

7512232

$1.19

10

WASHER(10) Substituted by 7558301

7555776

$1.19

11

TAPE,FOIL,PAN#3

5810493

Unavailable

12

GUARD,CHAIN,FRONT

5431472

Unavailable

13

CHAIN, DRIVE Substituted by 3224056-070 (70P)

3224044

$113.32

14

Asm., Center Tightener (See Pg., Ref.)

----

Unavailable
