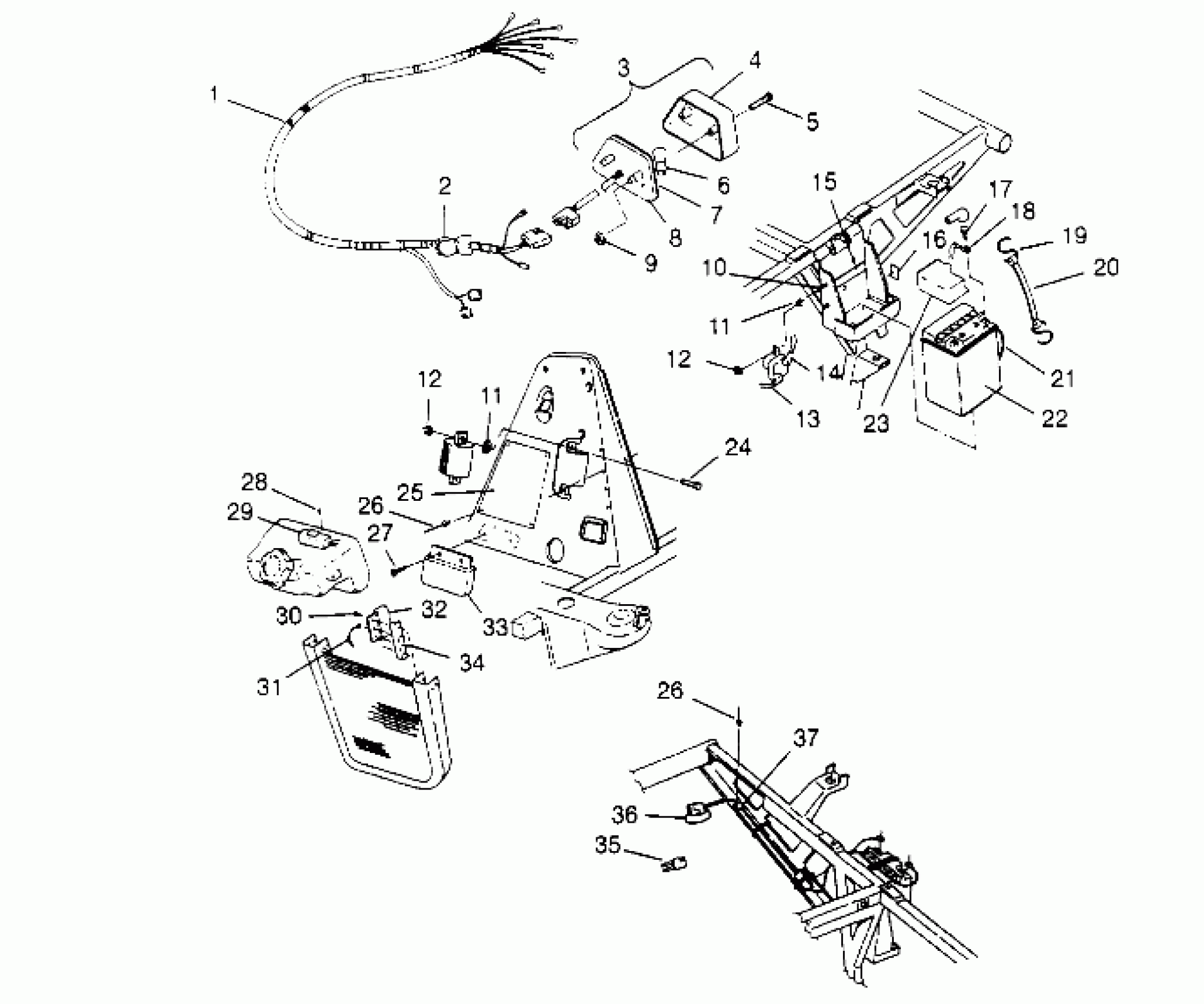

Polaris XPLORER - W959140 ELECTRICAL/TAILLIGHT ASSEMBLY XPLORER 4X4 W959140 (4930223022C009) Diagram

#

Description
Price

1

HARNESS,MAIN WIRE

2460522

Unavailable

2

KIT,CKT.BRKR,20 AMP

2200593

$63.99

3

TAIL LIGHT ASM.

2432034

$55.99

4

LENS,TAILLIGHT

4032046

$32.37

5

Screw, Taillight

4032029

$4.79

6

BULB,TAILLIGHT

4030043

$6.46

7

GASKET,TAILLIGHT

4032045

$4.03

8

BACKING,TAILLIGHT

4032064

$83.99

9

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

10

SCREW(10)

7512027

$1.49

11

WASHER(10)

7571602

$4.79

11

WASHER(10)

7571602

$4.79

12

NUT(10)

7541925

$1.49

12

NUT(10)

7541925

$1.49

13

CABLE,SOLENOID/STARTER

4010064

Unavailable

14

CABLE,SOLENOID-STRTR.

4010075

Unavailable

15

PAD-BATTERY

5810290

$7.27

16

DECAL, BATTERY [No Longer Available]

7072606

Unavailable

17

BOLT,BATT,KIT(SHORT) (Short)

2200361

$3.99

18

CABLE,BATTERY-SOLENOID

4010076

Unavailable

19

HOOK-BATT.H/D(10)

7010032

$1.59

20

STRAP,BATTERY HOLDDOWN

5410424

Unavailable

21

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

22

Battery

4140006

$99.99

23

COVER,BATTERY

5431769

$14.39

24

SCREW(10)

7512007

$3.99

25

BOARD,TERMINAL,150W.(ATV) Substituted by 4040063

4040049

Unavailable

26

RIVET,(50)

7621336

$1.59

26

RIVET,(50)

7621336

$1.59

27

SCREW,(10)

7512024

$4.79

28

BOLT(10)

7511864

$4.79

29

BRACKET-CDI

5241416

$5.75

30

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

31

HARNESS,JUMPER,RECTIFIER

2460485

Unavailable

32

RECTIFIER,SWITCHING

4060113

Unavailable

33

LIMITER,RPM,350HZ. Substituted by 4060203

4060112

Unavailable

34

HEATSINK RECT.

5131036

Unavailable

35

PIGTAIL, POWER

2460442

$12.39

36

POWER ASM,12V

2410022

Unavailable

37

CLAMP,BLK,5/16 PLASTIC(10)

7080524

Unavailable
