Description

Price

1

NUT-LOCK(10)

7542122

$1.49

2

WASHER(10)

7558301

$1.49

3

HOSE,LOWER ENGINE Substituted by 5411173

5410572

$88.79

4

HOSE,ENG,UPPER

5410570

$44.51

5

CLAMP-HOSE Substituted by 7080547

7080225

Unavailable

6

SWITCH,THERMAL FAN

4110178

Unavailable

7

DECAL(CPSC),RAD.CAP

7073068

Unavailable

8

CAP, RADIATOR Substituted by 2511270

2511189

Unavailable

9

RADIATOR,"U"FLOW

1240015

Unavailable

10

COVER,RADIATOR,W/MESH

5431760

Unavailable

11

O RING

5410607

$5.99

12

SCREW(10)

7512113

$3.99

13

WASHER(10)

7552605

$5.27

14

Spacer, Mount

5020572

$8.79

15

Mount, Rubber

3110032

$7.99

16

NUT

3083952

Unavailable

17

BLADE, FAN

5240822

$57.59

18

BUSHING

3083950

Unavailable

19

BOLT(10)

7512232

$1.49

20

BRKT,COOLING FAN Substituted by 5224741-067

5222559-067

Unavailable

21

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

22

NUT(10)

7541915

Unavailable

23

COVER

3083951

Unavailable

24

SPACER, FAN BRKT.

5333073

$3.83

25

MOTOR, FAN Substituted by 3084266

2410006

Unavailable

26

WASHER, FLAT(10)

7558201

$5.79

27

SCREW(10)

7511874

Unavailable

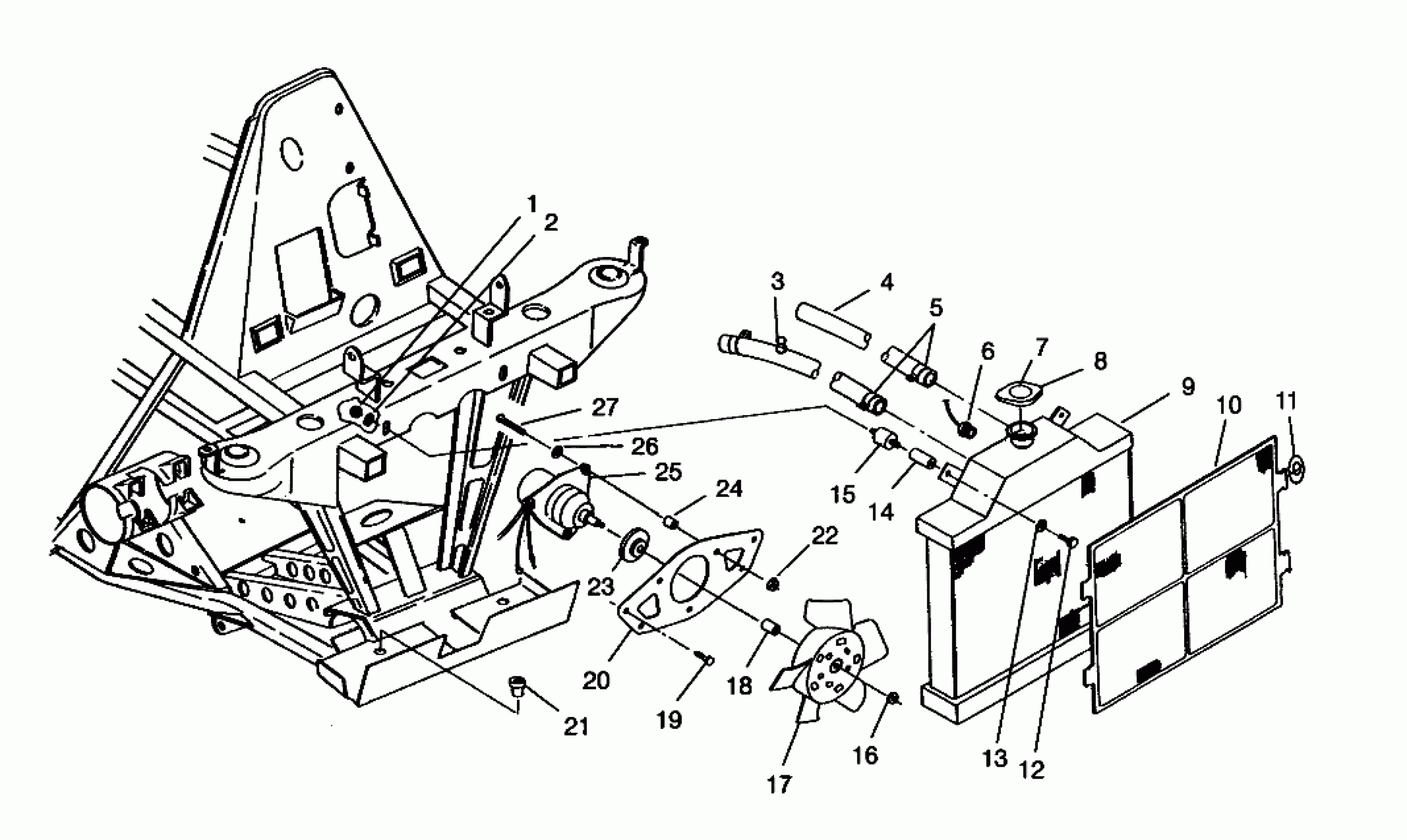

Polaris XPLORER - W959140 COOLING SYSTEM XPLORER 4X4 W959140 (4930223022A012) Diagram

NUT-LOCK(10)

WASHER(10)

HOSE,LOWER ENGINE Substituted by 5411173

HOSE,ENG,UPPER

CLAMP-HOSE Substituted by 7080547

SWITCH,THERMAL FAN

DECAL(CPSC),RAD.CAP

CAP, RADIATOR Substituted by 2511270

RADIATOR,"U"FLOW

COVER,RADIATOR,W/MESH

O RING

SCREW(10)

WASHER(10)

Spacer, Mount

Mount, Rubber

NUT

BLADE, FAN

BUSHING

BOLT(10)

BRKT,COOLING FAN Substituted by 5224741-067

BUSHING-MOUNT,LOWER RADIATOR

NUT(10)

COVER

SPACER, FAN BRKT.

MOTOR, FAN Substituted by 3084266

WASHER, FLAT(10)

SCREW(10)
