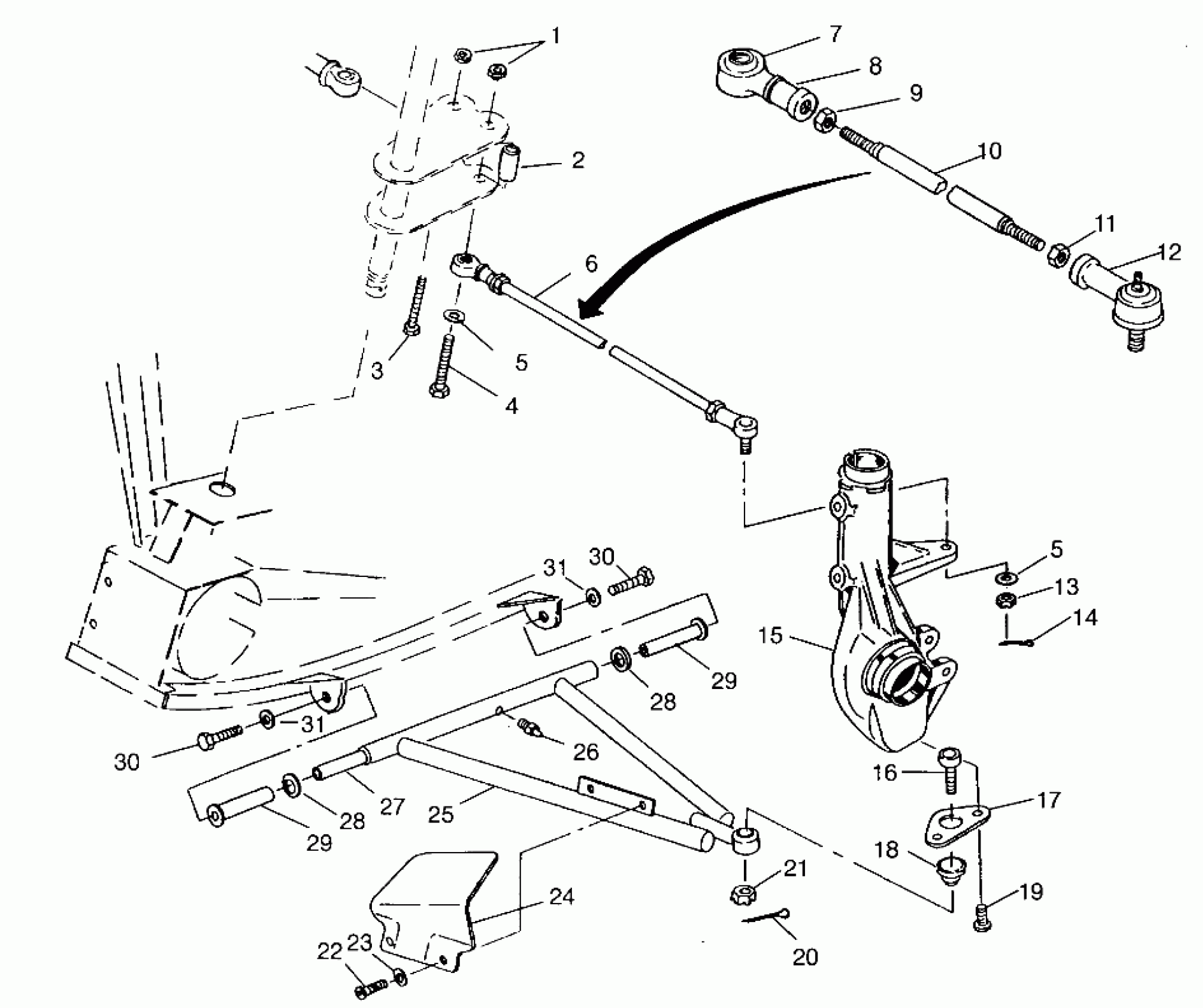

Polaris XPLORER - W959140 A-ARM/STRUT MOUNTING XPLORER 4X4 W959140 (4930223022B014) Diagram

#

Description
Price

1

NUT LOCK(10)

7542403

$3.99

2

BUSHING

5333367

$6.63

3

BOLT(10)

7515415

$1.49

4

BOLT(10) Substituted by 7515554

7515507

Unavailable

5

WASHER(10)

7555806

$1.49

5

WASHER(10)

7555806

$1.49

6

TIE ROD ASM. Substituted by 1822478 (Incl. 7-12)

1822202

Unavailable

7

BOOT, SEAL, ROD END

5410540

$7.19

8

ROD END, RH Substituted by 1822179

7060149

Unavailable

9

NUT HEX(10)

7542401

$2.39

10

ROD, TIE

5020768

$48.87

11

NUT, LH, 10 MM.(10)

7546902

Unavailable

12

ROD END,LH,W/FTG,10 MM.

7060171

$55.99

13

NUT, CASTLE(10)

7546904

$4.79

14

PIN COTTER(10)

7661203

$1.49

15

Asm., Hub Strut, LH (See Pg., Ref.)

-------

Unavailable

15

Asm., Hub Strut, RH (See Pg., Ref.)

-------

Unavailable

16

BALL JOINT Substituted by 7080673

7080364

Unavailable

17

BRACKET-BALL JOINT

5211121

$31.99

18

Boot, Rubber

5410548

Unavailable

19

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

20

COTTER PIN(10)

7661401

$1.49

21

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

22

SCREW(10)

7512017

$4.79

23

WASHER(10)

7555792

$4.79

24

SHIELD,RH CV JOINT Substituted by 5431149-070

5431149

$24.27

24

SHIELD,LH CV JOINT Substituted by 5431150-070

5431150

Unavailable

25

KIT,A-FRAME,LH Substituted by 2200627

2200531

$123.70

25

KIT,A-FRAME,RH Substituted by 2200628

2200532

$123.70

26

ZERK,FITTING,THREADED(10)

7080433

$1.49

27

Shaft, A-Arm

5020681

Unavailable

28

BUSHING,A-ARM SPACER(10)

5020677

$10.39

28

BUSHING,A-ARM SPACER(10)

5020677

$10.39

29

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

Unavailable

29

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

Unavailable

30

BOLT(10) Substituted by 7512492

7515458

Unavailable

30

BOLT(10) Substituted by 7512492

7515458

Unavailable

31

WASHER(10)

7552603

$1.49

31

WASHER(10)

7552603

$1.49
