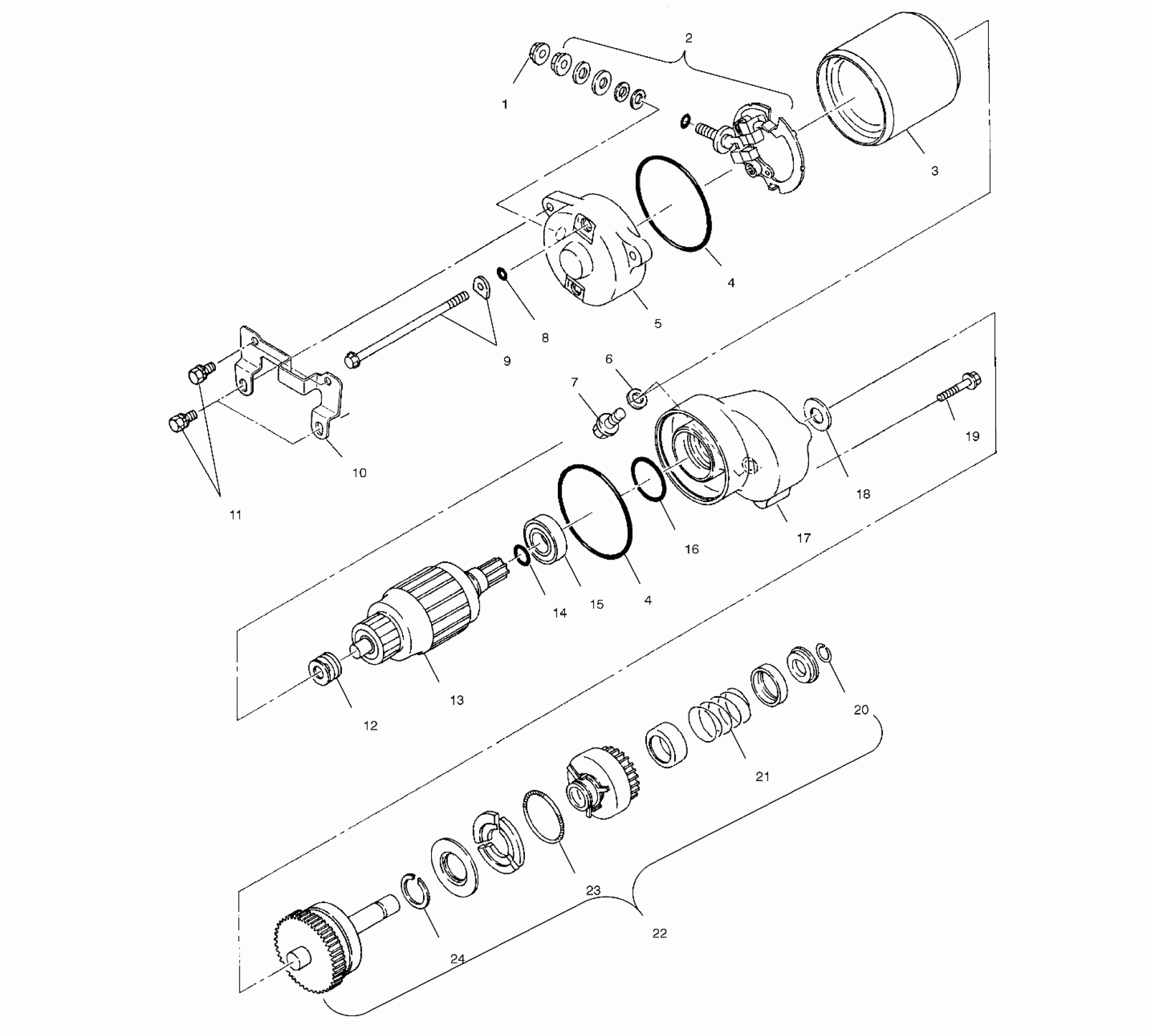

Polaris XPLORER 4X4 - A02CG25CA STARTING MOTOR - A02CG25CA (4969856985C11) Diagram

#

Description
Price

1

NUT, FLANGE

3083649

$3.97

2

Brush

3084406

$125.46

3

Asm., Starter [Incl. 1,2,4,5,8,9,12-17]

3085393

Unavailable

3

Asm., Starting Motor [Incl. 1-5,8,9,12-18,20-24]

3087043

Unavailable

4

RING, RUBBER

3084405

Unavailable

4

RING, RUBBER

3084405

Unavailable

5

Cover, Rear

3085032

$81.75

6

Gasket, Aluminum

3082758

$1.19

7

Bolt, Flange

3086782

$3.97

8

O-RING

3084408

Unavailable

9

Bolt

3084407

Unavailable

10

Bracket

3083650

Unavailable

11

Bolt and Washer

3081665

$3.17

12

Washer Set

3083754

$2.38

13

Asm., Armature [Incl. 14,15]

3084404

$142.99

14

O-Ring

3083934

Unavailable

15

Bearing, Ball

3083777

$31.75

16

O-Ring

3083741

$9.37

17

Front Cover [Incl. 16]

3085305

$123.02

18

Washer, Gear Shaft

3083737

$3.17

19

Bolt and Washer

3082038

$3.97

20

CLIP

3084409

$7.14

21

SPRING, RETURN

3084410

Unavailable

22

Asm., Gear Shaft [Incl. 18,20,21,23,24]

3087030

$271.10

23

SPRING, WEIGHT

3084411

$15.56

24

CLIP

3084412

$9.52
