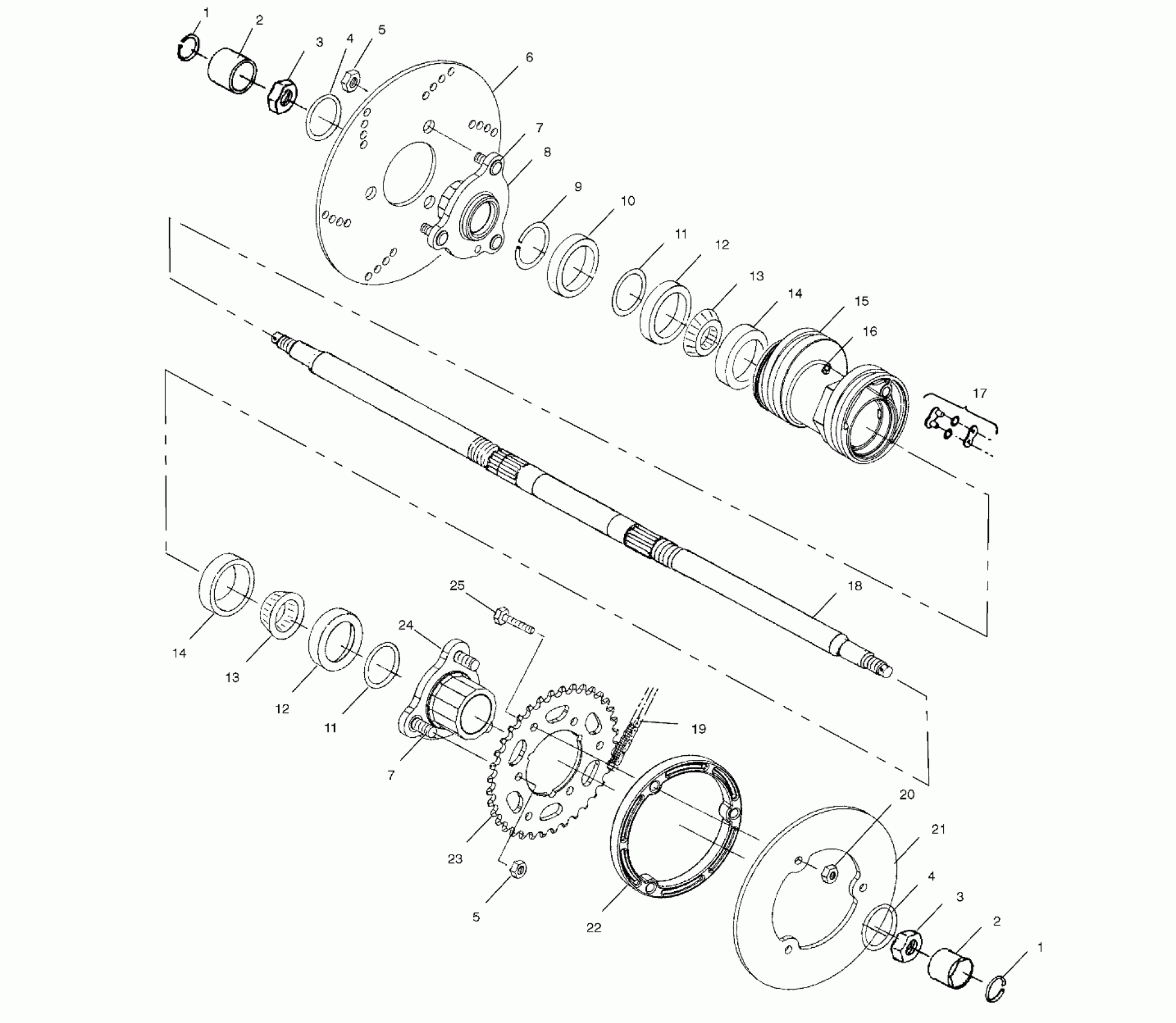

Polaris XPLORER 4X4 - A02CG25CA REAR HOUSING - A02CG25CA (4969856985B11) Diagram

#

Description
Price

1

Ring, Retaining

7710472

$5.56

1

Ring, Retaining

7710472

$5.56

2

Retainer, Nut

5510313

$54.99

2

Retainer, Nut

5510313

$54.99

3

Nut [If built before 12/03/01]

7547031

$27.78

3

Nut [If built after 12/03/01]

7547196

Unavailable

3

Nut [If built before 12/03/01]

7547031

$27.78

3

Nut [If built after 12/03/01]

7547196

Unavailable

4

Seal, Foam

5411555

$13.75

4

Seal, Foam

5411555

$13.75

5

Nut, Nylok

7542439

$1.19

5

Nut, Nylok

7542439

$1.19

6

Disc, Brake

5243678

Unavailable

7

Stud

7515513

$1.19

7

Stud

7515513

$1.19

8

Asm., Brake Disc Hub [Incl. 7]

1520259

Unavailable

9

Ring, Retaining

7710405

$4.76

10

Spacer, Axle

5010462

$27.78

11

O-Ring

5410889

Unavailable

11

O-Ring

5410889

Unavailable

12

Seal

3610070

$16.17

12

Seal

3610070

$16.17

13

Bearing, Cone, Tapered

3554518

$39.68

13

Bearing, Cone, Tapered

3554518

$39.68

14

Bearing, Cup, Tapered

3554517

$15.87

14

Bearing, Cup, Tapered

3554517

$15.87

15

Housing, Axle, Rear

5132098

$126.57

16

Fitting, Lubrication

7080306

$3.17

17

Link, Connector

3225026

$32.37

18

Axle, Rear [If built before 12/03/01]

5131968

$699.99

18

Axle, Rear [If built after 12/03/01]

5133181

$699.99

19

Chain

3224056-080

$137.60

20

NUT, FLANGE LOCK

7547108

$4.76

21

Guard, Sprocket, 42T

5211618-067

Unavailable

22

Spacer

5630586

Unavailable

23

Sprocket, 42T

3222070

Unavailable

24

Asm., Sprocket Hub [Incl. 7]

1520258

$109.27

25

Bolt

7512404

$3.97
