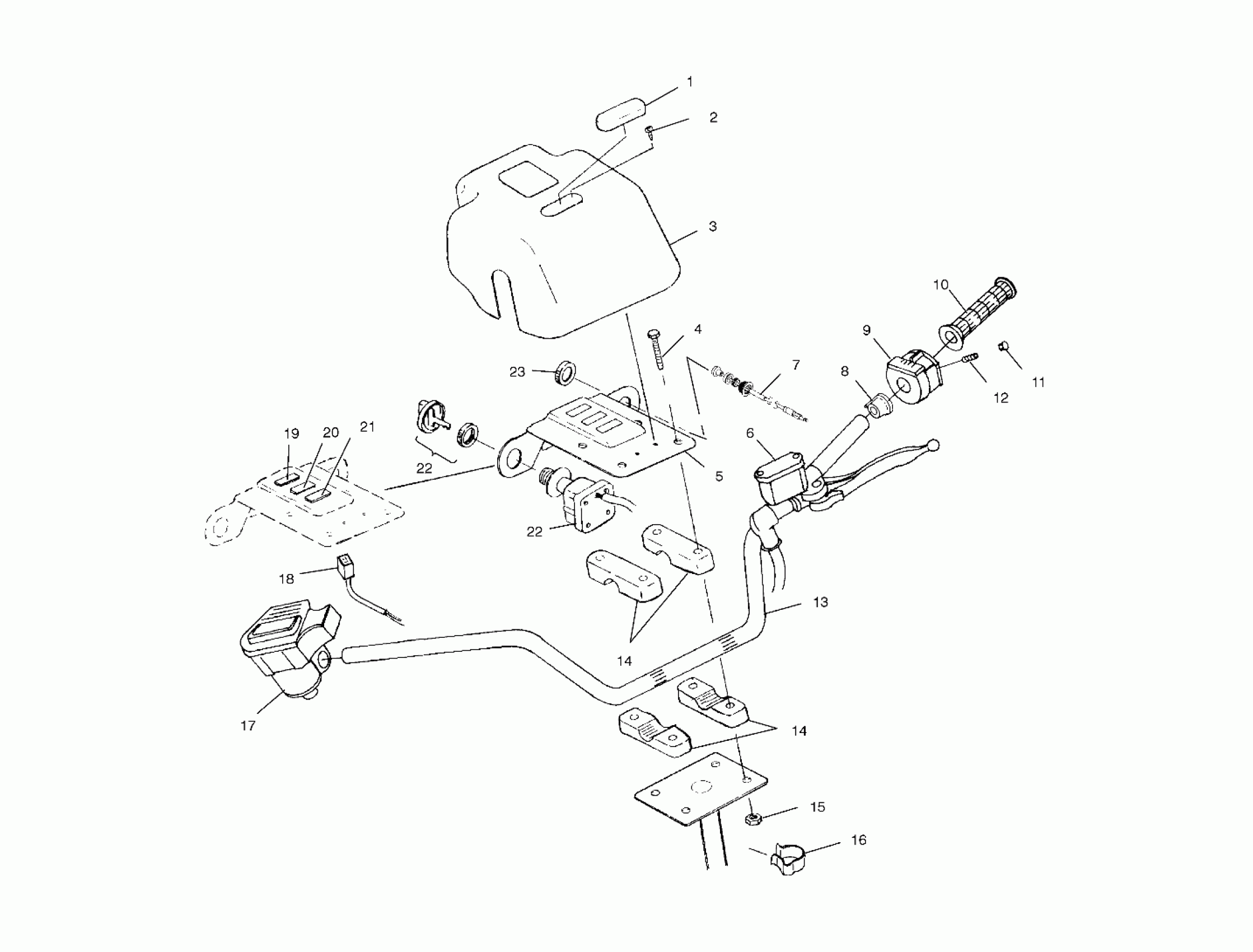

Polaris XPLORER 4X4 - A02CG25CA HANDLEBAR - A02CG25CA (4969856985A12) Diagram

#

Description
Price

1

Cover, Logo

5432247-070

Unavailable

2

SCREW

7512024

$4.76

3

Panel, Instrument

5433842-070

Unavailable

4

Screw

7517216

Unavailable

5

Bracket, Instrument Panel

5244292-067

Unavailable

6

ASM., MASTER CYLINDER [See Control - Master Cyl./Brake Line Pg. B7 for Details]

----

Unavailable

7

Cable, Choke

7081008

$80.94

8

Spacer, Switch, LH

5433903

Unavailable

9

Switch, Handlebar, Hi/Lo/Off

4010423

$47.49

10

Grip, Handlebar

5433834-070

$28.32

11

PLUG, HOLE

5432952

$6.46

12

Screw

7517625

$4.76

13

Tube, Handlebar

5224715-067

Unavailable

14

Block, Handlebar

5630629

$11.51

14

Block, Handlebar

5630629

$11.51

15

Nut, Nylok

7542122

$1.19

16

Clip, Cable Retaining

7080631

Unavailable

17

ASM., THROTTLE CONTROL [See Controls - Throttle Asm./Cable Pg. B3, Ref. 3]

----

Unavailable

18

Harness, Indicator

2460777

$13.89

19

Indicator, Neutral/Reverse

4040054

$32.37

20

Indicator, "Hot Temperature"

4040053

$32.37

21

Plug

5430967

$6.46

22

BLANK, KEY, SERIES 2000, 2100, 6700, 6800

4010278

$14.56

22

KEY SWITCH KEY COVER

5433534

$13.75

22

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

$14.29

22

NUT-IGNITION SWITCH,HOBBS

5433733

$23.81

22

Switch, Ignition

4010390

$109.27

22

BLANK, KEY, SERIES 2000, 2100, 6700, 6800

4010278

$14.56

22

KEY SWITCH KEY COVER

5433534

$13.75

22

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

$14.29

22

NUT-IGNITION SWITCH,HOBBS

5433733

$23.81

22

Switch, Ignition

4010390

$109.27

23

Nut, Choke Slide

7080922

$3.17
