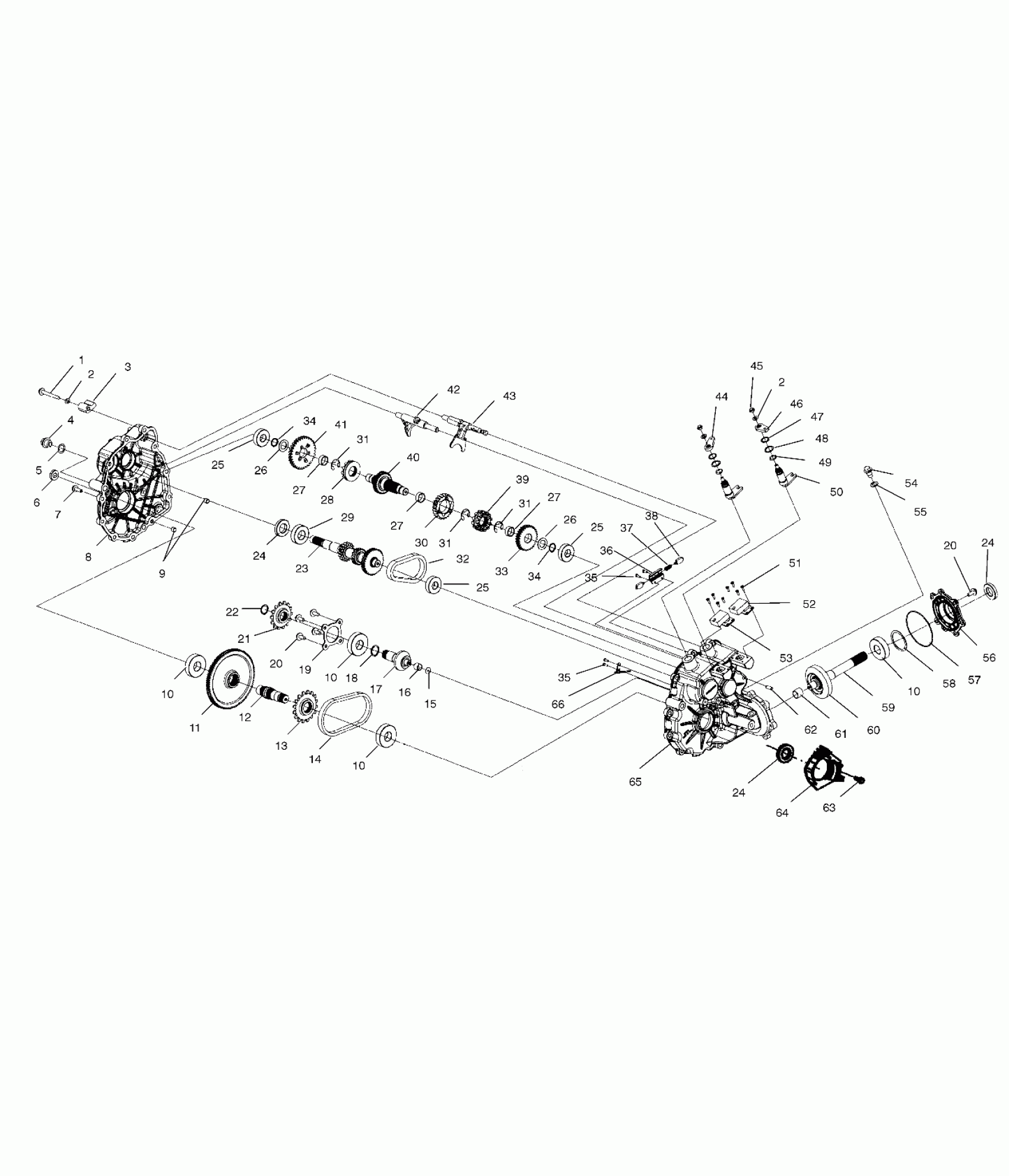

Polaris XPLORER 4X4 - A02CG25CA GEARCASE - A02CG25CA (4969856985C01) Diagram

#

Description
Price

-

Asm., Gearcase [Incl. 1-38]

1341381

Unavailable

1

Screw

3233734

$3.02

2

Washer

3233054

$6.46

2

Washer

3233054

$6.46

3

Dampener

3233735

Unavailable

4

Plug, Drain

3233448

$23.81

5

Washer

3233035

Unavailable

6

Bushing, Pivot

3233527

$39.99

7

Screw

3233252

$5.69

8

Gearcase, LH

3233632

$354.99

9

Pipe, Knock

3233529

$10.99

10

BEARING

3233020

$47.62

10

BEARING

3233020

$47.62

10

BEARING

3233020

$47.62

10

BEARING

3233020

$47.62

11

Gear, 100T

3233360

Unavailable

12

Shaft, Output

3233544

$174.99

13

Sprocket, 15/26T

3233729

$97.13

14

Chain, Roller

3233546

$68.79

15

Washer, Thrust

3233542

$11.32

16

Bushing, Garlock

3233541

$23.81

17

Shaft, Pinion 13T

3233540

$158.73

18

RING, RETAINING

3233306

$4.76

19

Cover, Bearing

3233263

Unavailable

20

Screw

3233539

Unavailable

20

Screw

3233539

Unavailable

21

Sprocket, 15/22T

3233730

Unavailable

22

Ring, Retaining

3233537

$6.99

23

Shaft, Input

3233704

Unavailable

24

Seal [If built before 4/01/01]

3233248

$32.37

24

Seal [If built after 4/01/01]

3233788

$32.37

24

Seal [If built before 4/01/01]

3233248

$32.37

24

Seal [If built after 4/01/01]

3233788

$32.37

24

Seal [If built before 4/01/01]

3233248

$32.37

24

Seal [If built after 4/01/01]

3233788

$32.37

25

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

25

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

25

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

26

Washer

3233176

$9.52

26

Washer

3233176

$9.52

27

BEARING, NEEDLE

3233718

$35.71

27

BEARING, NEEDLE

3233718

$35.71

27

BEARING, NEEDLE

3233718

$35.71

28

Engagement Dog, Low

3233732

$178.08

29

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

30

Sprocket, 24T

3233719

$109.27

31

Ring, Retaining

3233720

$9.52

31

Ring, Retaining

3233720

$9.52

31

Ring, Retaining

3233720

$9.52

32

Chain, Silent

3233036

Unavailable

33

Gear, 30T

3233722

Unavailable

34

Ring, Retaining

3233177

$6.46

34

Ring, Retaining

3233177

$6.46

35

Screw [If built after 4/01/01] [If built after 4/01/01]

3233747

Unavailable

35

Screw [If built before 4/01/01] [If built before 4/01/01]

3233033

Unavailable

35

Screw [If built after 4/01/01] [If built after 4/01/01]

3233747

Unavailable

35

Screw [If built before 4/01/01] [If built before 4/01/01]

3233033

Unavailable

36

Bracket, Interlock

3233309

$20.48

37

Spring

3233032

$13.75

38

Pin, Interlock

3233308

Unavailable

39

Engagement Dog, High/Reverse

3233721

Unavailable

40

Shaft, Reverse, 29T

3233733

Unavailable

41

Gear, 33T

3233731

Unavailable

42

Fork, Shift, Low

3233706

$119.05

43

Fork, Shift, High/Reverse

3233633

$141.65

44

Bellcrank

3233547

$56.99

45

Nut

3233055

$3.32

46

Bellcrank, High/Low/Reverse

3233153

$32.37

47

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.76

48

Washer

3233040

$9.52

49

O-Ring

3233548

$33.24

50

Shaft, Shift

3233549

Unavailable

51

Screw [If built after 4/01/01] [If built after 4/01/01]

3233749

$5.65

51

Screw [If built before 4/01/01] [If built before 4/01/01]

3233691

$5.65

52

Switch, High/Reverse

3233635

$174.99

53

Switch

3233617

Unavailable

54

Plug, Oil

3233711

Unavailable

55

Washer

3233324

$8.54

56

Cover, Snorkel

3233556

$31.11

57

O-Ring

3233555

$6.06

58

SHIM

3233554

Unavailable

59

Shaft, Snorkel [If built before 4/01/01] [If built before 4/01/01]

3233723

Unavailable

59

Shaft, Snorkel [If built after 4/01/01] [If built after 4/01/01]

3233899

$133.56

60

Gear, 25T If built after 4/01/01]

3233898

$229.37

61

BUSHING-GARLOCK

3233552

$23.81

62

Tube, Vent

3233037

Unavailable

63

Screw [If built after 4/01/01] [If built after 4/01/01]

3233026

$6.46

64

Guide, Chain [If built after 4/01/01] [If built after 4/01/01]

3233897

$59.99

65

Gearcase,RH [If built after 4/01/01] [If built after 4/01/01]

3233895

Unavailable

65

Gearcase,RH [If built before 4/01/01] [If built before 4/01/01]

3233799

Unavailable

66

Deflector, Oil

3233043

$13.10
