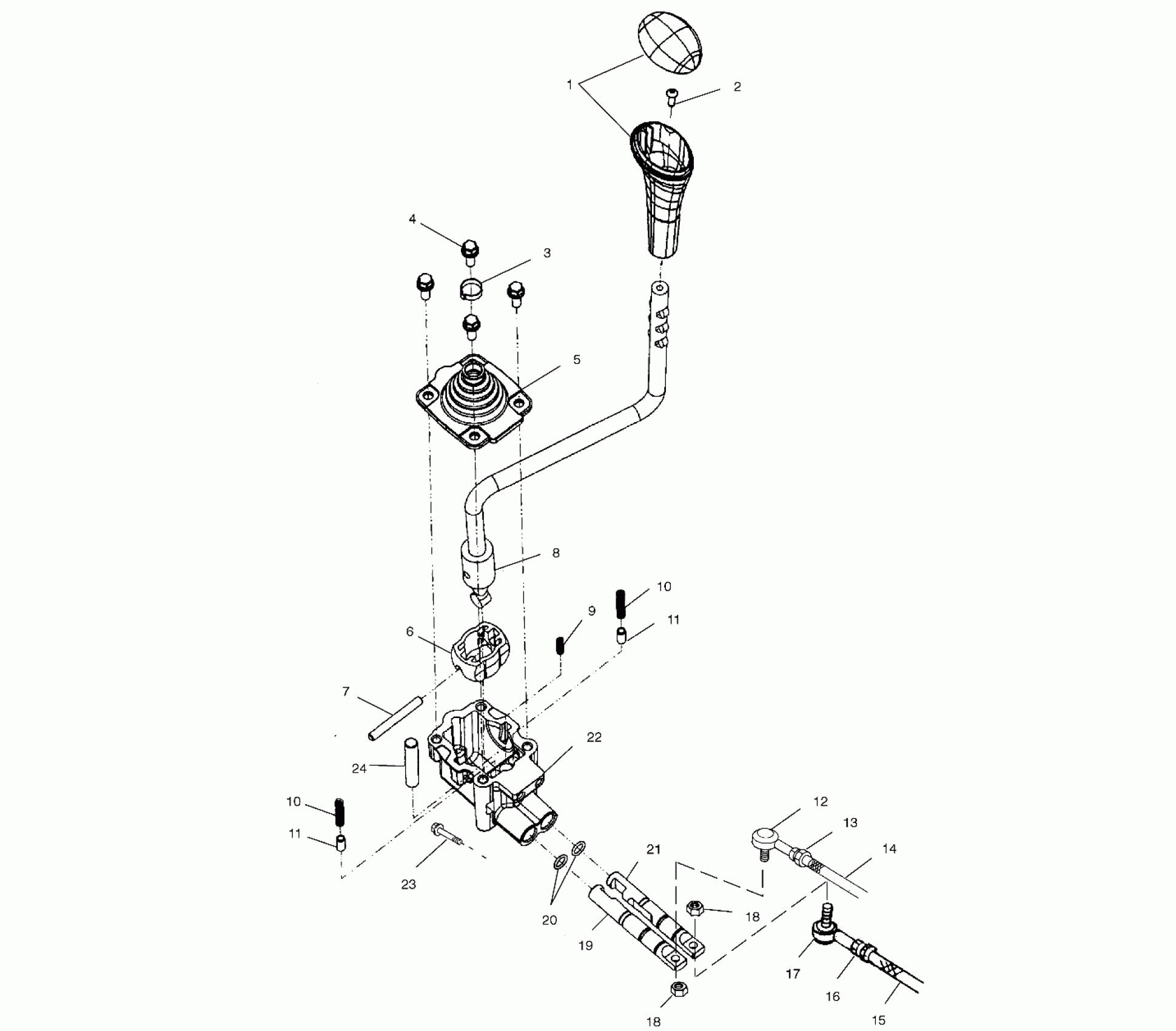

Polaris XPLORER 4X4 - A02CG25CA GEAR SELECTOR - A02CG25CA (4969856985B13) Diagram

#

Description
Price

-

Asm., Gear Selector [Incl. 1-11,19-22,24]

1341289

Unavailable

1

Asm., Knob

3233195

Unavailable

2

SCREW

7512024

$4.76

3

Strap, Wire

3233131

$9.70

4

Screw

3233649

Unavailable

5

Cover, Gear Selector Boot

3233648

$37.99

6

Sphere, Plastic

3233646

$16.14

7

Pin, Groove

3233645

$9.49

8

Rod, Gear Selector

3233647

Unavailable

9

Spring, Centering

3233643

$56.99

10

Spring, Detent

3233642

$16.99

10

Spring, Detent

3233642

$16.99

11

Bullet, Detent

3233060

$69.99

11

Bullet, Detent

3233060

$69.99

12

Rod End, 6mm, LH

7061013

$75.99

13

Nut, LH

7546702

$1.19

14

Rod, Shift Linkage, Low

5020743

Unavailable

15

Rod, Shift Linkage, Hi Range

5132042

Unavailable

16

Nut, RH

7546701

$3.97

17

Rod End, 6mm, RH

7061014

$75.99

18

Nut, FLEXLOC

7546707

$1.19

18

Nut, FLEXLOC

7546707

$1.19

19

Slide, Low

3233639

Unavailable

20

O-RING

3233076

$6.46

21

Slide, High/Reverse

3233640

Unavailable

22

Body, Gear Selector

3233641

Unavailable

23

SCREW

7512232

$1.19

24

Pin, Dowel

3233644

$7.99
