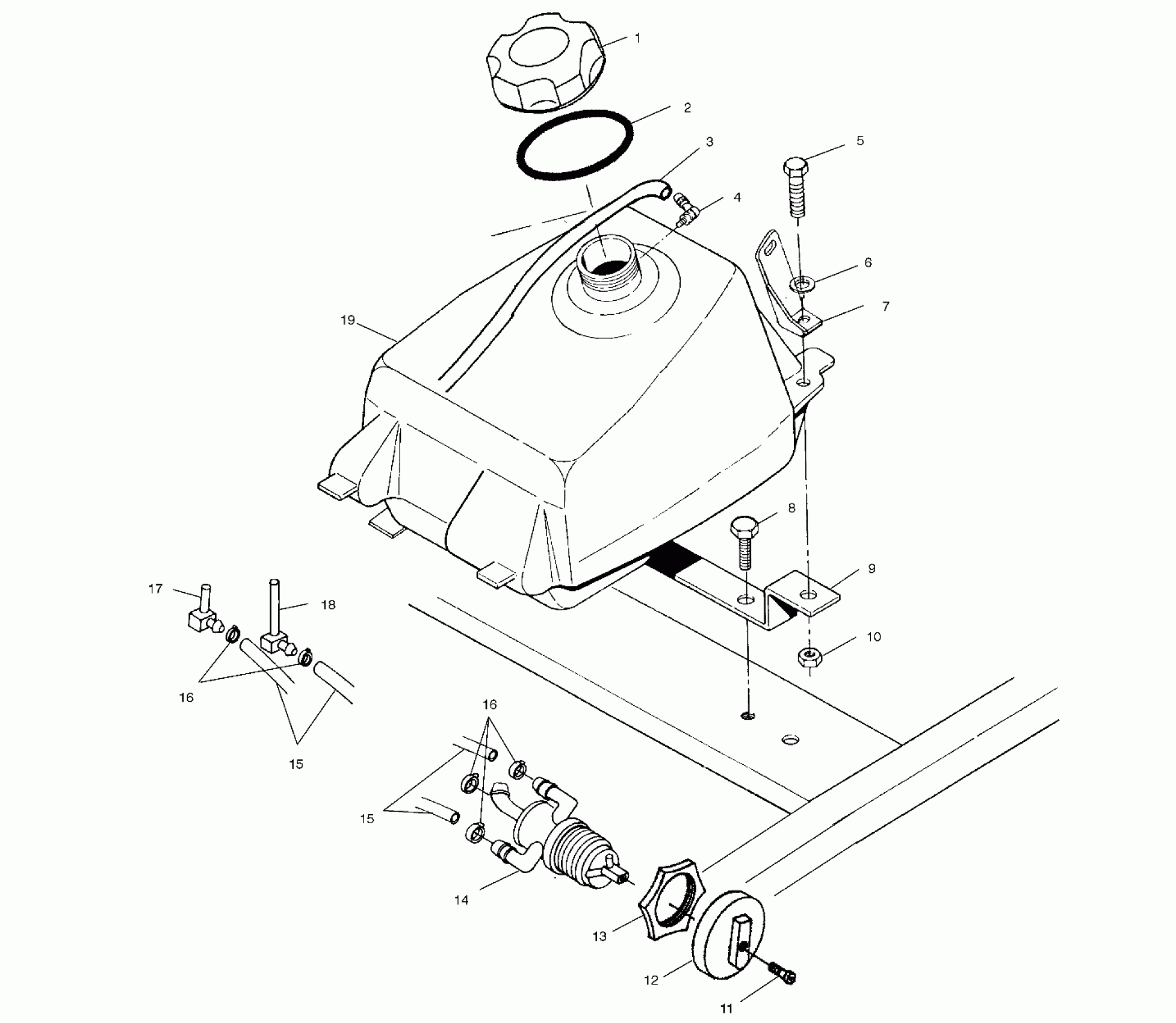

Polaris XPLORER 4X4 - A02CG25CA FUEL TANK - A02CG25CA (4969856985A09) Diagram

#

Description
Price

1

Cap, Gas Tank [Incl. 2]

5433687

$20.22

2

GASKET

5812123

$5.65

3

LINE, FUEL

8360009-600

Unavailable

4

Vent, Tank

5431053

$19.99

5

Bolt

7512310

$2.39

6

Washer, Flat

7555893

$1.49

7

Bracket, Mounting, Rear, LH

5222154-067

Unavailable

7

Bracket, Mounting, Rear, RH

5222155-067

Unavailable

8

Screw

7512208

$3.99

9

Bracket, Tank Mount, Rear

5220916-067

Unavailable

10

NUT-5/16-18 NYLOK-Y

7542324

$1.49

11

Screw

7517505

$1.59

12

Knob, Fuel Valve

5432559

$10.39

13

Nut, Fuel Valve

5432733

Unavailable

14

Valve, 3-Way

7052154

$39.99

15

Line, Fuel

8450040-600

Unavailable

15

Line, Fuel

8450040-600

Unavailable

16

HOSE CLAMP, RED

7080003

$1.49

16

HOSE CLAMP, RED

7080003

$1.49

17

Fitting, Fuel Outlet, Reserve

7052148

Unavailable

18

Fitting, Fuel Outlet, Main

7052147

Unavailable

19

Asm., Fuel Tank [Incl. 4,18]

1240123

$119.99
