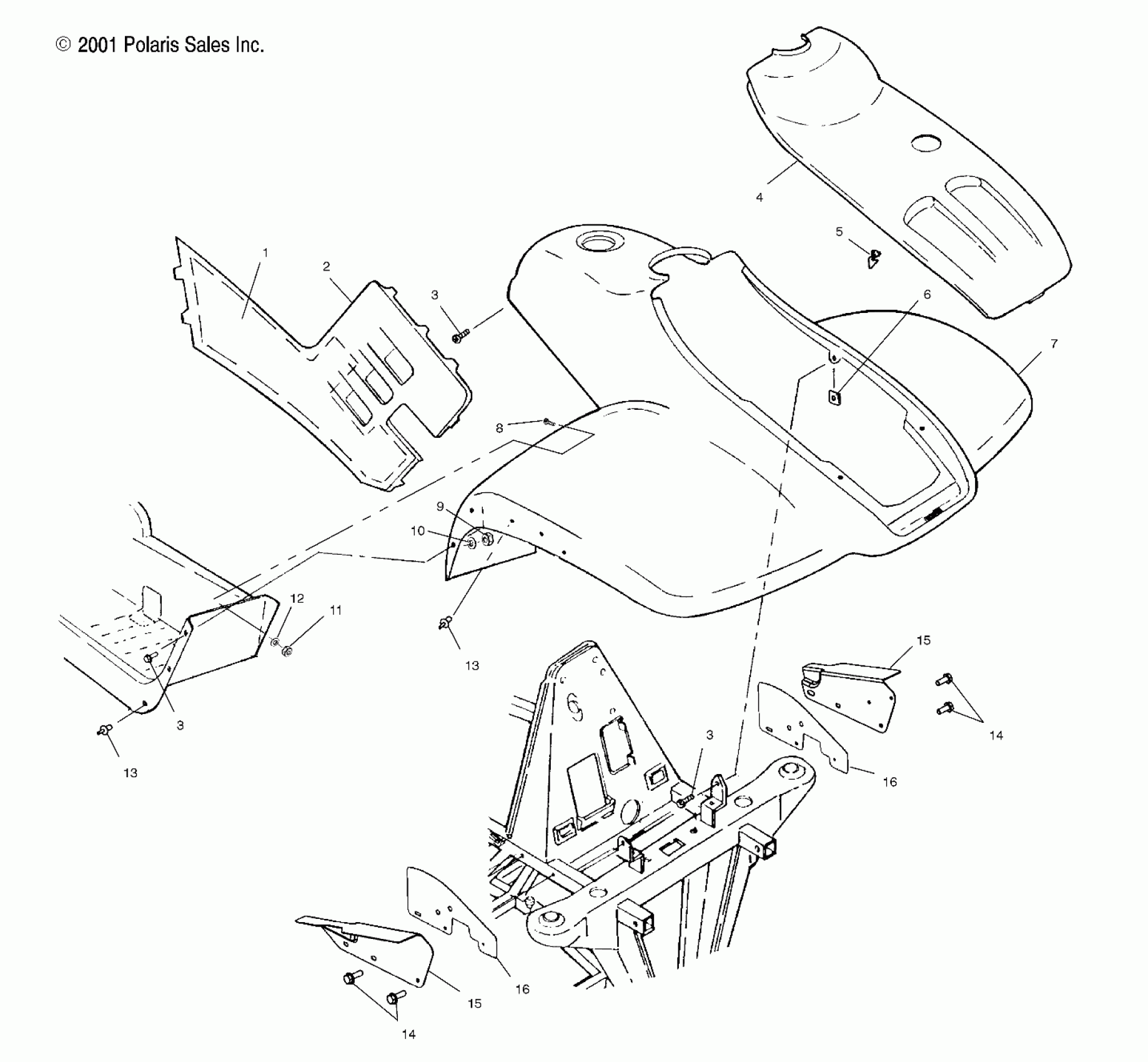

Polaris XPLORER 4X4 - A02CG25CA FRONT CAB - A02CG25CA (4969856985A03) Diagram

#

Description
Price

1

Foam, Panel, LH

5812138

$6.46

1

Foam, Side Panel, LH

5811797

$10.51

1

Asm., Panel/Foam, LH

2632284-195

$94.44

2

Foil, Foam, Side Panel

5810996

$56.65

2

Asm., Panel/Foil, RH

2620085-195

Unavailable

3

SCREW

7512232

$1.19

3

SCREW

7512232

$1.19

3

SCREW

7512232

$1.19

4

Cover, Front

5431806-195

$115.08

5

Clip, Spring

7670085

$12.34

6

NUT, U-TYPE SPEED

7670057

$1.19

7

Cab, Front [Incl. Warning Decals]

2632303-195

Unavailable

8

Screw

7512085

Unavailable

9

Nut, Nylok

7542122

$1.19

10

Washer, Flat

7555859

$1.19

11

Nut, Nylok

7541925

$0.79

12

WASHER

7555792

$4.76

13

Rivet

7081040

$1.19

13

Rivet

7081040

$1.19

14

CLIP-PLASTIC DART, NYLON

7670088

$1.59

14

CLIP-PLASTIC DART, NYLON

7670088

$1.59

15

Shield, Splash, RH

5245533-067

$15.56

15

Shield, Splash, LH

5245394-067

$15.56

15

Shield, Splash, RH

5245533-067

$15.56

15

Shield, Splash, LH

5245394-067

$15.56

16

Shield, Deflector

5811917

$7.38

16

Shield, Deflector

5811917

$7.38
