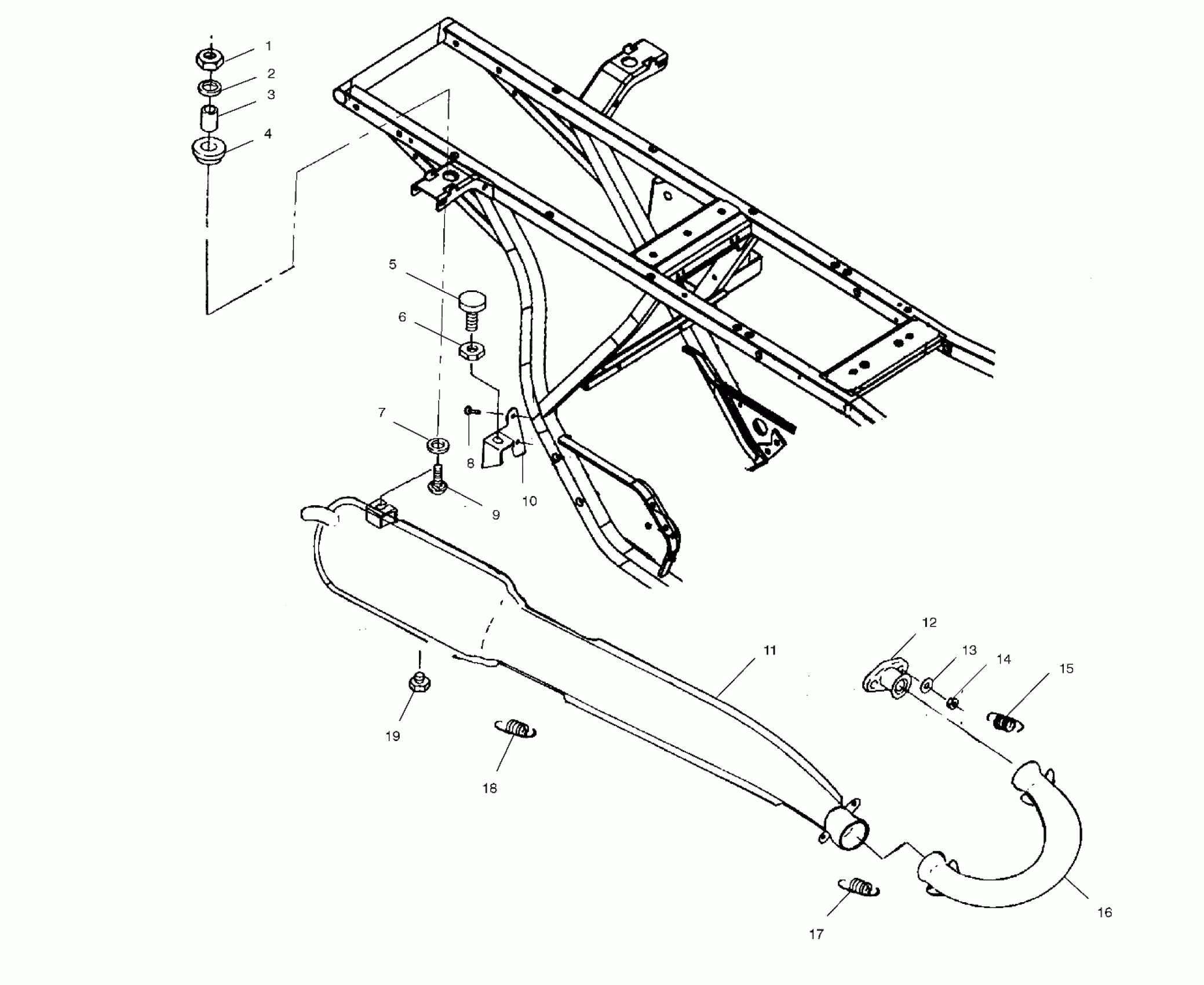

Polaris XPLORER 4X4 - A02CG25CA EXHAUST SYSTEM - A02CG25CA (4969856985A08) Diagram

Description

Price

NUT-5/16-18 NYLOK-Y

7542324

$0.79

WASHER, FLAT

7555716

$1.59

BUSHING

5010192

$6.35

Dampener, Vibration

5410241

$5.22

Mount, Torque Stop

3110064

Unavailable

NUT

7542301

$1.59

WASHER, RUBBER

5410436

$1.59

SCREW

7512232

$1.19

BOLT, CARRIAGE

7515316

$2.38

NUTSERT

7547101

$9.52

Bracket, Exhaust Mount

5243199-067

Unavailable

Muffler/Spark Arrester

1261022-029

Unavailable

Manifold, Straight

1260922-029

Unavailable

WASHER, LOCK [See Crankcase and Cylinder Pg. C8, Ref. 33]

----

Unavailable

NUT [See Crankcase and Cylinder Pg. C8, Ref. 34]

----

Unavailable

Spring, Exhaust

7042029

$5.65

Headpipe

1261060-029

$102.38

Spring, Exhaust

7042031

$6.46

Spring, Extension

7041769

$18.99

BOLT

7512666

$2.38
