Description

Price

1

NUT

7547108

$4.76

1

NUT

7547108

$4.76

1

NUT

7547108

$4.76

1

NUT

7547108

$4.76

1

NUT

7547108

$4.76

1

NUT

7547108

$4.76

1

NUT

7547108

$4.76

1

NUT

7547108

$4.76

2

WASHER, FLAT

7555823

$3.97

2

WASHER, FLAT

7555823

$3.97

2

WASHER, FLAT

7555823

$3.97

2

WASHER, FLAT

7555823

$3.97

3

Mount, Motor

3110026

$40.46

3

Mount, Motor

3110026

$40.46

4

Insulator, Motor Mount

5430802

$28.32

5

BOLT

7512315

$4.76

6

WASHER, SPRING LOCK

7552901

$1.19

7

Switch, Temperature, 260 Degrees

4010284

Unavailable

8

Bracket, Engine Mount, Top

5244119-067

Unavailable

9

Nut, FLEXLOC

7542103

$5.56

10

SCREW

7512232

$1.19

11

Cable, Ground, Engine, Small Hole

4010132

Unavailable

12

Spark Plug, NGK BR8ES

3070156

$3.97

13

Cable, Solenoid/Starter

4010129

Unavailable

14

Bolt

7512457

$3.97

15

Mount, Engine, Front

1040687-067

$15.56

16

BOLT

7512566

$33.24

17

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.76

18

WASHER-.440X1.25X.190 FL-Y

5210748

$3.97

19

BUSHING-.437 X.770 X.50

5430261

$7.14

20

ASM., DRIVE CLUTCH, BASIC ATV-08 [See Drive Clutch Pg. C3, Ref. 16]

----

Unavailable

21

SEAL, COVER, CASE [See Clutch Cover Pg. C5, Ref. 25]

----

Unavailable

22

Screw

7512490

$3.97

22

Screw

7512490

$3.97

23

Washer, Spring Lock

7552603

$0.79

23

Washer, Spring Lock

7552603

$0.79

24

Boot, Clutch Intake

5410421

$11.32

25

Clamp

7080511

$4.76

25

Clamp

7080511

$4.76

26

Bracket, Engine Mount, Front

5242896-067

$15.56

27

Engine, Short Block [EC25PFE5] NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization required for

3084717

Unavailable

28

Decal, Drain Recoil

7078577

Unavailable

29

Line, Fuel

8450040-600

Unavailable

29

Line, Fuel

8450040-600

Unavailable

29

Line, Fuel

8450040-600

Unavailable

29

Line, Fuel

8450040-600

Unavailable

30

VALVE, CHECK, VENT

7051011

Unavailable

31

Fitting, Tee

7052005

Unavailable

32

LINE, FUEL

8360009-600

Unavailable

33

Bracket, Engine Mount, Rear

5242897-067

Unavailable

34

Mount, Engine, Rubber

3110028

Unavailable

35

FILTER

2530009

$6.46

36

HOSE CLAMP, RED

7080003

$1.19

36

HOSE CLAMP, RED

7080003

$1.19

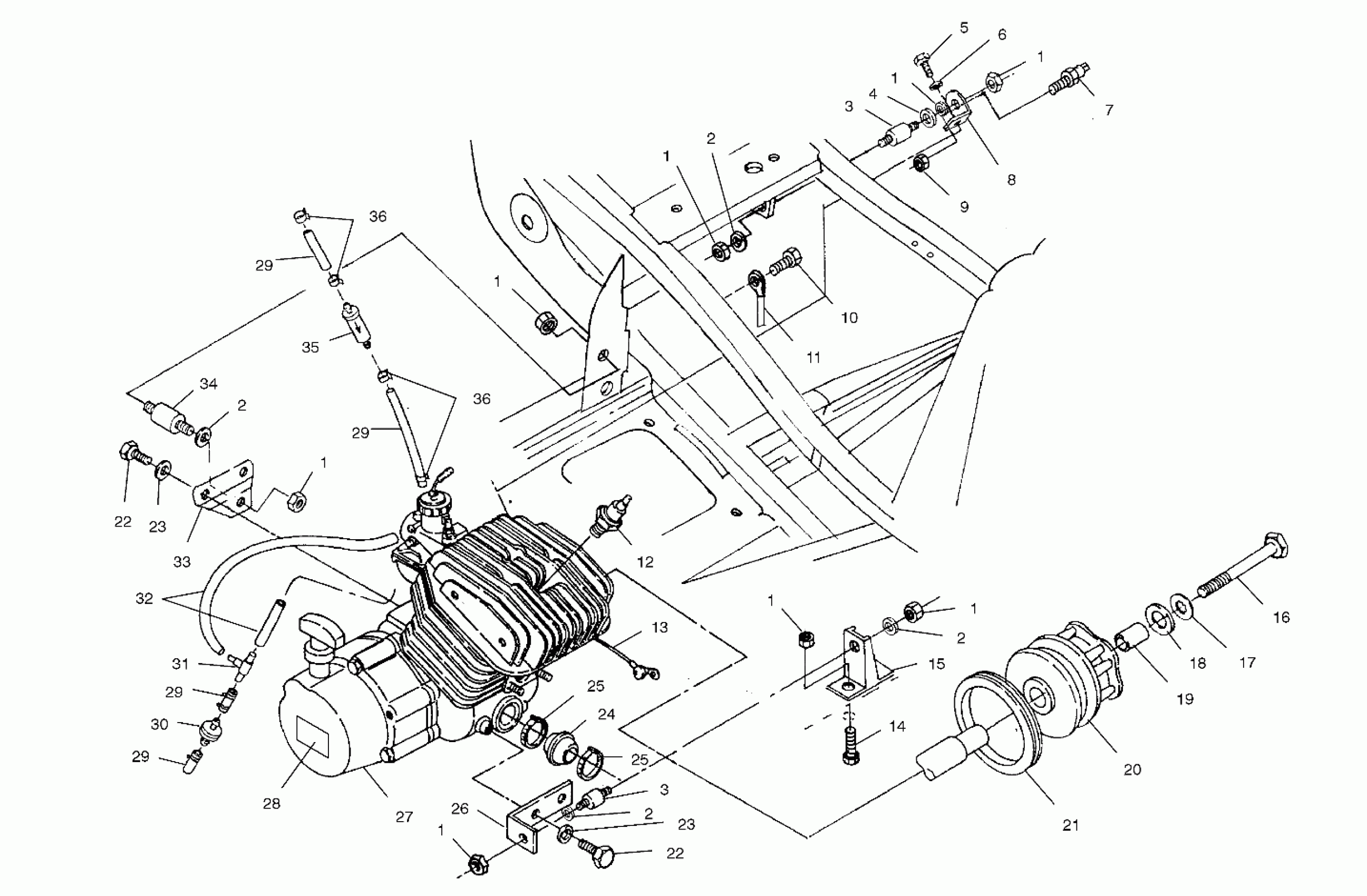

Polaris XPLORER 4X4 - A02CG25CA ENGINE MOUNTING - A02CG25CA (4969856985A07) Diagram
