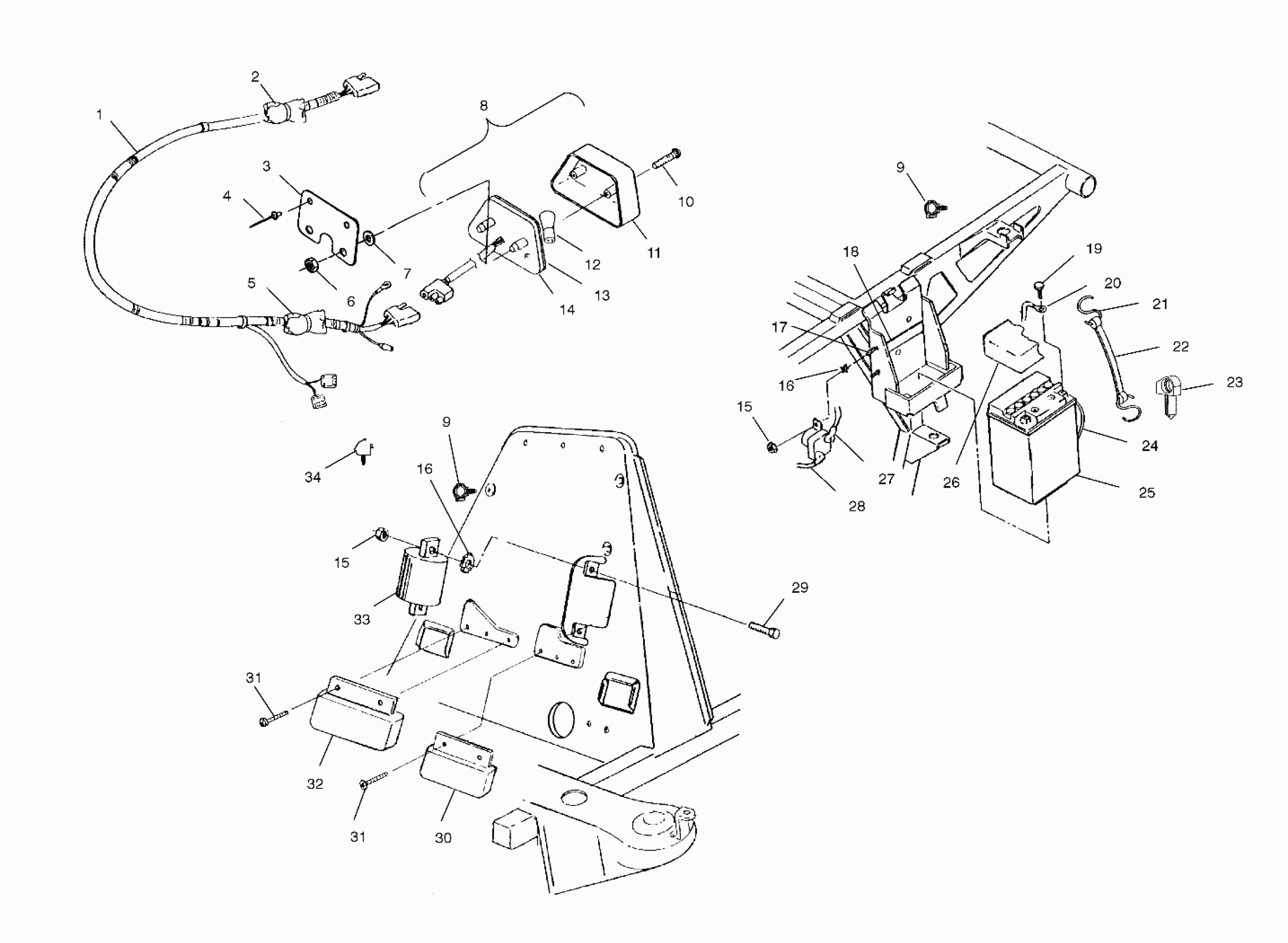

Polaris XPLORER 4X4 - A02CG25CA ELECTRICAL/TAILLIGHT - A02CG25CA (4969856985C06) Diagram

#

Description
Price

1

Harness, Main

2460941

Unavailable

2

Kit, Circuit Breaker

2201795

$72.84

3

Insulator, Taillight

5211391-067

$13.39

4

Rivet

7621470

Unavailable

5

Kit, Circuit Breaker, 20 AMP

2200593

$68.79

6

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.19

7

WASHER, NYLON

7555916

$1.59

8

Asm., Taillight w/Brake Light [Incl. 11-6]

2432034

$55.56

9

Clip, Rosebud

4020149

$6.35

9

Clip, Rosebud

4020149

$6.35

10

Screw, Taillight

4032029

$4.76

11

Lens, Taillight

4032046

$32.37

12

Bulb, Taillight

4030043

$6.46

13

Gasket, Taillight

4032045

$4.03

14

Backing, Taillight/Brake Light

4032064

$83.33

15

Nut, Nylok

7541925

$0.79

15

Nut, Nylok

7541925

$0.79

16

Washer

7571602

$4.76

16

Washer

7571602

$4.76

17

Screw

7512027

$1.19

18

PAD-BATTERY

5810290

$7.27

19

Kit, Battery Bolt [Short]

2200361

Unavailable

20

Cable, Battery/Engine

4010095

Unavailable

21

Hook, Battery Strap

7010032

$1.59

22

Strap, Battery Holddown

5410424

$4.84

23

Clip

7670102

$2.38

24

Tube, Battery Vent

5432077

Unavailable

25

Battery

4140006

$99.99

26

Cover, Battery

5431769

$15.37

27

Cable, Battery/Solenoid

4010094

Unavailable

28

Cable, Solenoid/Starter

4010129

Unavailable

29

BOLT

7512007

$3.97

30

Rectifier, Regulator, LR39-1

4060208

Unavailable

31

SCREW

7512024

$4.76

31

SCREW

7512024

$4.76

32

Limiter

4010188

Unavailable

33

COIL, IGNITION [See Magneto Pg.C10, Ref. 16]

----

Unavailable

34

CLIP, ROUTING

7670109

$2.38
