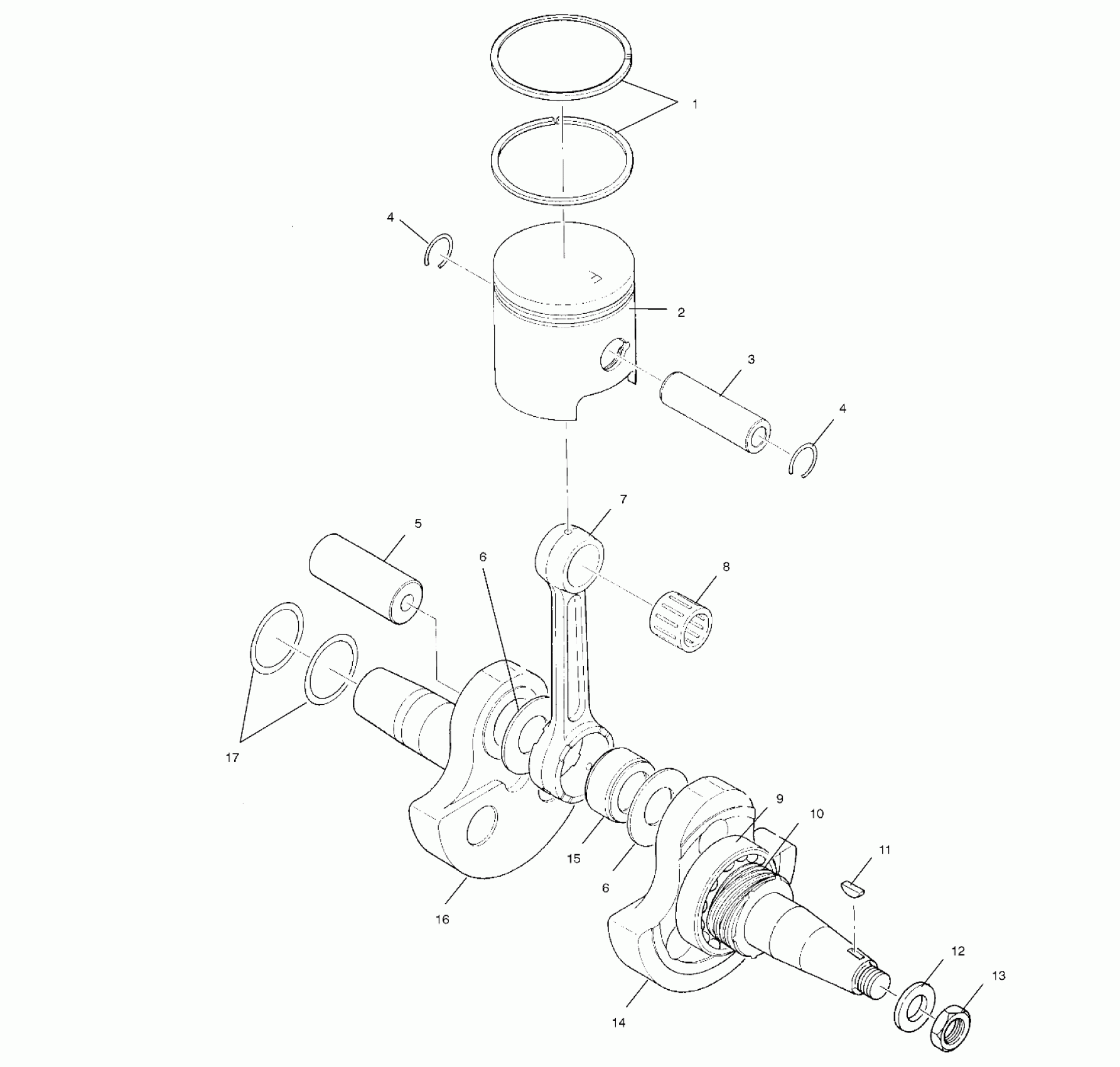

Polaris XPLORER 4X4 - A02CG25CA CRANKSHAFT and PISTON - A02CG25CA (4969856985C09) Diagram

#

Description
Price

1

Ring, Piston [Std.]

3083546

Unavailable

1

Ring, Piston [0.50]

3083717

$28.56

1

Ring, Piston [1.00]

3083974

$31.99

1

Ring, Piston [0.25]

3083678

Unavailable

2

SET,PISTON,.040"/1.00MM O/S* [1.00mm/.04in O/S]

3083972

Unavailable

2

Piston [Std.]

3083942

Unavailable

2

Piston [0.50]

3083944

Unavailable

2

Piston [0.25]

3083943

Unavailable

3

Pin, Piston

3083838

$27.99

4

Clip, Piston Pin

3083839

$4.75

4

Clip, Piston Pin

3083839

$4.75

5

Crank Pin 2

3082796

$36.41

6

Spacer, Crank Pin

3083804

$19.99

6

Spacer, Crank Pin

3083804

$19.99

7

Rod, Connecting

3082790

Unavailable

8

Bearing, End, Small

3083626

Unavailable

9

Bearing, Ball

3084580

$31.99

10

Gear, Crankshaft [O/I]

3083745

Unavailable

11

Key, Woodruff

3080130

Unavailable

12

WASHER

3086767

Unavailable

13

NUT, LOCK

3083905

Unavailable

14

Asm., Crankshaft [Incl. 5-7,9,10,14-16]

3087056

$782.99

14

Crankshaft 1

3083899

$329.99

15

Bearing, End, Large

3083803

Unavailable

16

Crankshaft 2

3085891

$233.95

17

Spacer 3

3085892

Unavailable

17

Spacer 1

3086765

Unavailable
