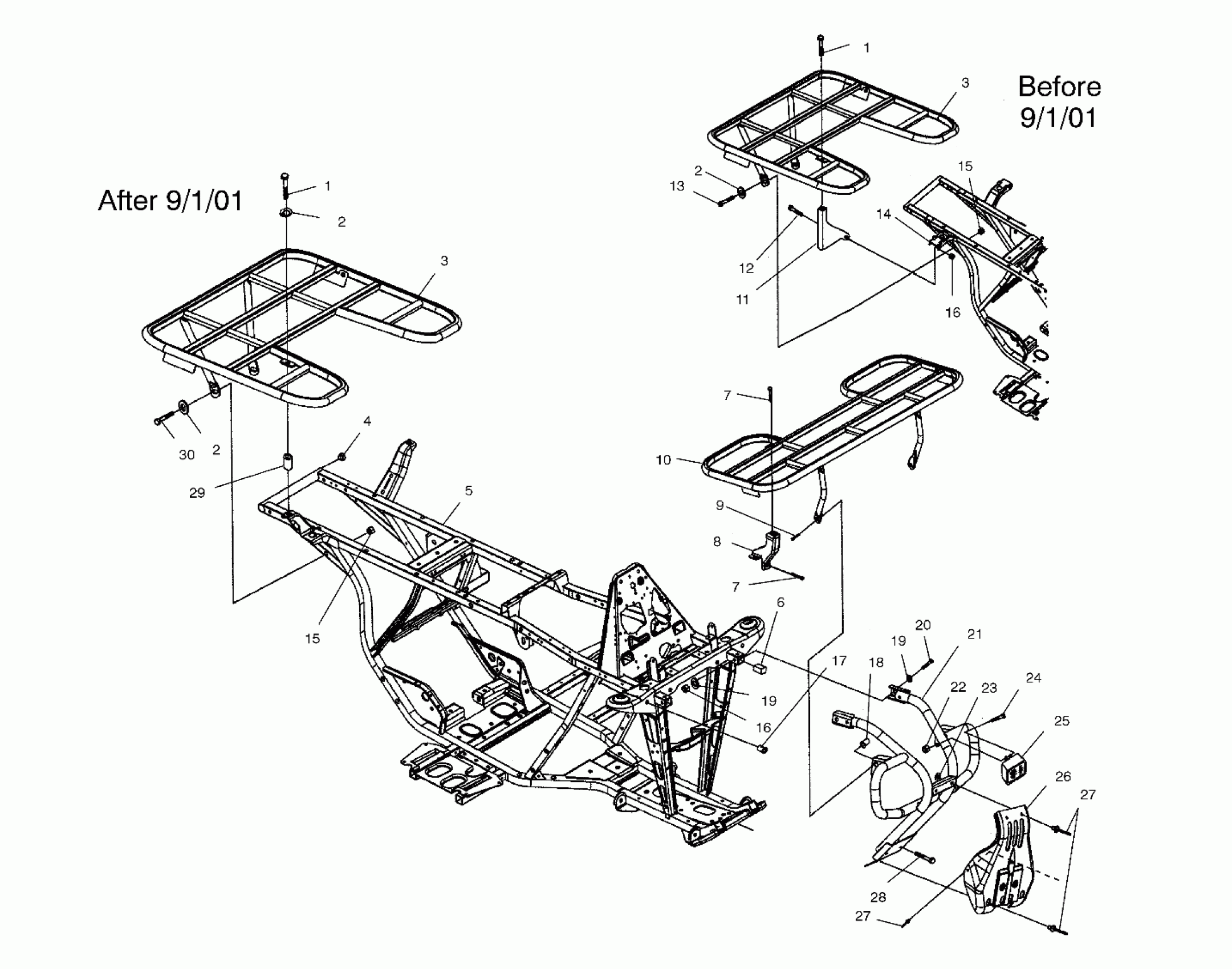

Polaris XPLORER 4X4 - A02CG25CA BUMPER and RACK MOUNTING - A02CG25CA (4969856985A05) Diagram

#

Description
Price

1

Bolt

7517977

Unavailable

1

Bolt

7517977

Unavailable

2

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

2

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

2

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

3

Rack, Rear [If built after 9/17/01]

1013834-067

Unavailable

3

Rack, Rear [If built before 9/17/01]

1013682-067

Unavailable

3

Rack, Rear [If built after 9/17/01]

1013834-067

Unavailable

3

Rack, Rear [If built before 9/17/01]

1013682-067

Unavailable

4

Plug, End Cap

5432831

$5.65

5

Frame, Main

1013643-067

Unavailable

6

PLUG, FRAME

5810467

Unavailable

7

SCREW

7512232

$1.19

7

SCREW

7512232

$1.19

8

Support, Front Rack, LH

1013744-067

Unavailable

8

Support, Front Rack, RH

1013746-067

$94.99

9

SCREW

7515399

$1.19

10

Rack, Front

2632467-067

Unavailable

11

Mount, Rear Rack, Front, LH [Before 9/1/01]

1040524-067

Unavailable

11

Mount, Rear Rack, Front, RH [Before 9/1/01]

1040525-067

Unavailable

12

Screw [Before 9/1/01]

7515385

$5.56

13

Screw [Before 9/1/01]

7517686

$1.59

14

Spacer [Before 9/1/01]

5333332-067

$6.59

15

Nut, Flange

7542321

$1.19

15

Nut, Flange

7542321

$1.19

16

NUT-5/16-18 NYLOK-Y [Qty 4 Before 9/1/01]

7542324

$0.79

16

NUT-5/16-18 NYLOK-Y [Qty 4 Before 9/1/01]

7542324

$0.79

17

Nutsert

7547069

$3.97

18

NUTSERT

7547101

$9.52

19

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

19

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

20

Bolt

7512329

$3.97

21

Bumper, Front

1013674-067

Unavailable

22

Nut, Nylok

7542122

$1.19

23

WASHER

7555827

$3.97

24

SCREW

7515189

$1.19

25

Asm., Headlight

2410285

Unavailable

26

Plate, Skid, Bumper

5432378-070

$109.99

27

Rivet

7661121

Unavailable

27

Rivet

7661121

Unavailable

28

SCREW

7515399

$1.19

29

Spacer [After 9/1/01]

5334092

Unavailable

30

Screw [After 9/1/01]

7512329

$3.97
